MONEL 400 Sheet/Wire Mesh/Pipe Fittings Suppliers, ASTM b127
Monel 400® is a nickel-copper alloy (about 23% Cu–67% Ni ) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Monel 400® Wire Mesh is a solid solution alloy that can only be hardened by cold working.
Monel Alloy exhibits characteristics like good weldability, good corrosion resistance and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. Monel 400® Plate is particularly resistant to hydrofluoric and hydrochloric acids when they are de-aerated. As would be expected from its high copper content, Monel 400 Wire is rapidly attacked by nitric acid and ammonia systems.
Monel 400® is a nickel-copper alloy that is hardened by cold working only. Monel 400® Sheet has low corrosion rate in flowing seawater, therefore it is widely used in marine applications. Monel 400® Wire mesh also has excellent resistance to stress corrosion cracking in most freshwaters. Monel 400® Fittings can be used in temperatures up to 1000 º F. The alloy has great mechanical properties at subzero temperatures.

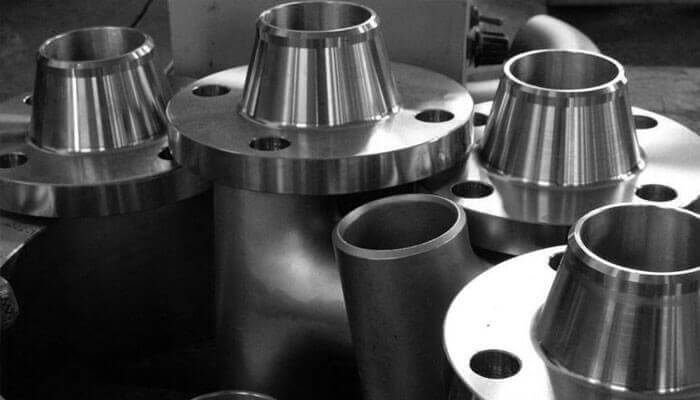

Gulf Oil & Gas International specializes in available forms are Monel-400 Seamless Pipe, Monel-400 Welded Pipe,Monel-400 Seamless Tube,Monel-400 Welded Tube, Monel-400 Round Bars,Monel-400 Wire,Monel-400 Sheet,Monel-400 Plate., Monel-400 Forgings,Monel-400 Pipe Fittings and Monel-400 Flanges
Chemical Analysis of MONEL 400 Sheet/Wire Mesh/Pipe Fittings Suppliers, ASTM b127/UNS N04400
|0.3 max||2.0 max||0.02 max||0.024 max||0.5 max||63.0 max||28-34 max||2.5 max|
Specification of MONEL 400 Sheet/Wire Mesh/Pipe Fittings Suppliers, ASTM b127
|Sheet / Plate||ASME SB-127 / AMS 4544|
|Round Bar||ASME SB-164 / QQ-N-281|
|Pipe||ASME SB-165 / ASME SB-829 / ASME SB-775 / ASME SB-725|
|Tube||ASME SB-165 / ASME SB-163 / ASME SB-730 / ASME SB-751|
Mechanical Properties of MONEL 400 Sheet/Wire Mesh/Pipe Fittings Suppliers, ASTM b127
|Product Form||Condition||Tensile (ksi)||.2% Yield (ksi)||Elongation (%)||Hardness (HRB)|
|Rod & Bar||Annealed||75-90||25-50||60-35||60-80|
|Rod & Bar||Cold-Drawn Stress Relieved||84-120||55-100||40-22||85-20 HRC|
|Tube & Pipe Seamless||Annealed||70-85||25-45||50-35||75 max *|
All trademarks used in these documents are the trademarks or service marks of their respective owners. Names are listed solely for reference to help identify products consistent with listed specifications Specifically. Nickel 200/201, Monel, Inconel and Incoloy are registered trademarks of Inco Alloys/Special Metals. Hastelloy is a registered trademark of Haynes International. Gulf Oil & Gas International FZE is not affiliated with any manufacturers. The data herein is for information only. It is not intended for design or engineering purposes. All information is deemed to be correct, and any error or omission is regretted.
