Hand Stacker Series

pi controls
images113
images114
images115
images116

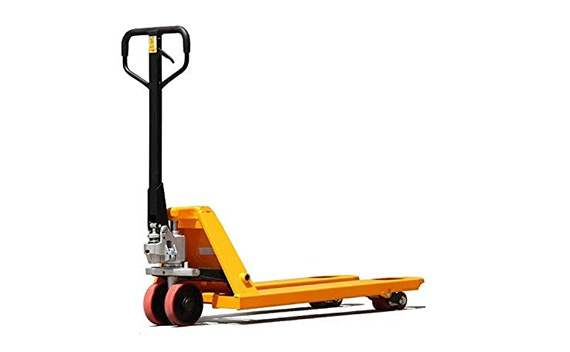

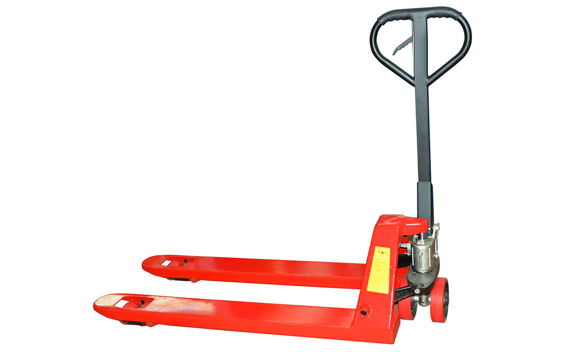

The Hand Parllet Truck is the ideal “Storage aid” and “handling partner” for all manual transport tasks over short distances, excellently suitable for use on lorries, in small warehouses and markets etc. One piece cast pump with reliable oil-proof hydraulic systems. Reinforced for added strength of load capacity. Effortiess paliet entry/exit rellers to make it easier to push and pull pallet truck Handle.

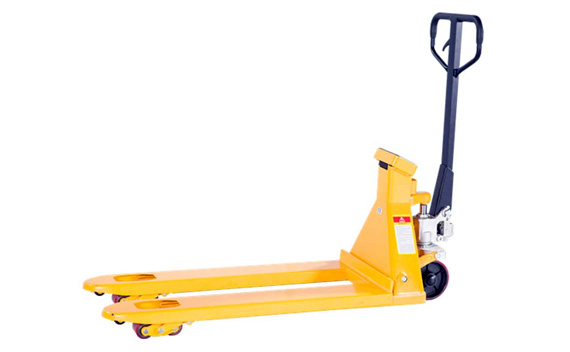

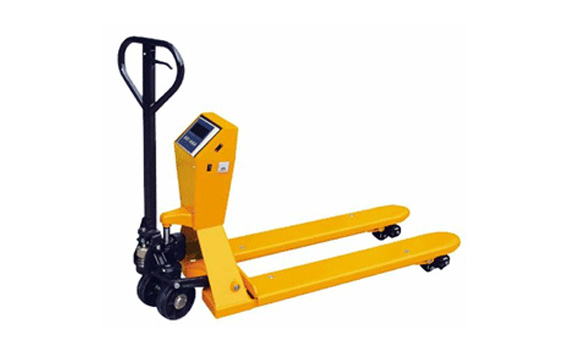

Pallet Truck with Scale.

Pallet Truck with scale. Capacity : 2000Kg/ 2500Kg./3000 Kg. Measure weight in pounds or Kilograms. Measure in 0.5 kg step. Tolerance : +/‐ 0.5Kg. Owered by 1.5 AA Battery. Keypad and automatic tare functions.

Hand Pallet Truck with scale is an excellent economic solution for all weighing requirements in a busy warehouse environments, which allows you to weigh cargo where you want and when you want.

Hand Pallet Truck

pi controls
Model
SAM ‐ COY AC 2.0
SAM ‐ COY AC 2.5
SAM ‐ COY AC 3.0
Capacity (Kg)
2000
2000
3000
Min. fork height (mm)
65/85/75
65/85/75
65/85/75
Max.fork height (mm)
175/195/185
175/195/185
175/195/185
Lifting height (mm)
110
110
110
Fork length (mm)
1150/1220
1150/1220
1150/1220
Single fork width (mm)
160
160
160
Width overall forks (mm)
550/685
550/685
550/685
Fork wheel‐single (mm)
80 x 93 x 74 x 93
80 x 93 x 74 x 93
80 x 93 x 74 x 93
Fork wheel ‐ tandem (mm)
80 x 70
80 x 70
80 x 70
Steering Wheel (mm)
180 x 50
180 x 50
180 x 50
Self weight (kg)
73‐92
Oty/20 feet container (pcs)
180/144
180/144
180/144

Pallet Truck With Scale

pi controls
Model
SAM ‐ COY ‐ CW
Capacity (Kg)
1500/2000/2500/3000
Total lift height (mm)
195
Lowered fork height (mm)
85
Fork length (mm)
1150/1220
Width overall forks (mm)
550/685
Steering wheel (mm)
Q 180 x 50
Fork wheel (mm)
Q 80 x 70
Truck weight (Kg)
120‐130

Hand Stacker Series

pi controls
images117
images118
images119
images120

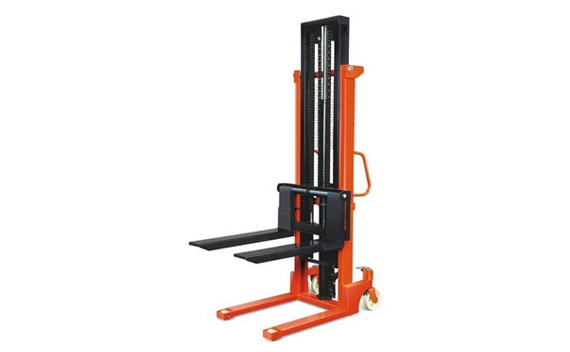

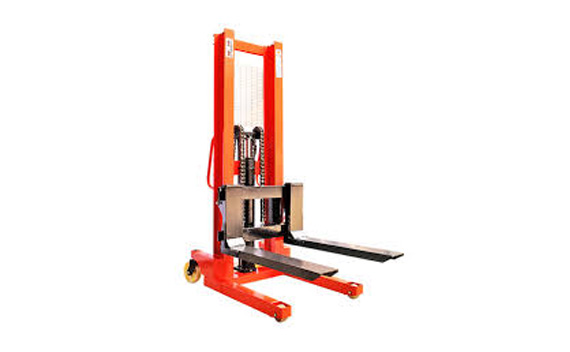

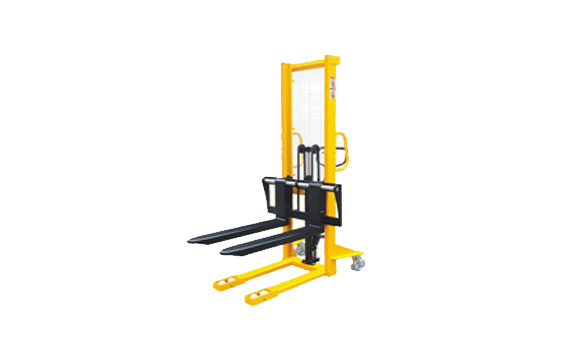

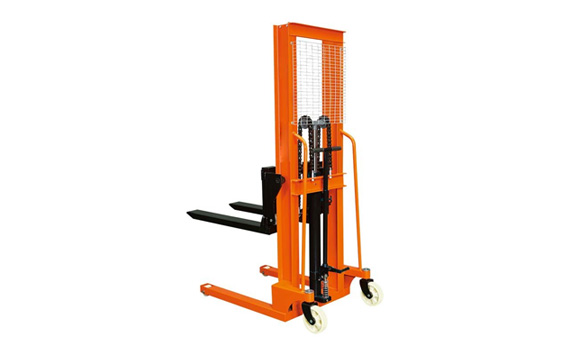

Hand stacker is hand push & hand lift stacker which provides cost‐effective handling for both vehicle loading and production areas. Easy maintenance and low running costs. Adjustable forks to co‐ordinate with different requirements,Ergonomic rubber handle ensures a comfortable easy operation,Effortless and quick lifting for using foot pedal without loads.

Hand stacker is hand push & hand lift stacker which provides cost‐effective handling for both vehicle loading and production areas. Easy maintenance and low running costs. Rebust steel profile construction. Sturdy and compact enough to fit through standard door and to operate in congested areas. Lifting function operated by foot and hand controls. Allow the operator to work without having to perform extreme body movements. Comfortable handle to ensure easy pulling with long tiller & Safe parking in any situation.

Hand Stacker CTY-A

pi controls
Model
SAM ‐ CTY‐A1.0
SAM ‐ CTY-A2.0
SAM ‐ CTY-A3.0
Rated lifting capacity (Kg)
1000
2000
3000
Max. lifting height (mm)
1600
1600
1600
Lowered height of forks (mm)
100
100
100
Fork length (mm)
900
900
1000
Adjustable width of forks (mm)
200-580
240-680
300-770
Lifting speed (mm/stroke)
20
14
10
Lowering speed (mm/stroke)
Controllable
Controllable
Controllable
Outer width of front legs (mm)
720
740
750
Operation power of crank (Kg)
24
32
40
Min. refuel volume for fuel tank (L)
1.6
2.0
3.0
Front wheel size (mm)
Q 100 x 50
Q 100 x 50
Q 100 x 50
Rear wheel size (mm)
Q 180 x 50
Q 180 x 50
Q 180 x 50
Overall size (mm)
2050 x 730 x 1380
2050 x 740 x 1480
2050 x 740 x 1650
Self weight (Kg)
115
180
280

Hand Stacker CTY-E

pi controls
Model
SAM ‐ CTY‐E 1.0
SAM ‐ CTY‐E 2.0
SAM ‐ CTY‐ E 3.0
Rated lifting capacity (Kg)
1000
2000
3000
Max. lifting height (mm)
1600
1600
1600
Lowered height of forks (mm)
100
100
100
Fork length (mm)
900
900
1000
Adjustable width of forks (mm)
200-580
240-680
300-770
Lifting speed (mm/stroke)
20
14
10
Lowering speed (mm/stroke)
Controllable
Controllable
Controllable
Outer width of front legs (mm)
720
740
750
Operation power of crank (Kg)
24
32
40
Min. refuel volume for fuel tank (L)
1.6
2.0
3.0
Front wheel size (mm)
Q 100 x 50
Q 100 x 50
Q 100 x 50
Rear wheel size (mm)
Q 180 x 50
Q 180 x 50
Q 180 x 50
Overall size (mm)
2050 x 730 x 1380
2050 x 740 x 1480
2050 x 740 x 1650
Self weight (Kg)
115
180
280
