Temperature - Resistance Temperature Detector - Standard
PI-R101
PI Controls Europe - Industrial RTD assembly, with Nipple connection
Resistance Temperature Detector - Standard
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS
PI-R102
PI Controls Europe - Industrial RTD assembly, with NUN connection
Resistance Temperature Detector - Standard
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS
PI-R103
PI Controls Europe - Industrial RTD assembly, with Fixed connection
Resistance Temperature Detector - Standard
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS
PI-R104
PI Controls Europe - Industrial RTD assembly, with Adjustable connection
Resistance Temperature Detector - Standard
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
Temperature - Resistance Temperature Detector - Sensor / Spare-inserts
PI-R201
PI Controls Europe - RTD sensor, with transition joint
Resistance Temperature Detector - Sensor / Spare-inserts
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS

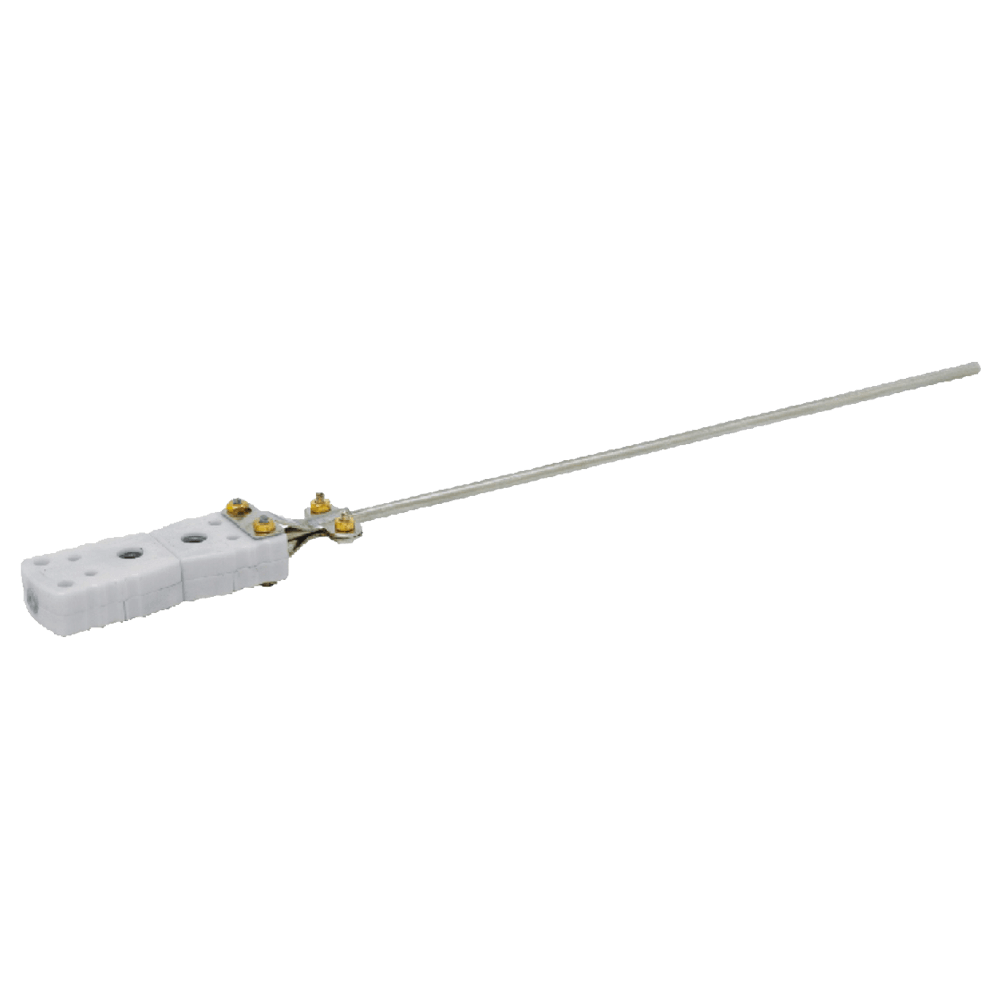

PI-R202
PI Controls Europe - RTD sensor, with plug & jack connector
Resistance Temperature Detector - Sensor / Spare-inserts
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex
- Wire combination :3 Wire
- Sheath material :AISI 316 SS / AISI 316L SS

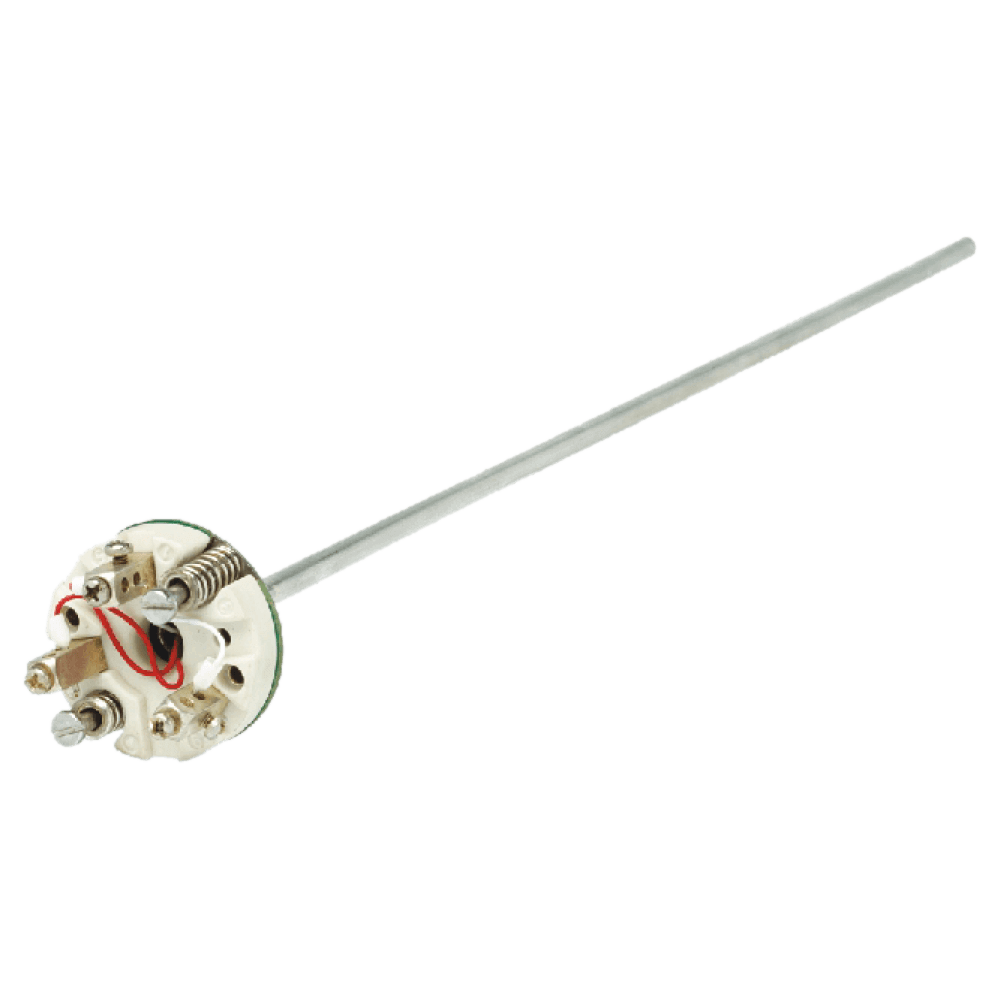

PI-R203
PI Controls Europe - RTD spare-insert, with spring loaded terminal block
Resistance Temperature Detector - Sensor / Spare-inserts
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire

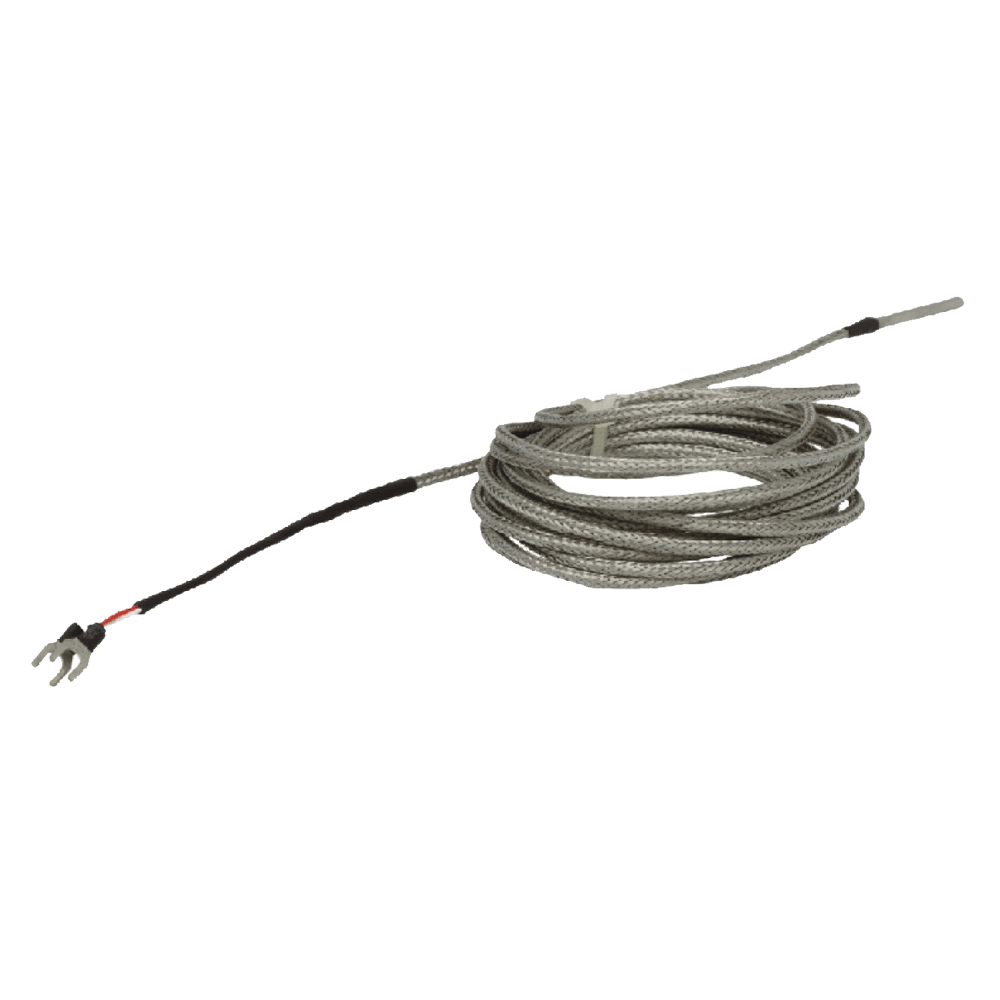

PI-R204
PI Controls Europe - RTD insert, for bearing temperature measurement
Resistance Temperature Detector - Sensor / Spare-inserts
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS
Temperature - Resistance Temperature Detector - Customized

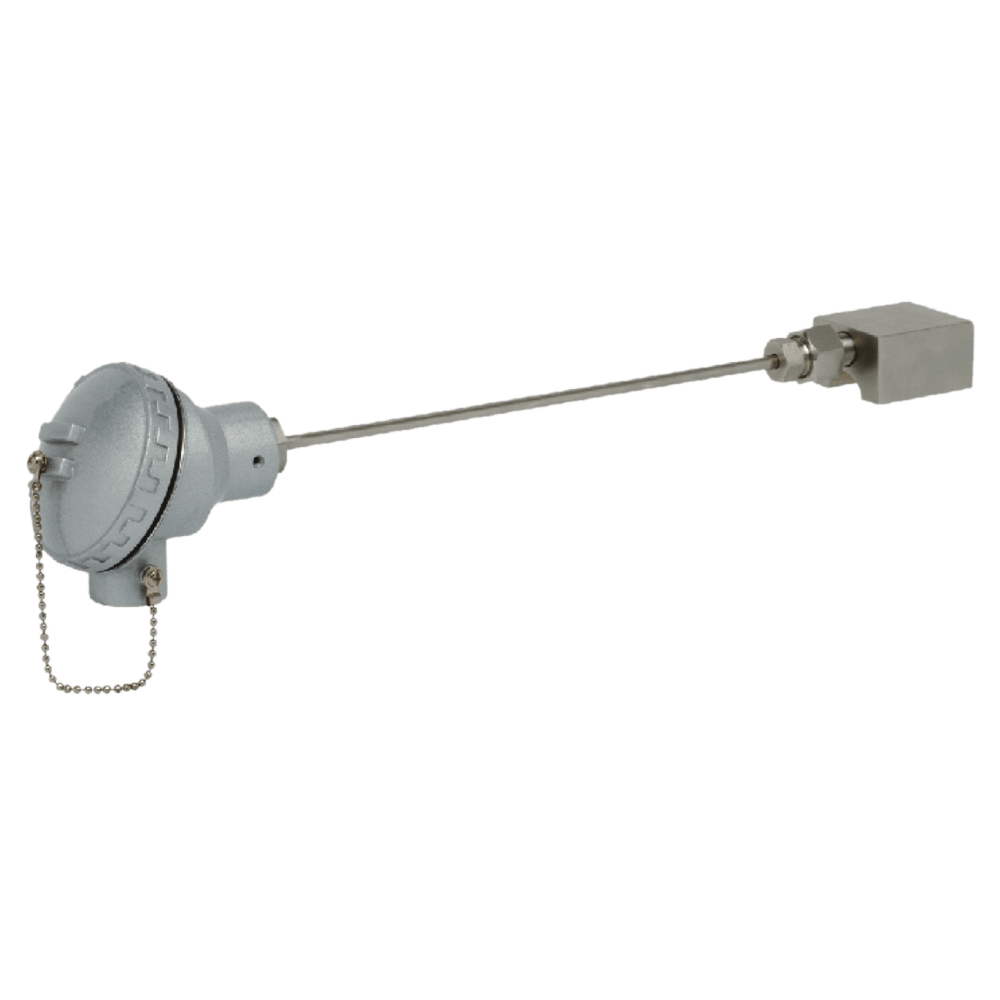

PI-R301
PI Controls Europe - Surface-mount RTD assembly, Weld-pad mounting
Resistance Temperature Detector - Customized
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS
PI-R302
PI Controls Europe - RTD assembly with protection tube, threaded connection
Resistance Temperature Detector - Customized
- Element :Pt-100, class A/ Pt-100, class B
- Protecting tube material :AISI 304 SS
- Sheath material :AISI 316 SS / AISI 316L SS
- Sheath Diameter: 3.0 mm to 8.0 mm

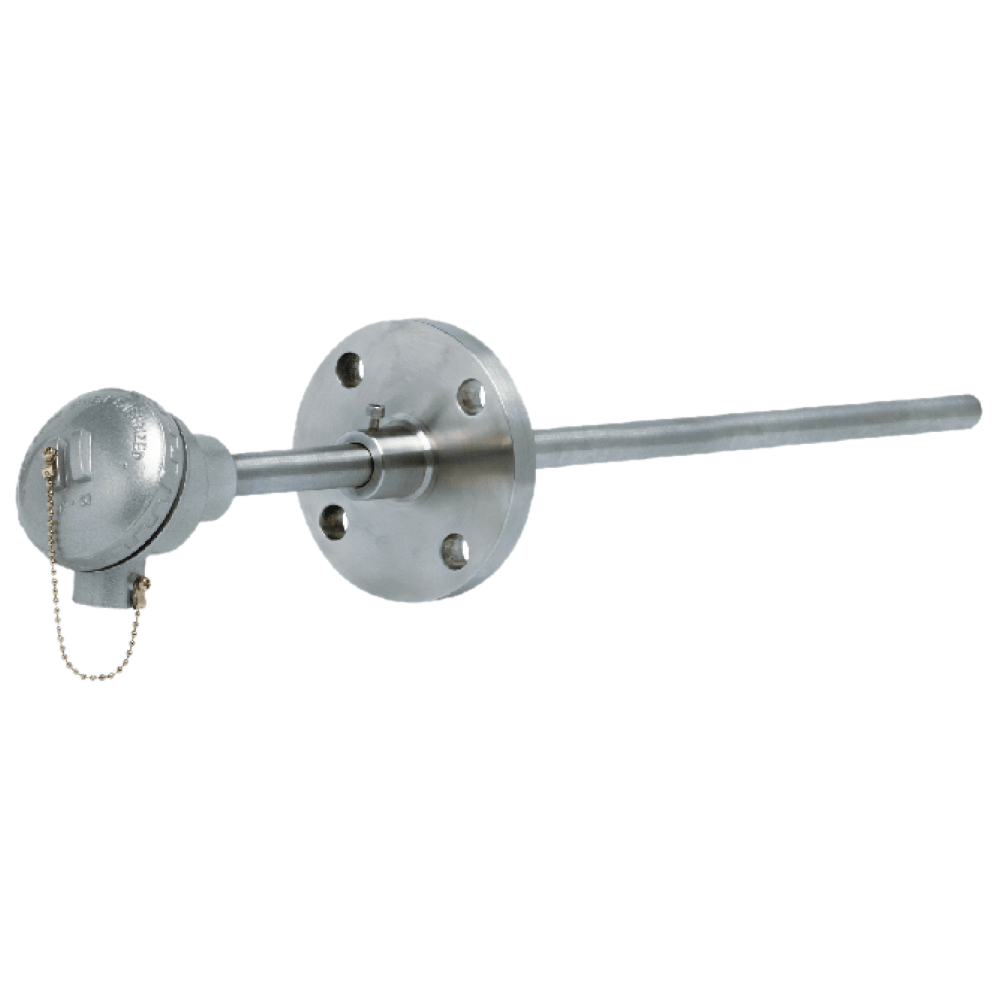

PI-R303
PI Controls Europe - RTD assembly with protection tube, flanged connection
Resistance Temperature Detector - Customized
- Element :Pt-100, class A/ Pt-100, class B
- Wire Combination :Simplex / Duplex with 2 or 3 or 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS
PI-R304
PI Controls Europe - Hygienic RTD assembly, Tri-clamp connection
Resistance Temperature Detector - Customized
- Element :Pt-100, class A/ Pt-100, class B (Others on request)
- No. of Sensors :Simplex / Duplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :AISI 316 SS / AISI 316L SS
PI-R305
PI Controls Europe - RTD sensor, for Stator Winding application
Resistance Temperature Detector - Customized
- Element :Pt-100, class A/ Pt-100, class B
- No. of Sensors :Simplex
- Wire combination :2 Wire /3 Wire / 4 Wire
- Sheath material :Epoxy fiber glass
- Sheath width :7 to 25 mm
Temperature - Thermocouples - Standard

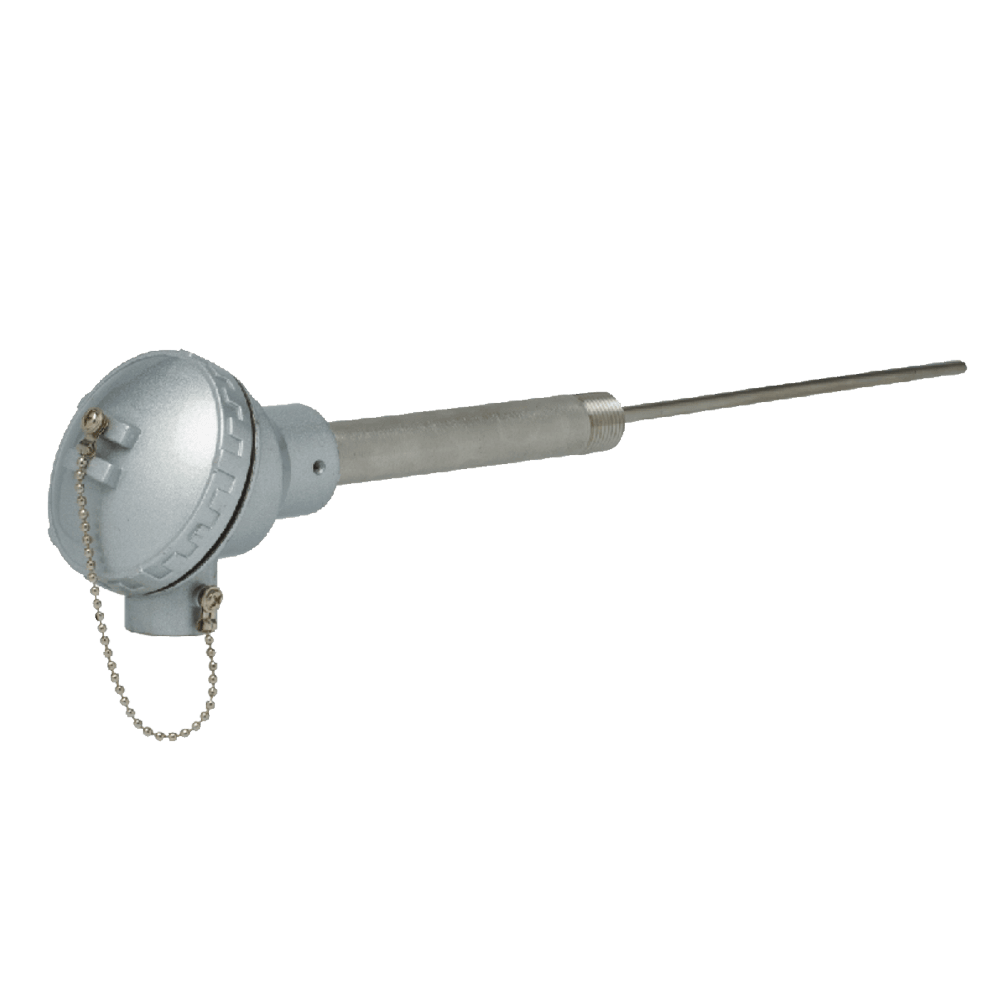

PI-T101
PI Controls Europe - Industrial Thermocouple assembly, with Nipple connection
Thermocouples - Standard
- Element :K / J / N / E / T / R / S / B
- Accuracy :Standard to ISA & ANSI MC96.1
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
PI-T102
PI Controls Europe - Industrial Thermocouple assembly, with NUN connection
Thermocouples - Standard
- Element :K / J / N / E / T / R / S / B
- Accuracy :Standard to ISA & ANSI MC96.1
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
PI-T103
PI Controls Europe - Industrial Thermocouple assembly, with Fixed connection
Thermocouples - Standard
- Element :K / J / N / E / T / R / S / B
- Accuracy :Standard to ISA & ANSI MC96.1
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
PI-T104
PI Controls Europe - Industrial Thermocouple assembly, with Adjustable connection
Thermocouples - Standard
- Element :K / J / N / E / T / R / S / B
- Accuracy :Standard to ISA & ANSI MC96.1
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded

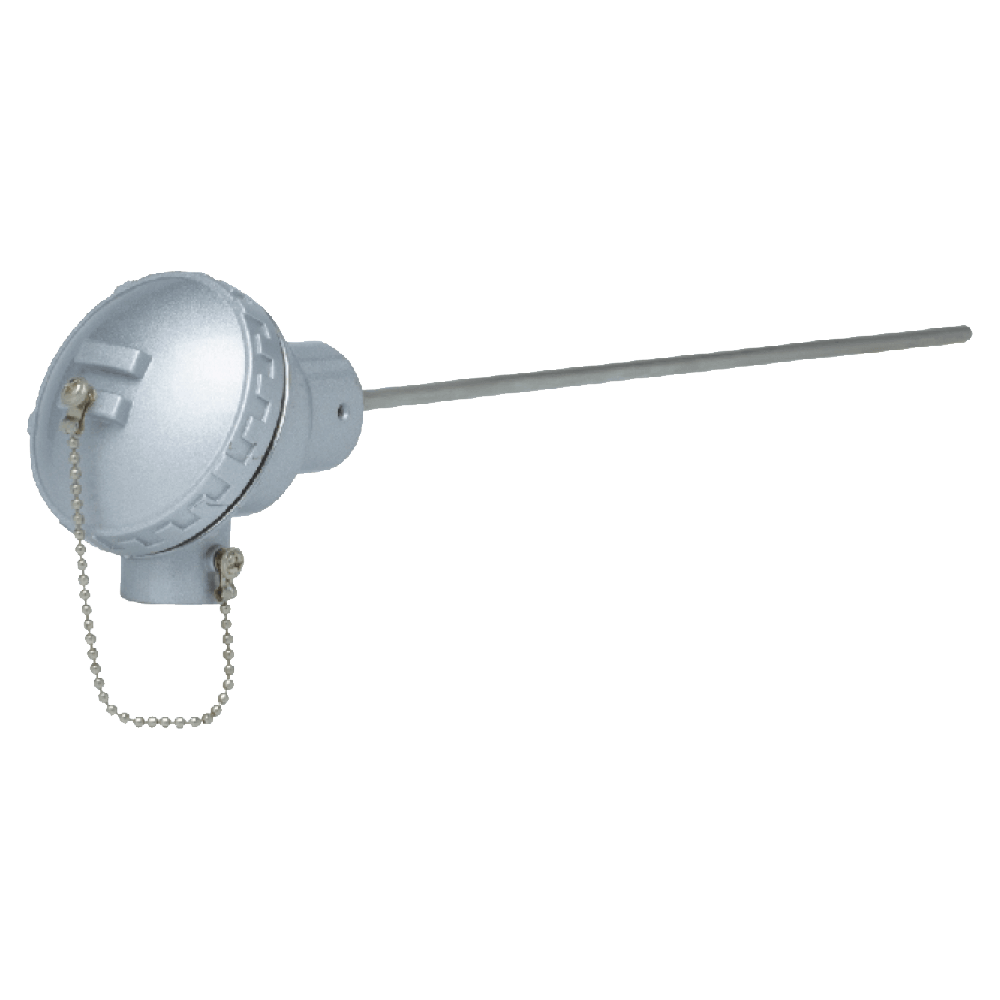

PI-T105
PI Controls Europe - Industrial Thermocouple assembly, with Terminal head
Thermocouples - Standard
- Element :K / J / N / E / T / R / S / B
- Accuracy :Standard to ISA & ANSI MC96.1
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
Temperature - Thermocouples - Sensor/Spare-inserts

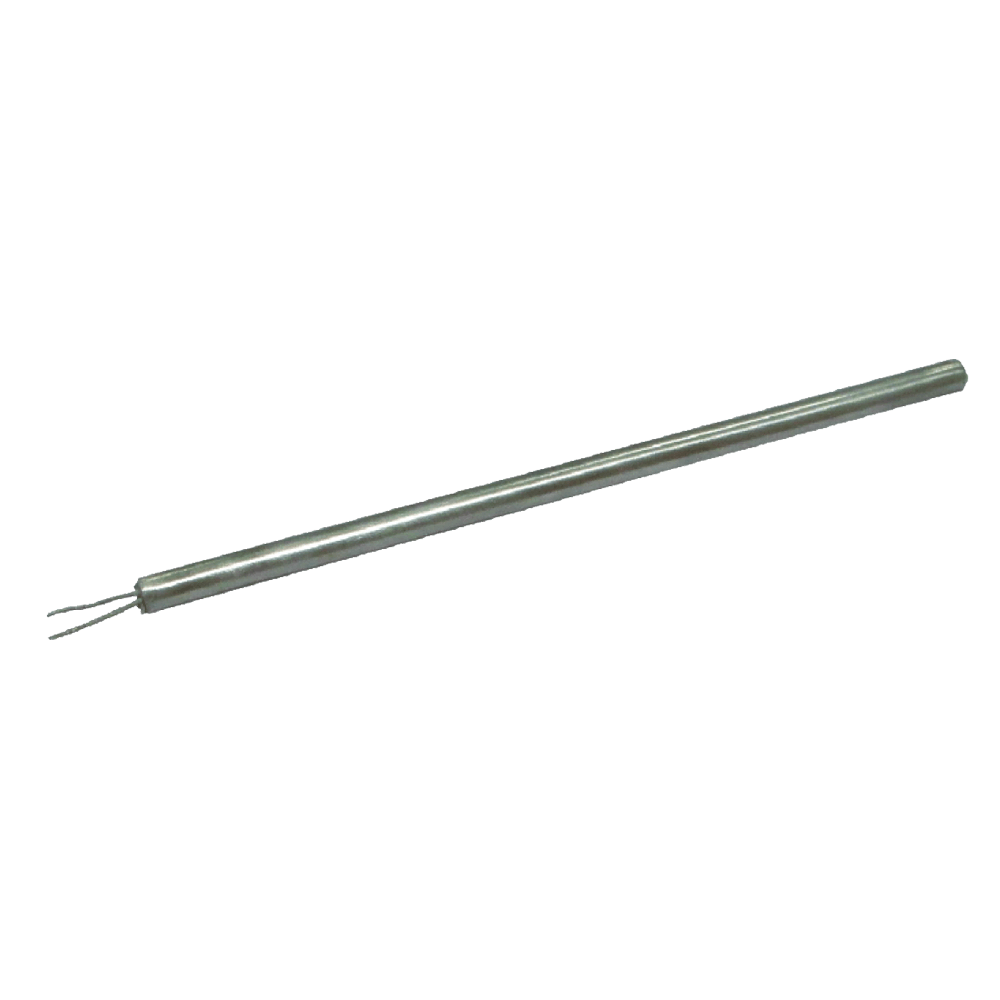

PI-T201
PI Controls Europe - Thermocouple spare-insert, bare element
Thermocouples - Sensor/Spare-inserts
- Element :K / J / N / E / T / R / S / B
- Accuracy :Standard to ISA & ANSI MC96.1
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
- Sheath material :AISI 316 SS / AISI 310 SS / Inconel 600
PI-T202
PI Controls Europe - Thermocouple sensor, with transition joint
Thermocouples - Sensor/Spare-inserts
- Element :K / J / N / E / T / R / S / B
- Accuracy :Standard to ISA & ANSI MC96.1
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
- Sheath material :AISI 316 SS / AISI 310 SS / Inconel 600
PI-T203
PI Controls Europe - Thermocouple sensor, with plug & jack connector
Thermocouples - Sensor/Spare-inserts
- Element :K / J / N / E / T / R / S / B
- Sheath diameter :1.0 mm to 8.0 mm
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
- Sheath material :AISI 316 SS / AISI 310 SS / Inconel 600
PI-T204
PI Controls Europe - Thermocouple spare-insert, with spring loaded terminal block
Thermocouples - Sensor/Spare-inserts
- Element :K / J / N / E / T / R / S / B
- Terminal Block :PCD 33 / PCD 46
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded

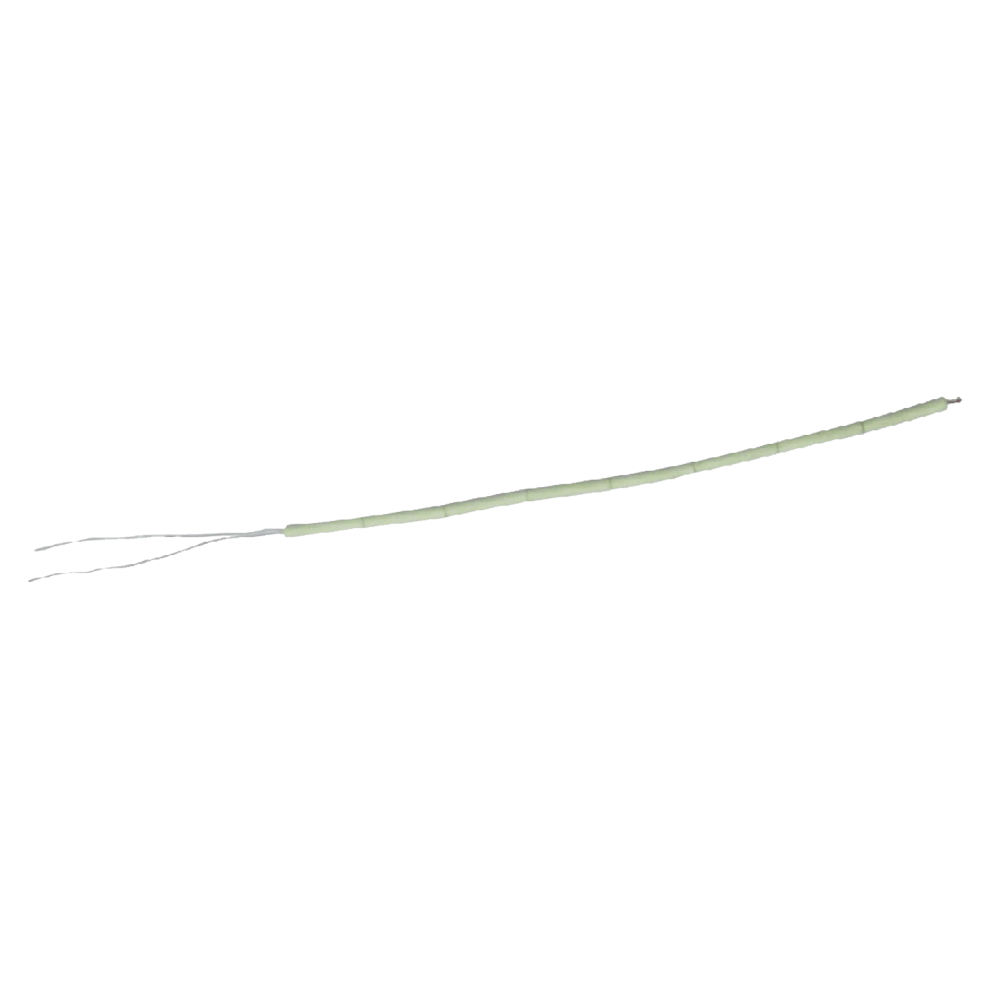

PI-T205
PI Controls Europe - Thermocouple spare-insert, beaded element
Thermocouples - Sensor/Spare-inserts
- Element :K / J / N / E / T / R / S / B
- Wire diameter :8 SWG to 25 SWG (Others on request)
- No. of sensors :Simplex / Duplex / Triplex
- Insulator diameter :3.5 mm to 12 mm
- Insulator material :Ceramic

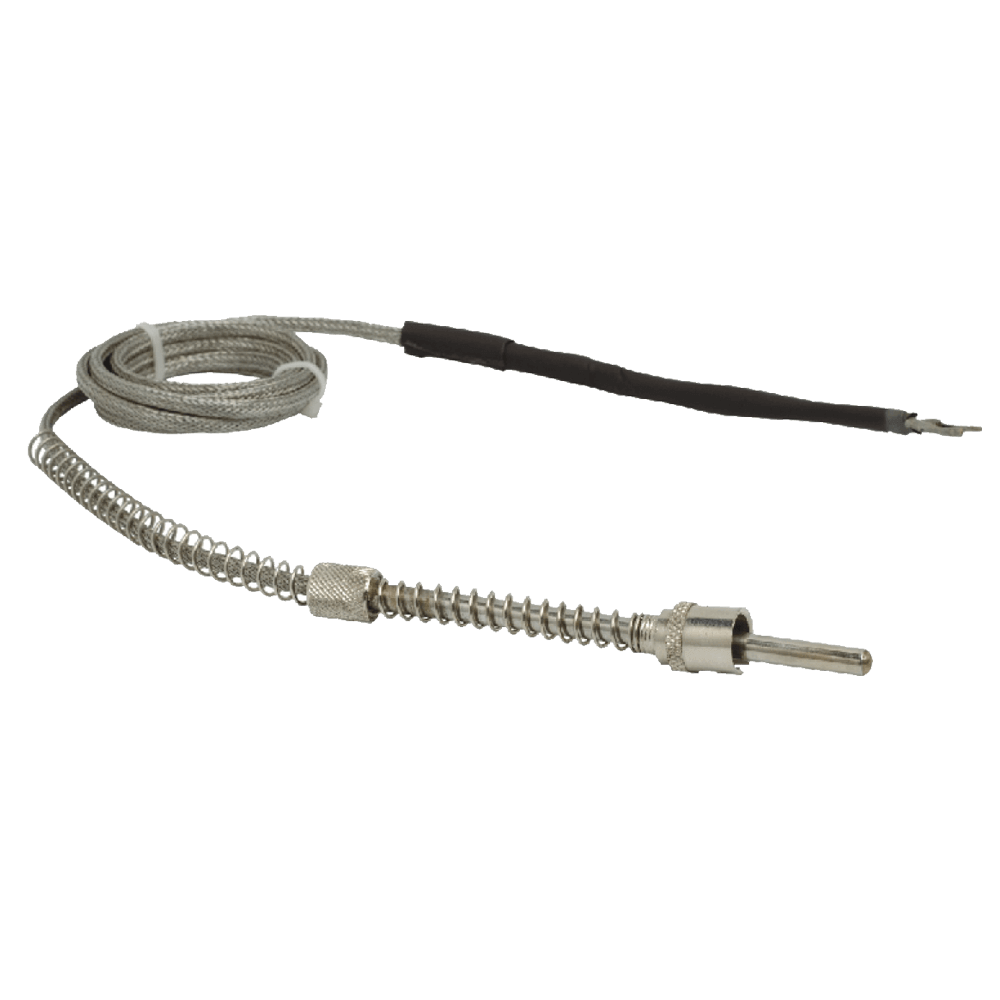

PI-T206
PI Controls Europe - Thermocouple sensor, with spring loaded bayonet fitting
Thermocouples - Sensor/Spare-inserts
- Element :K / J / E / T
- No. of sensors :Simplex
- Sheath material :AISI 316 SS
- Lead wire Type :PTFE / PTFE / SS Wire Braided (Others on request)

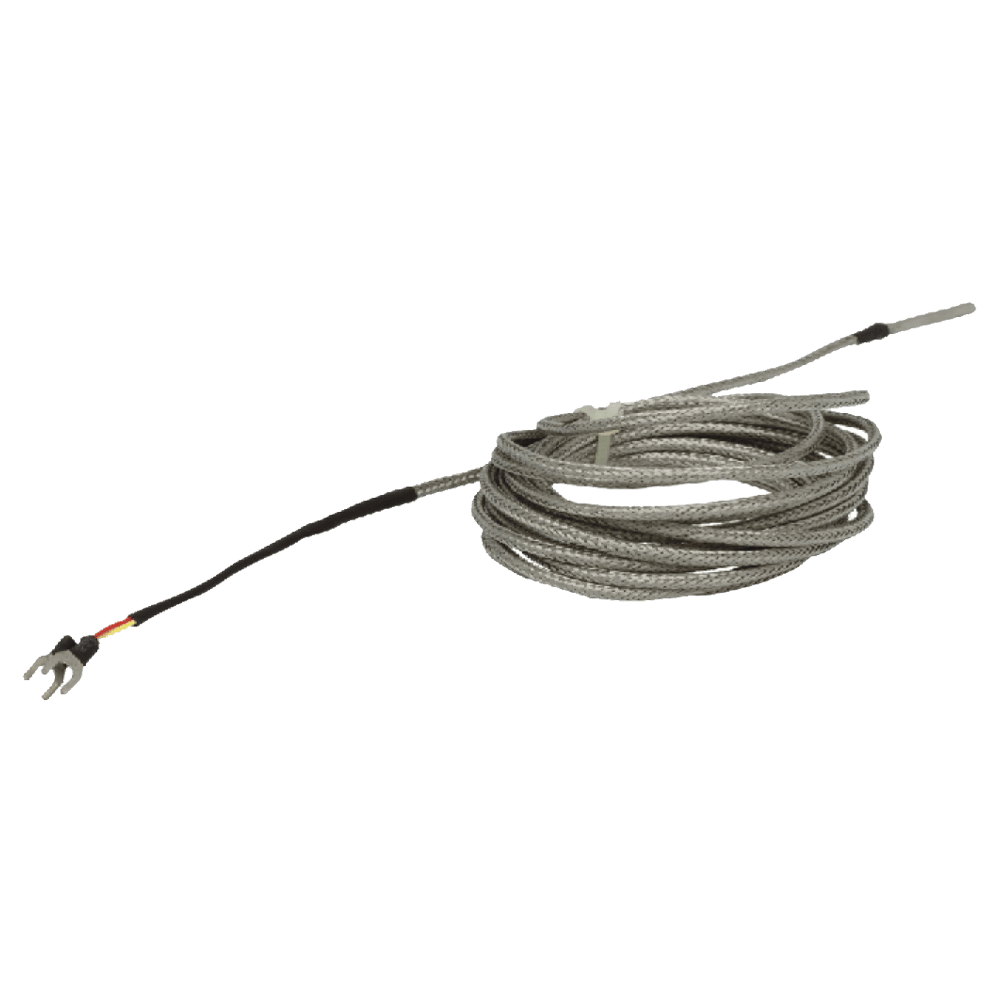

PI-T207
PI Controls Europe - Thermocouple sensor, for bearing temperature
Thermocouples - Sensor/Spare-inserts
- Element :K / J / E / T
- No. of sensors :Simplex / Duplex / Triplex
- Sheath material :AISI 316 SS / AISI 316L SS / Inconel 600
- Lead wire Type :PTFE / PTFE / SS Wire Braided (Others on request)

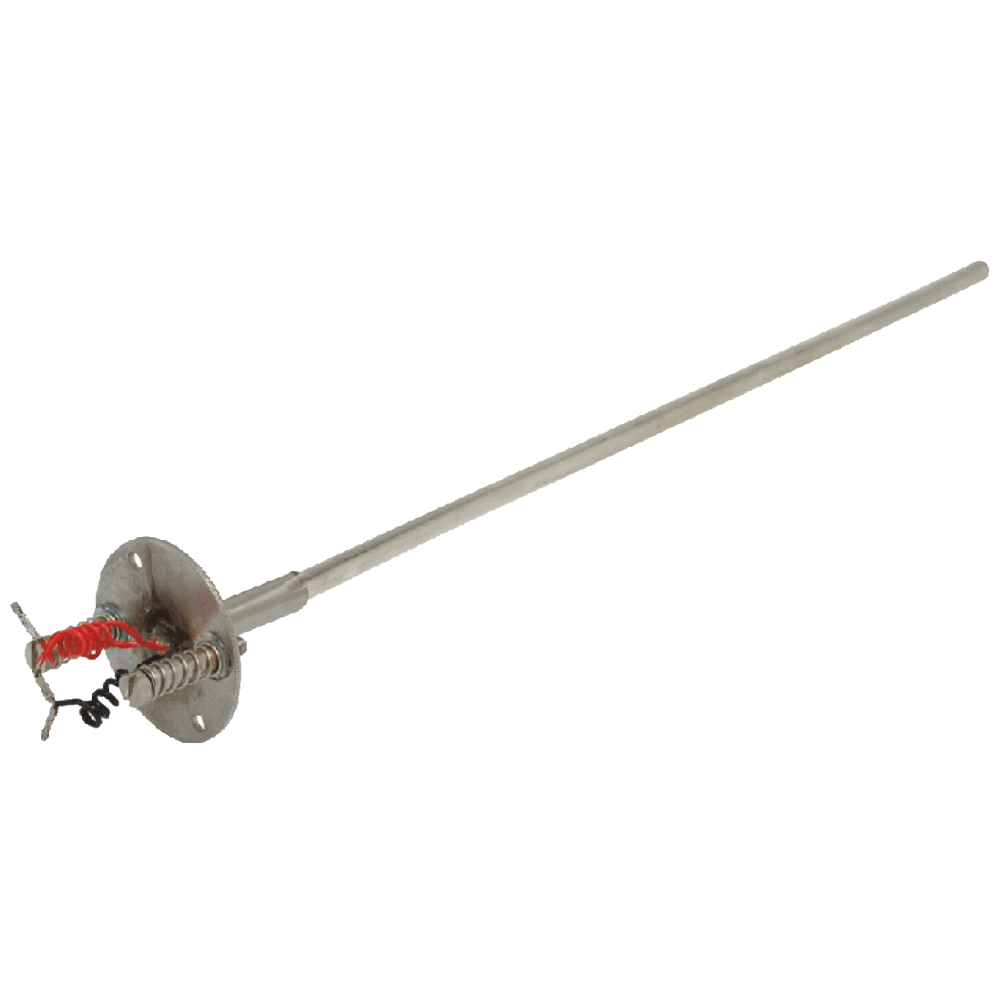

PI-T208
PI Controls Europe - Thermocouple spare-insert, with SS base plate for transmitter mounting
Thermocouples - Sensor/Spare-inserts
- Element :K / J / N / E / T / R / S / B
- Spring loaded Base plate :PCD 33 / PCD 46
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
Temperature - Thermocouples - Customized
PI-T301
PI Controls Europe - Surface-mount Thermocouple assembly, Weld-pad mounting
Thermocouples - Customized
- Element :K / J / N / E / T / R / S / B
- Mounting Type :Bracket Mounting for Head
- No. of sensors :Simplex / Duplex / Triplex
- Hot junction :Ungrounded / Grounded
PI-T302
PI Controls Europe - High-temperature Thermocouple assembly, with threaded connection
Thermocouples - Customized
- Element :K / N / R / S / B
- Element type :With Ceramic Insulators / Mineral Insulated
- No. of sensors :Simplex / Duplex / Triplex
- Sheath material :Inconel 600

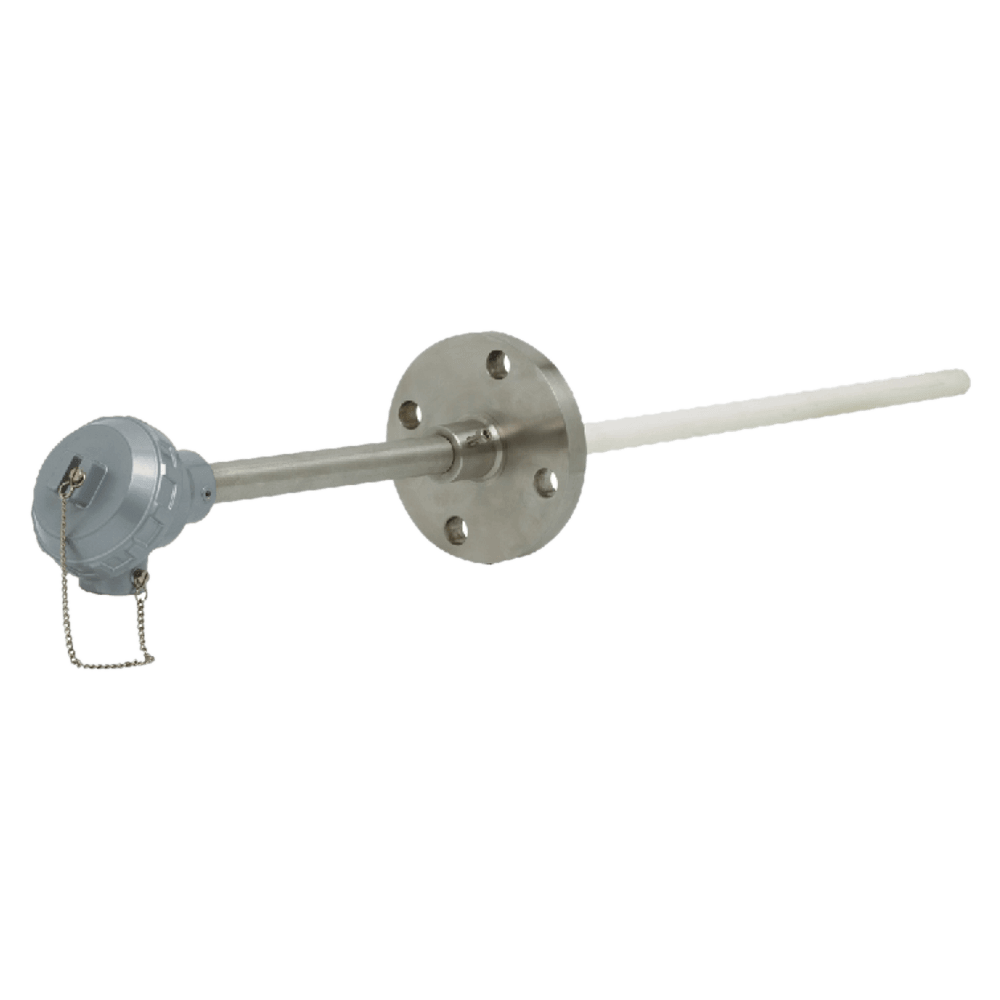

PI-T303
PI Controls Europe - High-temperature Thermocouple assembly, with flanged connection
Thermocouples - Customized
- Element :K / N / R / S / B
- Element type :With Ceramic Insulators / Mineral Insulated
- No. of sensors :Simplex / Duplex / Triplex
- Protection tube material :KER - 610 / KER 710 (Others on request)
- Sheath material :Inconel 600

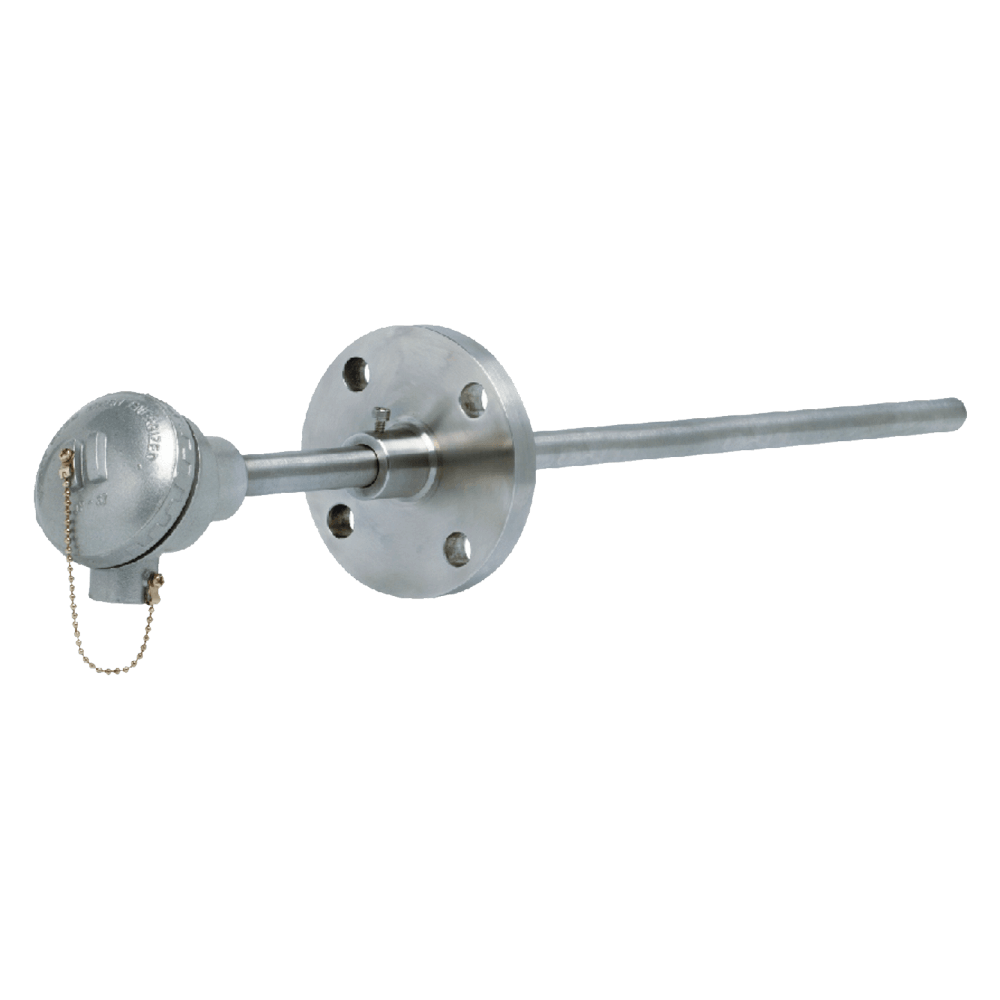

PI-T304
PI Controls Europe - Protection tube Thermocouple assembly
Thermocouples - Customized
- Element :K / N / R / S / B
- Element type :With Ceramic Insulators / Mineral Insulated
- No. of sensors :Simplex / Duplex / Triplex
- Protection tube material :AISI 316 SS / AISI 316L SS / Inconel 600(Others on request)
- Sheath material :AISI 316 SS/ AISI 316L SS / Inconel 600
Temperature - Thermowells - Standard
PI-W101
PI Controls Europe - Fabricated, straight, threaded
Thermowells - Standard
- Shank form :Straight
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :½" to 2" (Others on request)
- Immersion length :50 mm to 1000 mm
PI-W102
PI Controls Europe - Bar-stock, straight, threaded
Thermowells - Standard
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :½" to 2" (Others on request)
- Immersion length :50 mm to 1000 mm
PI-W103
PI Controls Europe - Fabricated, flanged
Thermowells - Standard
- Shank form :Straight
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :½" to 4" flange sizes(Others on request)
- Immersion length :50 mm to 1000 mm (Others on request)
PI-W104
PI Controls Europe - Bar-stock, flanged
Thermowells - Standard
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :½" to 4" flange sizes(Others on request)
- Immersion length :50 mm to 1000 mm (Others on request)
PI-W105
PI Controls Europe - Flanged Thermowell With Exotic Wetted Parts
Thermowells - Standard
- Shank form :Straight / Tapered / Stepped
- Material :Monel / Hastelloy C-276 / Inconel 600 & Others
- Process connection :½" to 4" flange sizes(Others on request)
- Immersion length :50 mm to 1000 mm (Others on request)
Temperature - Thermowells - Customized
PI-W201
PI Controls Europe - Van-stone design
Thermowells - Customized
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :1" / 1.5" / 2" RF diameter
- Immersion length :50 mm to 1000 mm (Others on request)
PI-W202
PI Controls Europe - Sanitary
Thermowells - Customized
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :1" / 1.5" / 2" / 2.5" Sanitary connections
- Immersion length :50 mm to 1000 mm (Others on request)
PI-W203
PI Controls Europe - Weld-in/socket weld
Thermowells - Customized
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :14 mm to 56 mm (Others on request)
- Immersion length :50 mm to 1000 mm (Others on request)
PI-W204
PI Controls Europe - Partial bar-stock, flanged/threaded
Thermowells - Customized
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection : ½" to 4" flange sizes(Others on request)
- Immersion length :50 mm to 1000 mm (Others on request)
PI-W205
PI Controls Europe - Multipiece bar-stock, flanged
Thermowells - Customized
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :½" to 4" (Others on request)
- Immersion length :50 mm to 1000 mm
PI-W206
PI Controls Europe - Bar-stock, compression fitting, threaded
Thermowells - Customized
- Shank form :Straight / Tapered / Stepped
- Material :AISI 304 SS, AISI 316 SS, Monel (Others on request)
- Process connection :½" to 2" (Others on request)
- Immersion length :50 mm to 1000 mm
Industries We Serve
- Oil & Gas Sector
- Chemical Industry
- Pharmaceutical Industry
- Water Treatment Industry
- Paper Pulp industry
- Fertilizer Industry
- Food Processing Companies
- Engineering Works
- Fabricators
- Shipbuilding & Marine
- Steam & Power Generation
- Refrigeration & Air Conditioning
