Pressure Gauge - Standard

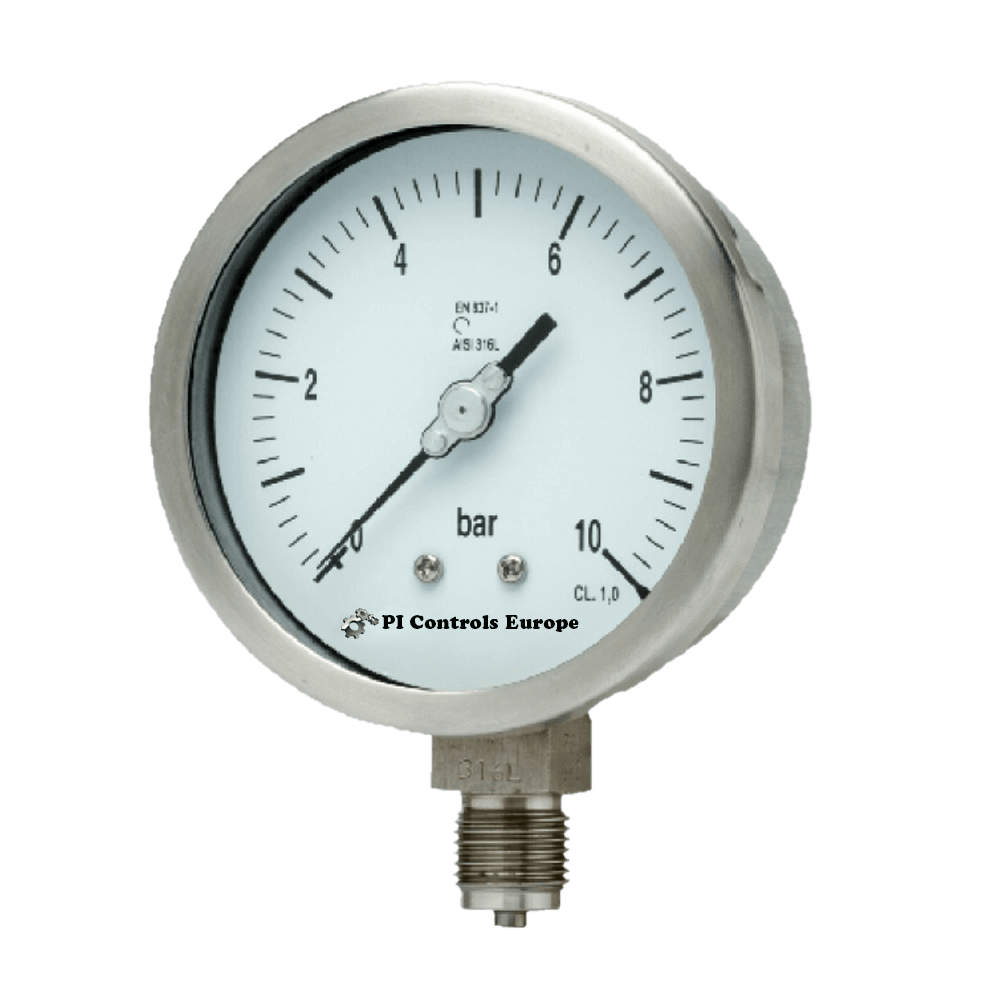

PI-P101
PI Controls Europe - All SS pressure gauge, >100 mm diameter
Pressure Gauge - Standard
- Dial size: DN100 / DN125 / DN150 / DN250
- Range: -1...0...1,600 bar
- Process connection: ½" NPT (M) / ½" BSP (M)
- Ingress protection: IP 54 / IP 65

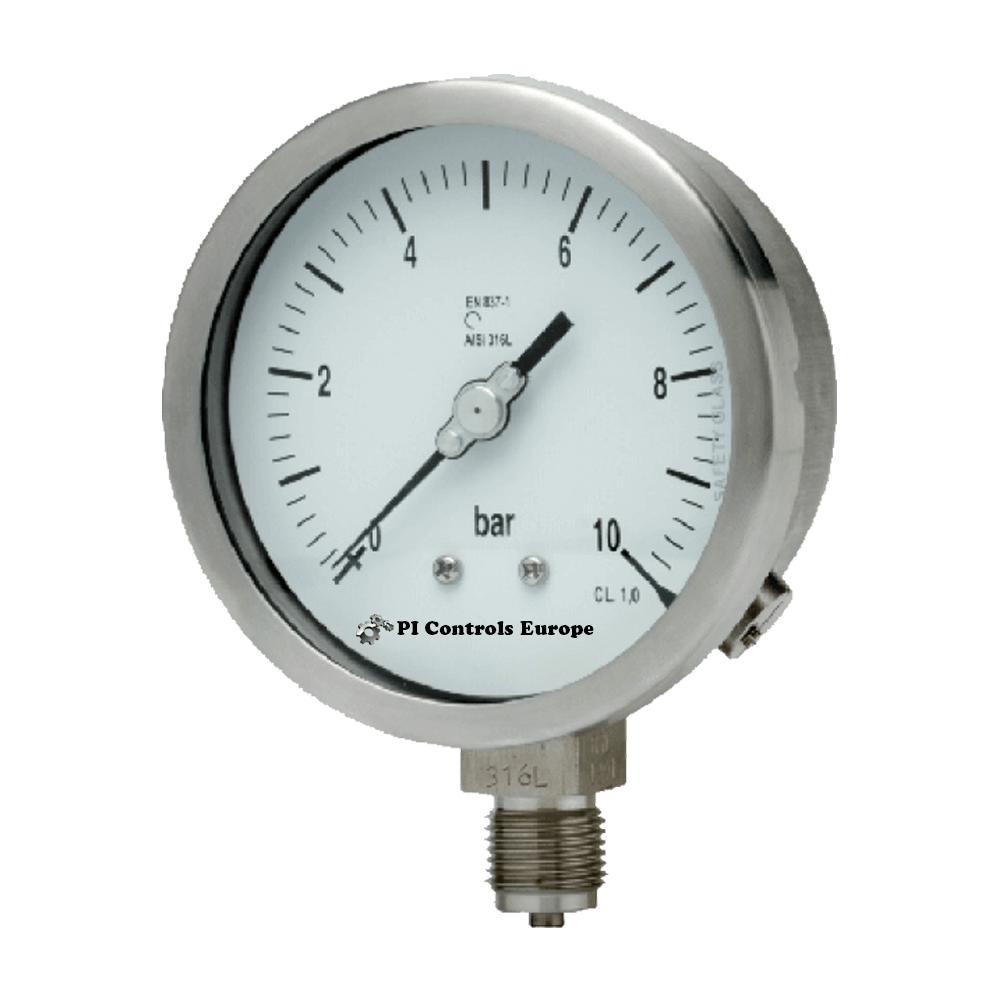

PI-P102
PI Controls Europe - All SS pressure gauge with external zero adjustment
Pressure Gauge - Standard
- Dial size: DN100 / DN125 / DN150 / DN250
- Range: -1...0...1,600 bar
- Process connection: ½" NPT (M) / ½" BSP (M)
- Execution: Dry / Dry but fillable, glycerin

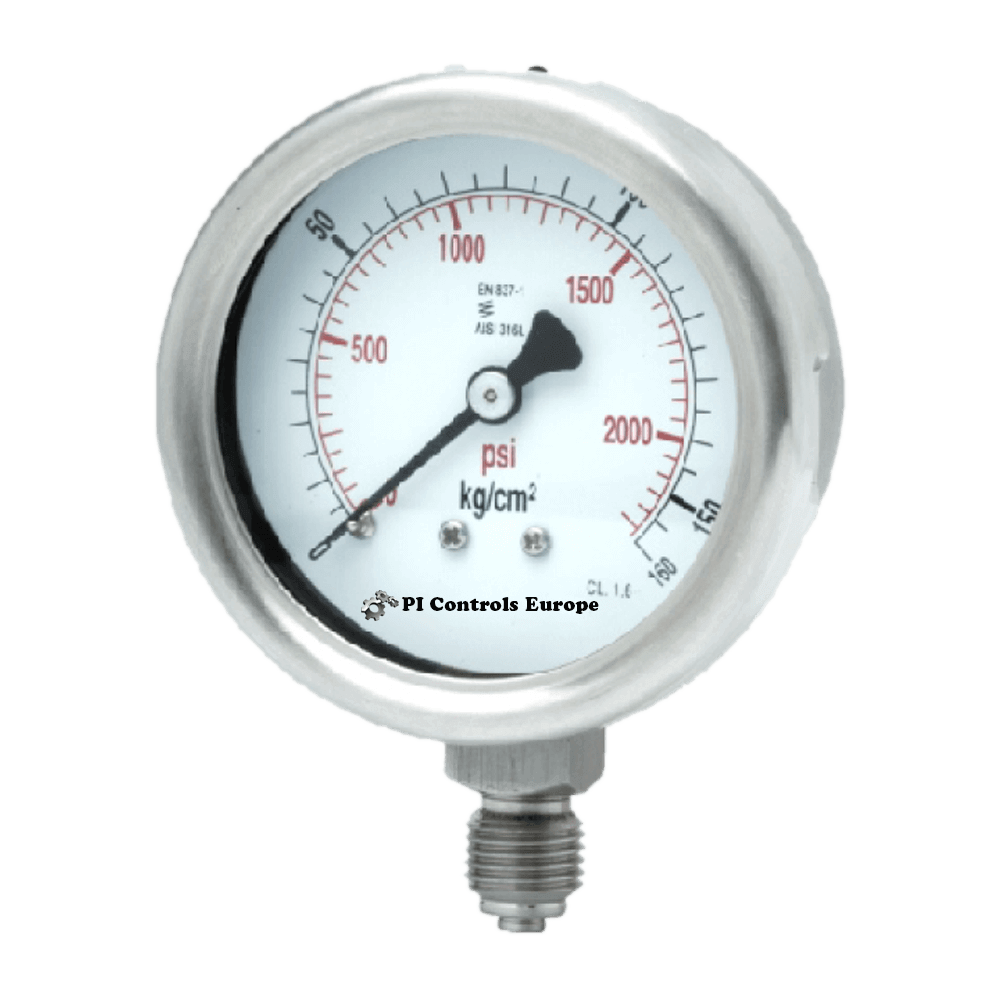

PI-P103
PI Controls Europe - All SS pressure gauge, >=100 mm diameter
Pressure Gauge - Standard
- Dial size: DN50/ DN63 / DN80 / DN100
- Range: -1…400 bar (DN50)
- Process connection: ¼" NPT (M) / ¼" BSP (M)
- Ingress protection: IP 54 / IP 65

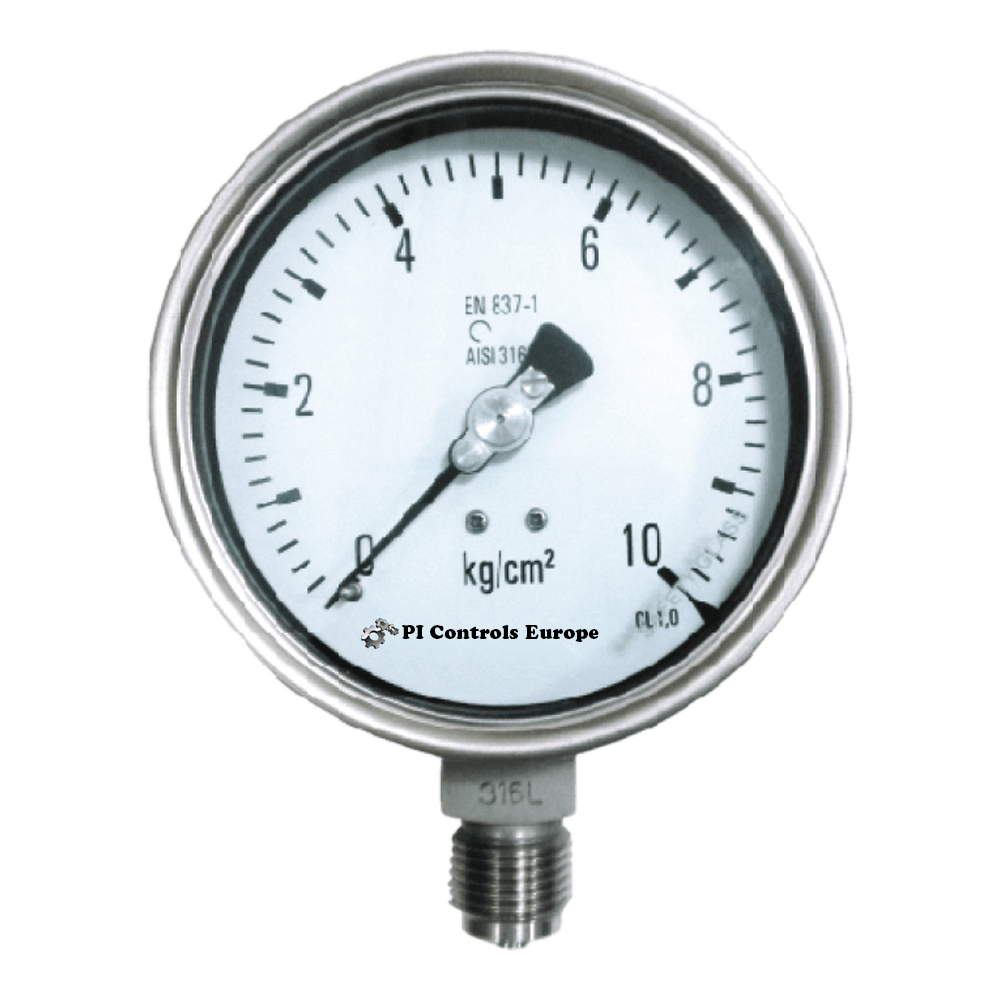

PI-P104
PI Controls Europe - All stainless steel pressure gauge, DIN style case
Pressure Gauge - Standard
- Dial size :DN100 / DN150
- Range :-1...0...1,600 bar
- Process connection :½" NPT (M)/½" BSP (M)
- Ingress protection :IP 54 / IP 65

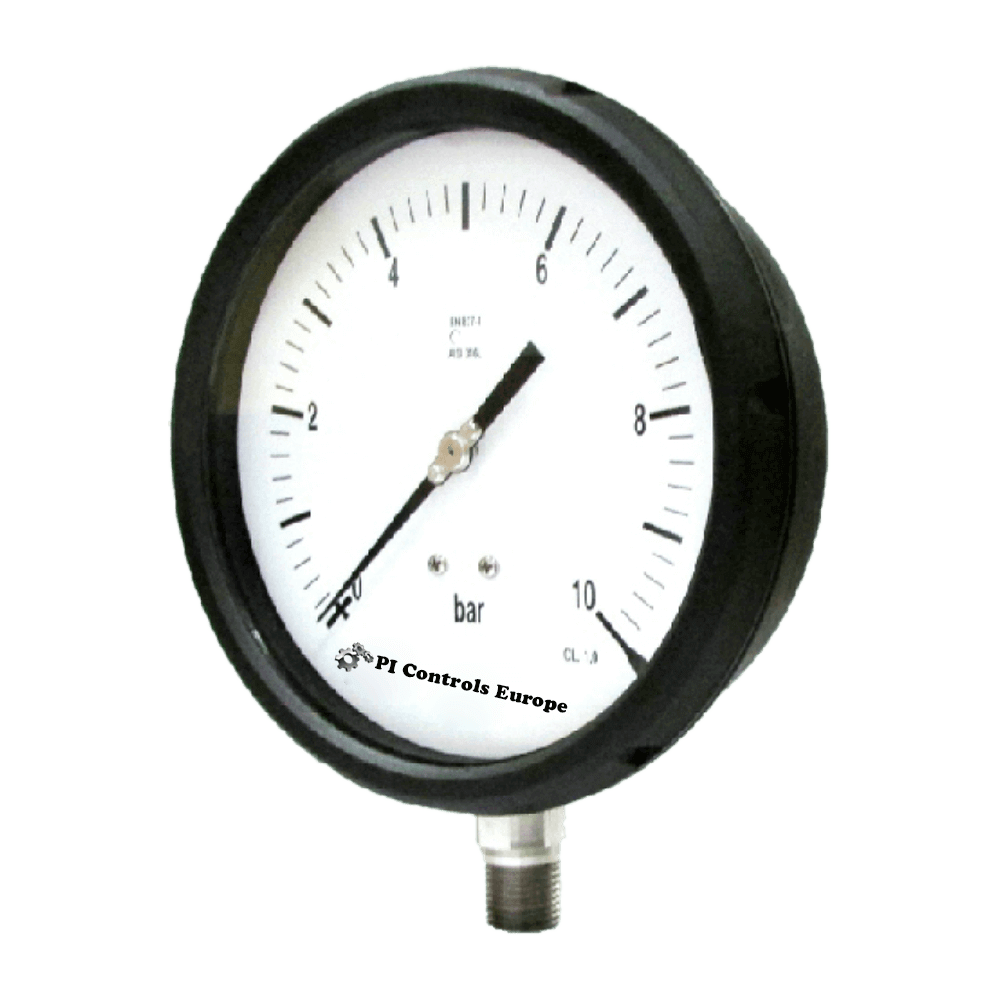

PI-P105
PI Controls Europe - PP case pressure gauge
Pressure Gauge - Standard
- Dial size :DN100 / DN150
- Range :-1...0...2,000 bar
- Process connection :½" NPT (M)/½" BSP (M)
- Ingress protection :IP 54 / IP 65
Pressure Gauge - Solid Front

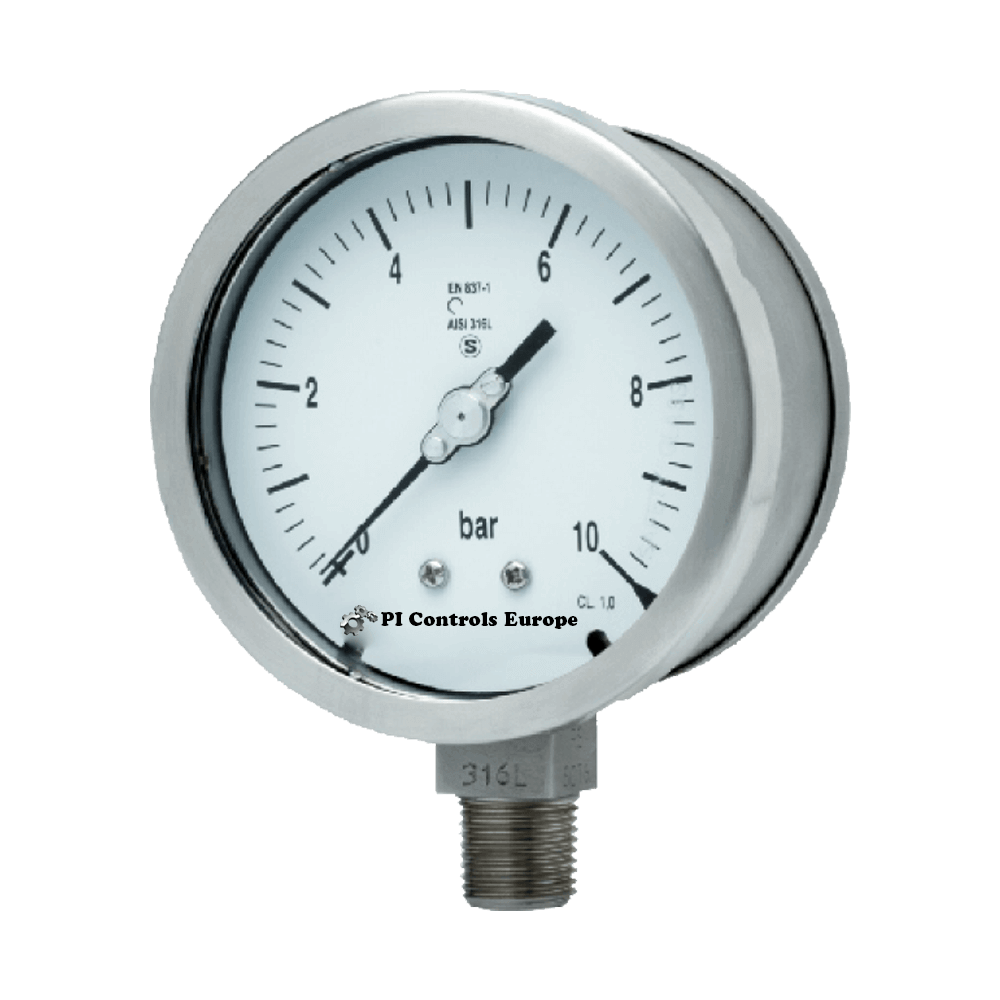

PI-P201
PI Controls Europe - All SS solid front pressure gauge, >100 mm diameter
Pressure Gauge - Solid Front
- Dial size: DN100 / DN150
- Range: -1...0...1,600 bar
- Process connection: ½" NPT (M) / ½" BSP (M)
- Ingress protection: IP 65

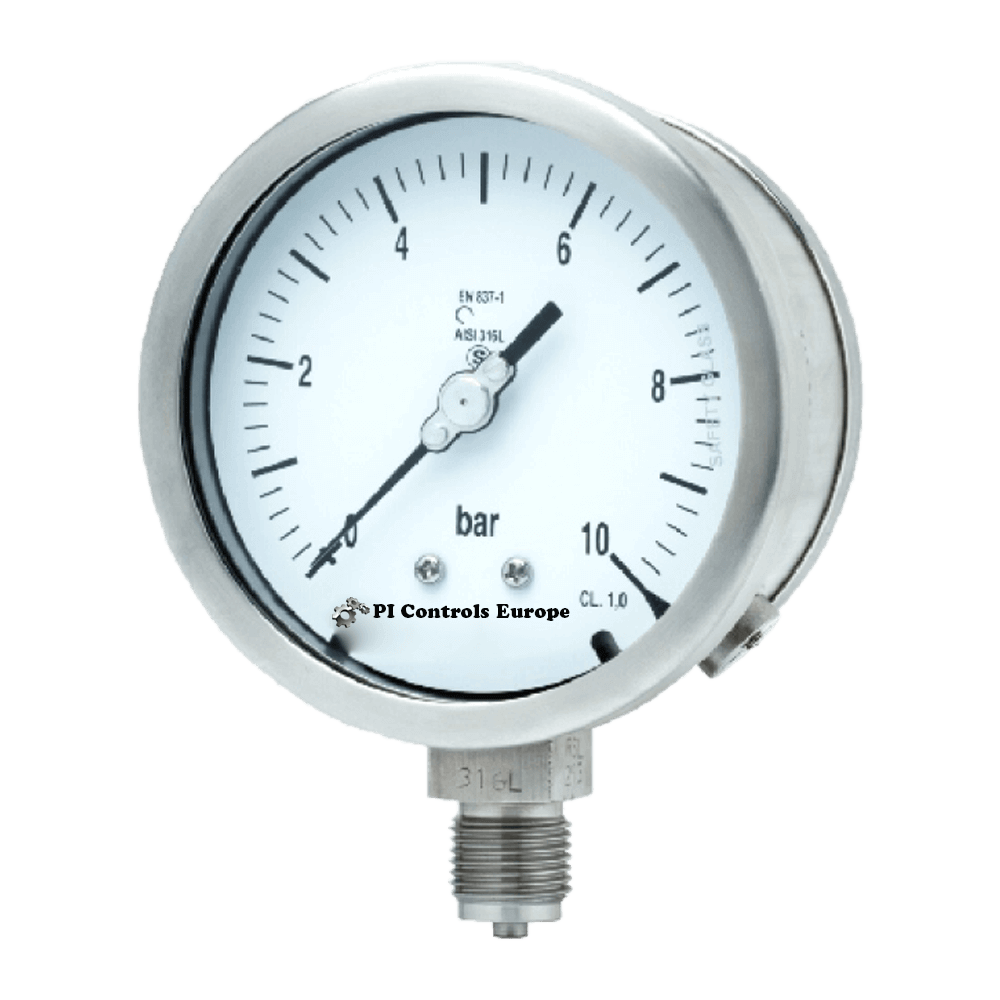

PI-P202
PI Controls Europe - All SS solid front pressure gauge, with external zero adjustment
Pressure Gauge - Solid Front
- Dial size: DN100 / DN150
- Range: -1...0...1,600 bar
- Process connection: ½" NPT (M) / ½" BSP (M)
- Execution: Dry but fillable, glycerin

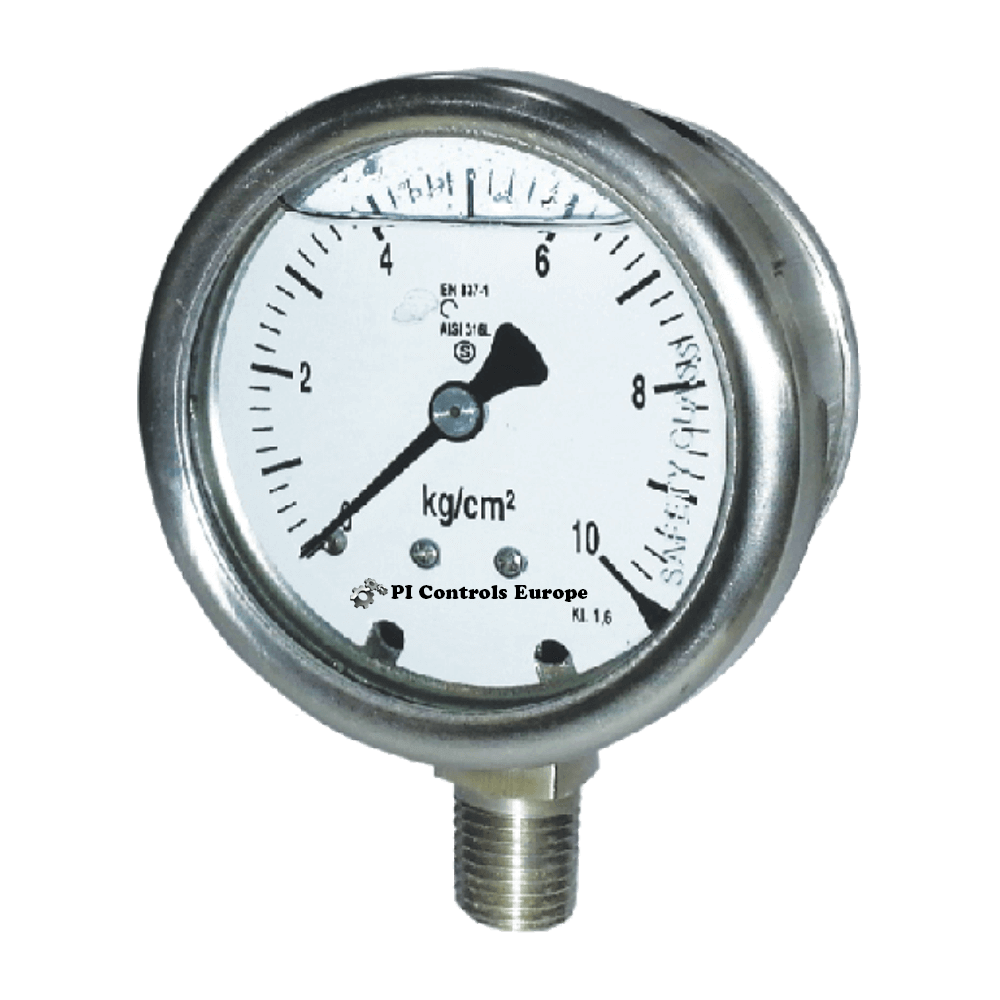

PI-P203
PI Controls Europe - All SS solid front pressure gauge, < 100 mm diameter
Pressure Gauge - Solid Front
- Dial size: DN63
- Range: -1...1,000 bar
- Process connection: ¼" NPT (M) / ¼" BSP (M)
- Execution: Dry but fillable, glycerin

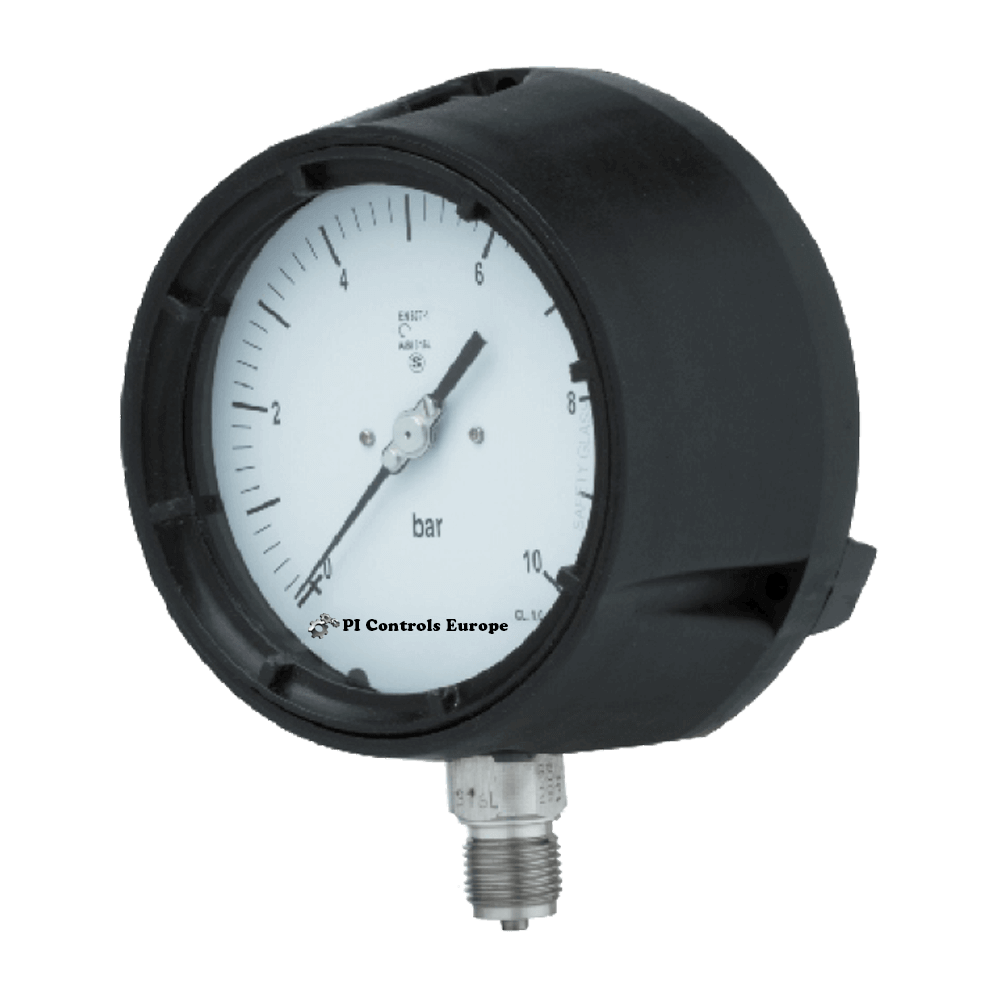

PI-P204
PI Controls Europe - Phenol case solid front pressure gauge, turret design
Pressure Gauge - Solid Front
- Accuracy: Grade 2A (± 0.5%)
- Dial size: 4.5”
- Range: -1...0...1,600 bar
- Process connection: ½" NPT (M) / ½" BSP (M)
Pressure Gauge - Differential

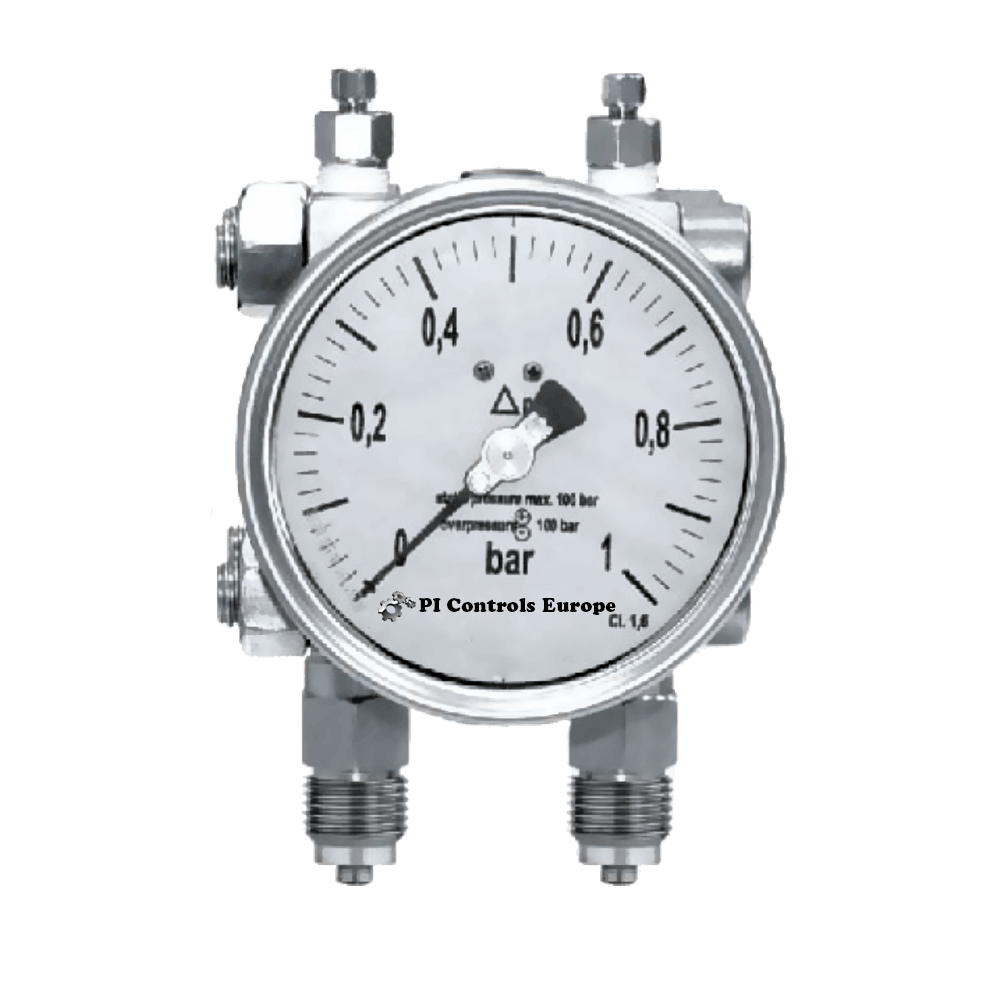

PI-P301
PI Controls Europe - Differential pressure gauge, double diaphragm type
Pressure Gauge - Differential
- Accuracy: CL 1.6 (Standard)
- Dial size: DN100/DN150
- Range: 0...60 mbar up to 0...40 bar
- Process connections: ¼" NPT (F) x 2 Nos.

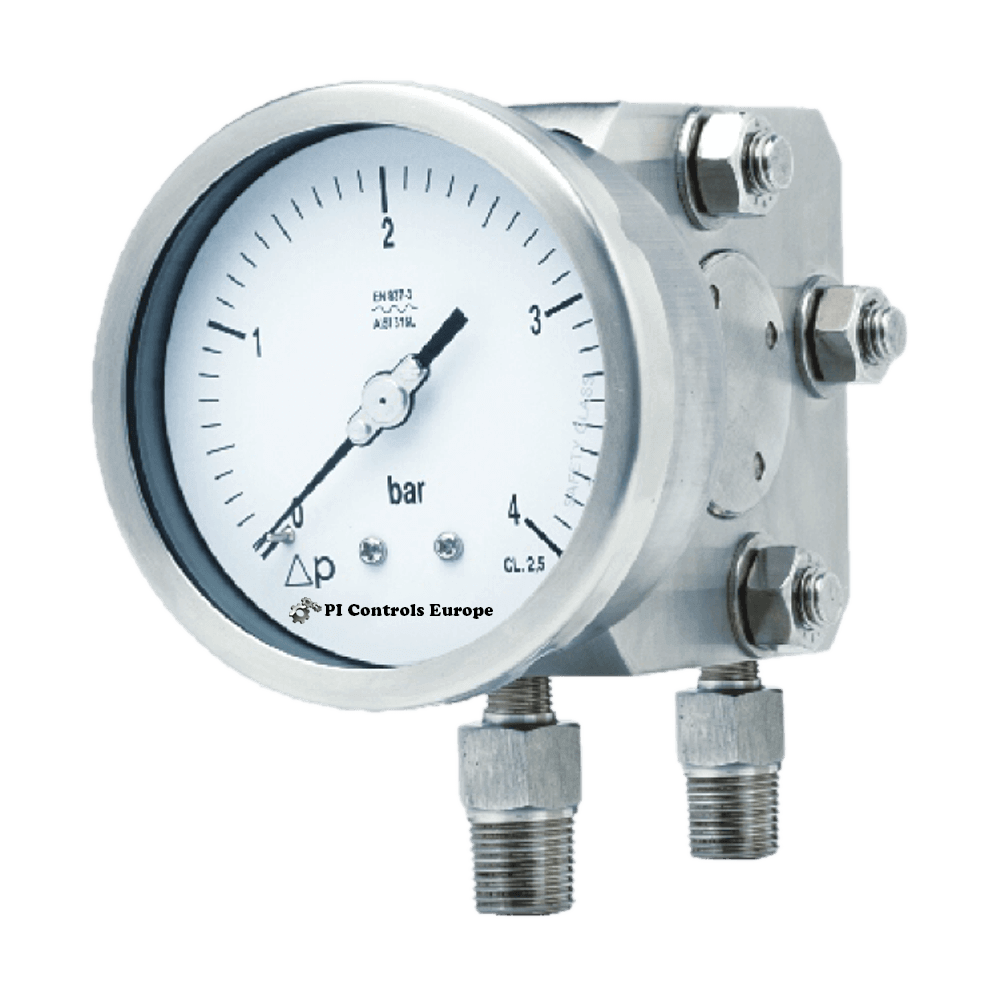

PI-P302
PI Controls Europe - Differential pressure gauge, single diaphragm type
Pressure Gauge - Differential
- Accuracy: CL 2.5
- Dial size: DN100 / DN125 / DN150
- Range: 25 mbar…0...25 bar
- Process connection: ¼" NPT (F) x 2 Nos.

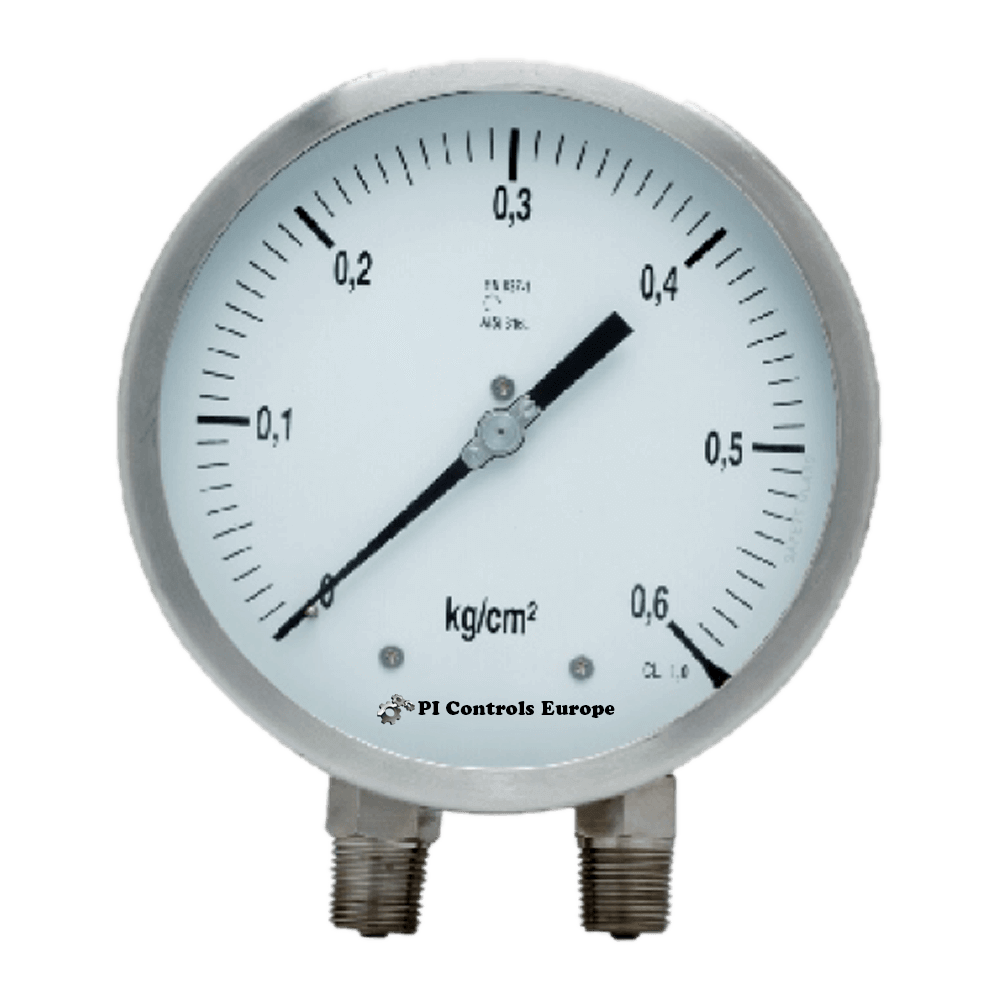

PI-P303
PI Controls Europe - Differential pressure gauge, bellow type
Pressure Gauge - Differential
- Dial size :DN150
- Range :0...100 mbar to 0...16 bar
- Process connection :½" NPT (M) x 2 Nos.
- Ingress protection :IP 65
Pressure Gauge - Differential Economical

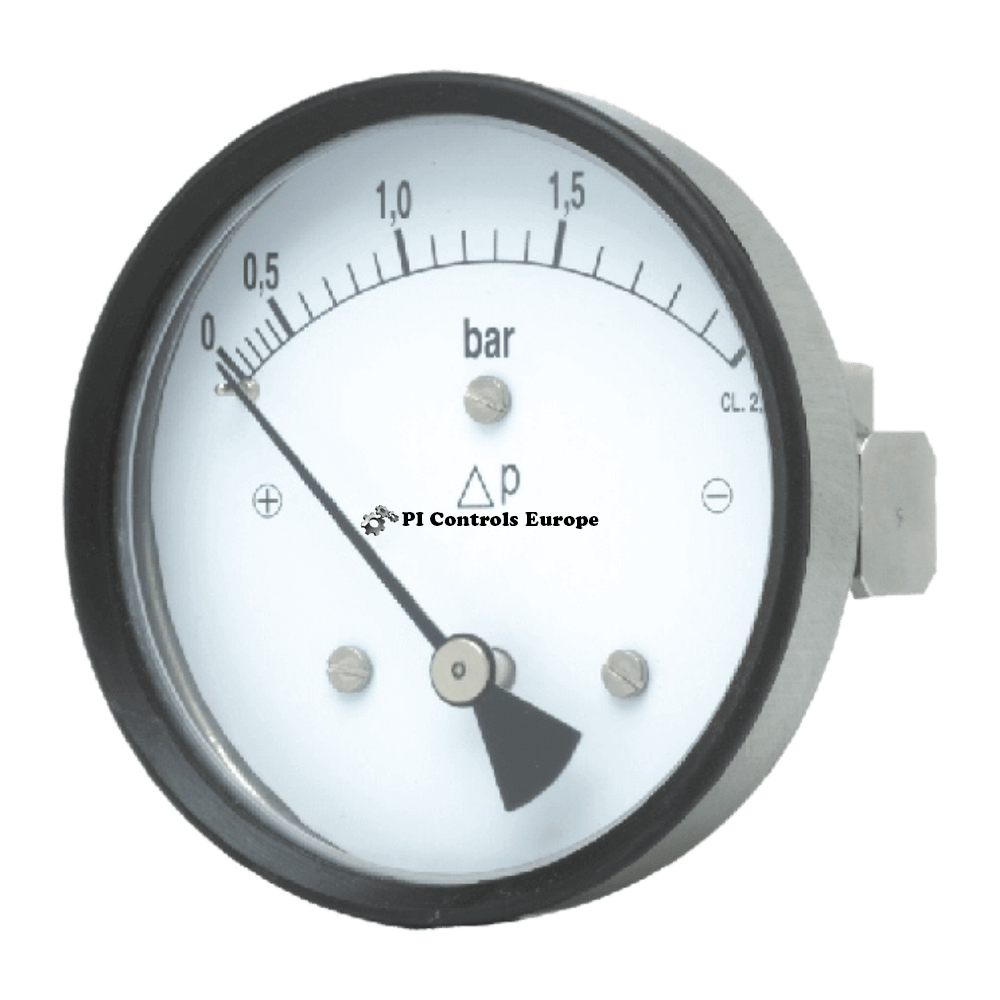

PI-P401
PI Controls Europe - Differential pressure gauge, piston operated
Pressure Gauge - Differential Economical
- Accuracy :± 2 % (Ascending)
- Dial size :DN63 / DN100 / DN150
- Range :0...0.25…70 bar
- Process connection :¼" NPT (F) x 2 Nos

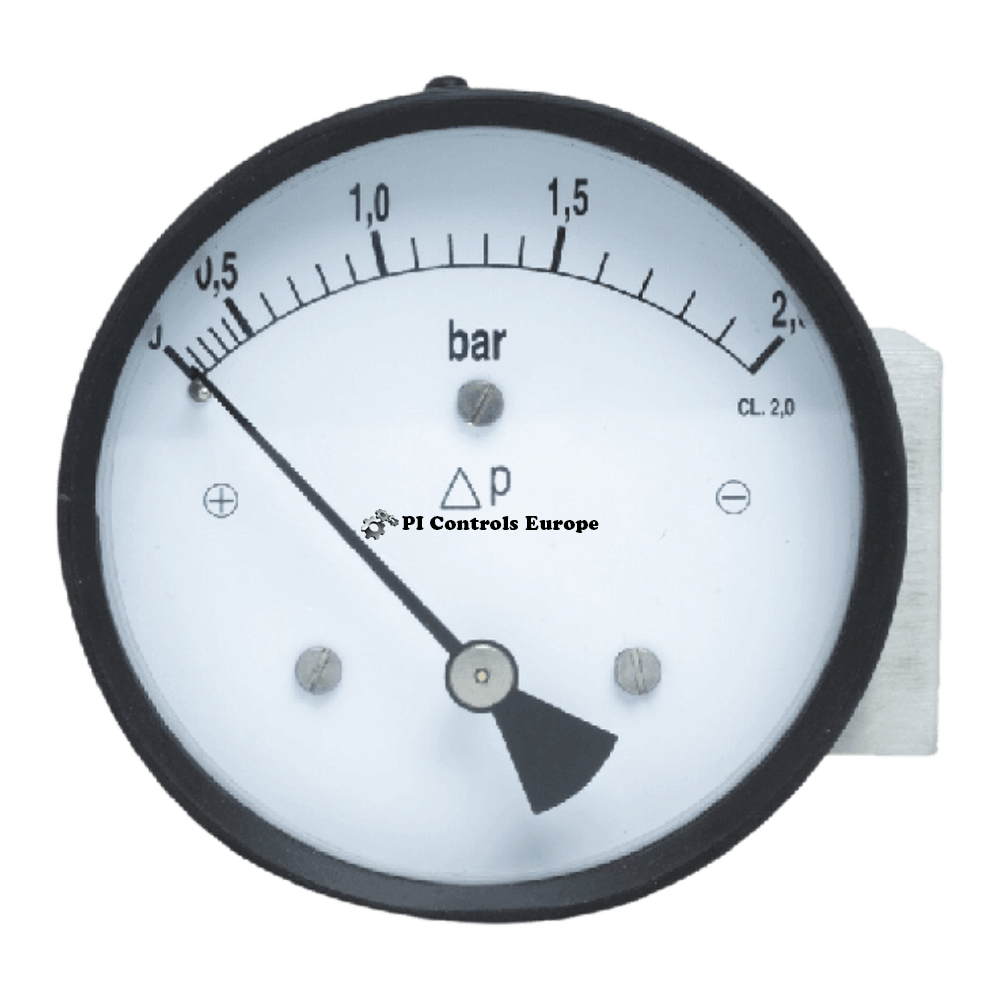

PI-P402
PI Controls Europe - Differential pressure gauge, diaphragm operated
Pressure Gauge - Differential Economical
- Accuracy :± 2 % (Ascending)
- Dial size :DN63 / DN100 / DN150
- Range :0...75 mbar up to 0…4 bar
- Mounting pattern :In-line connection

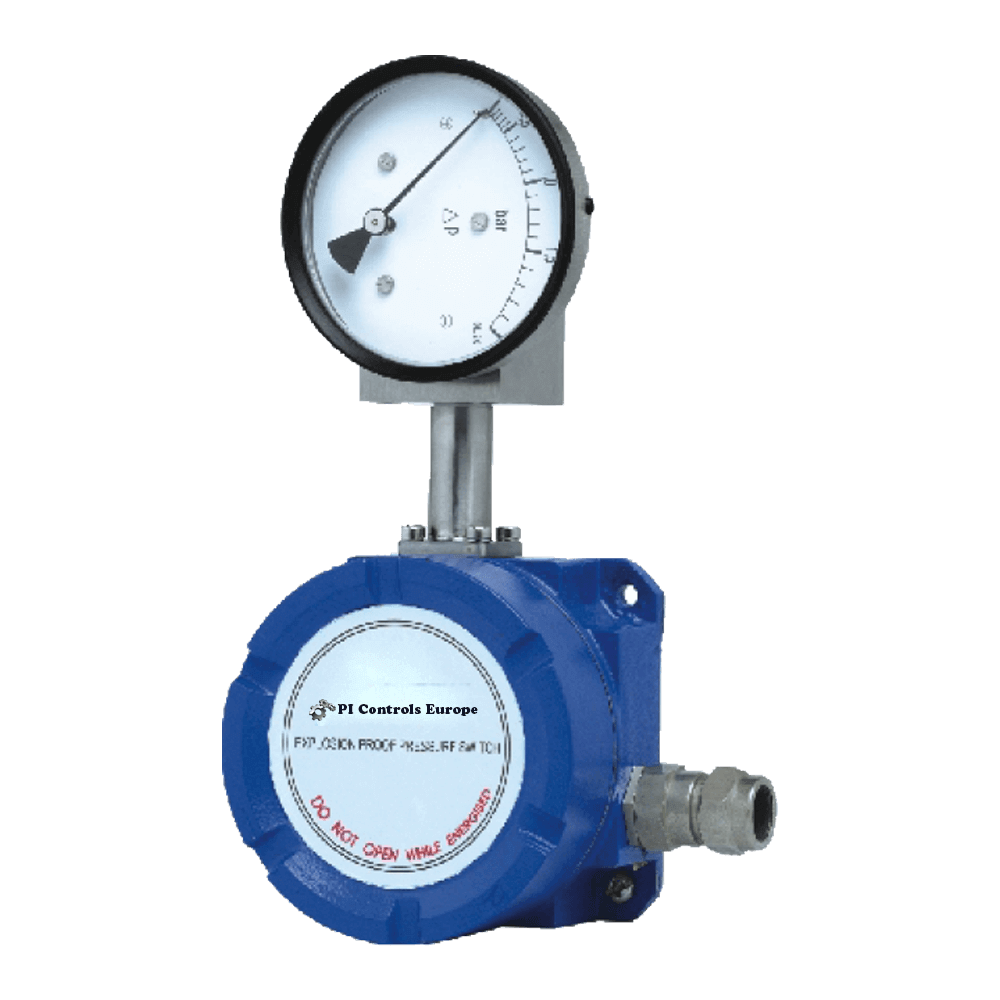

PI-P403
PI Controls Europe - Differential pressure gauge, Ex-proof indicating switch
Pressure Gauge - Differential Economical
- Dial size :DN63 / DN100 / DN150
- Range :0...75 mbar up to 0…4 bar
- Ingress protection:NEMA 4X, IP66, IP67
- Switch :1 SPST / 2 SPDT, 230VAC/0.5A
Pressure Gauge - Electrical

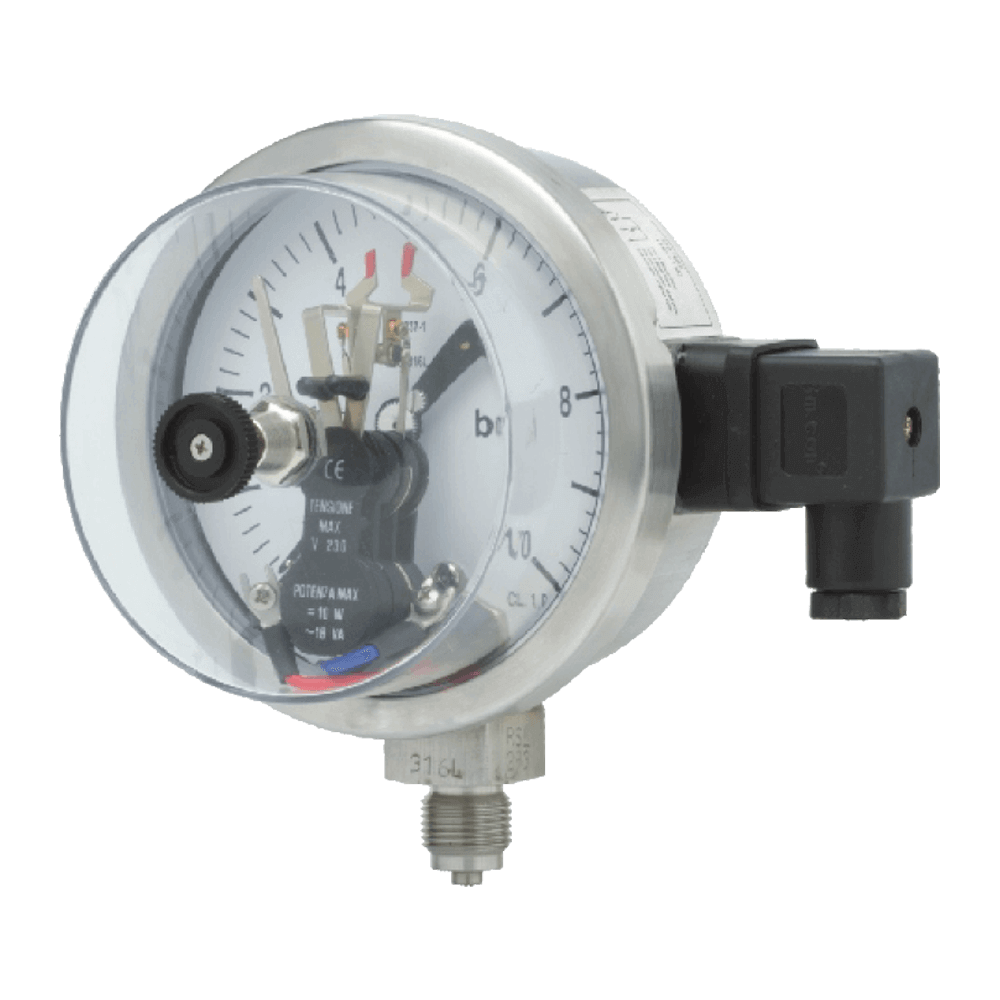

PI-P501
PI Controls Europe - All SS pressure gauge, electric contact type, dome style
Pressure Gauge - Electrical
- Dial size :DN100 / DN150
- Range :-1...0...1,600 bar
- Switch :1NO, 1NC, 1NO+1NC, SPDT, DPDT
- Execution :Dry, IP 65

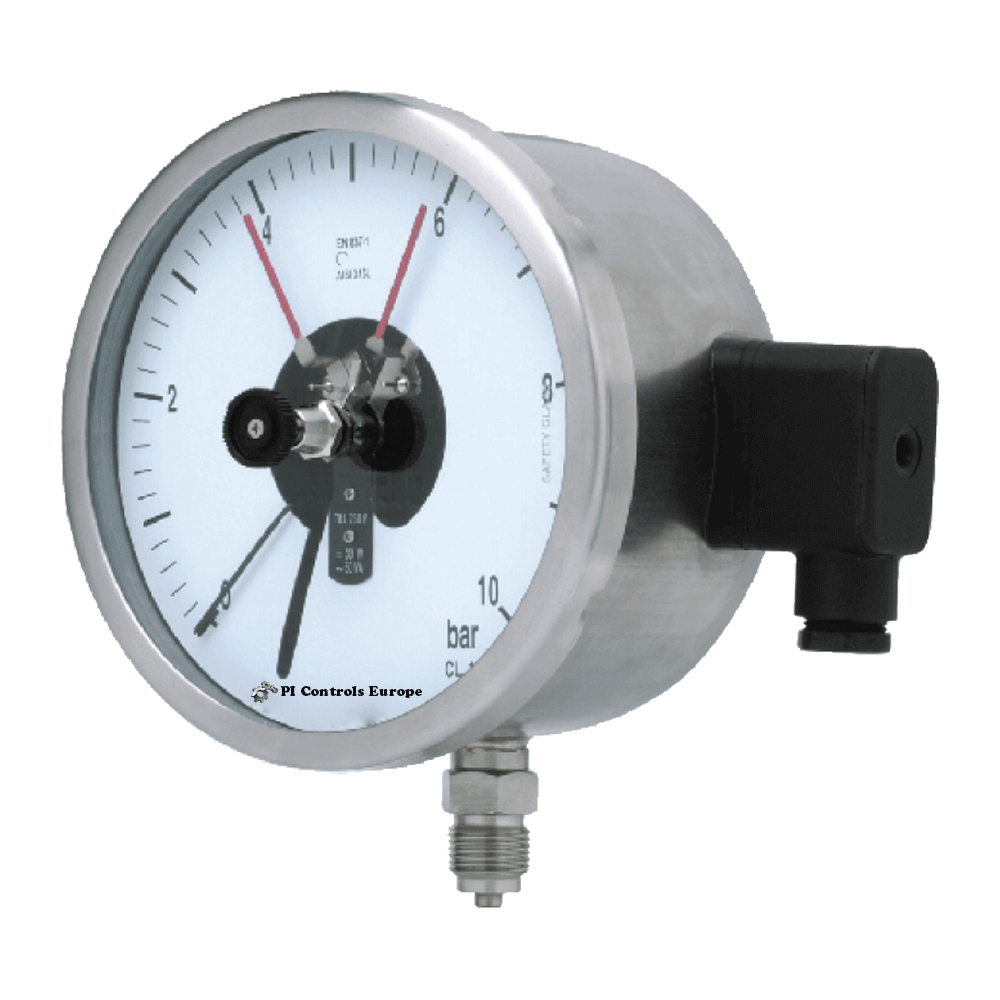

PI-P502
PI Controls Europe - All SS pressure gauge, electric contact type, hi-version case
Pressure Gauge - Electrical
- Dial size :DN100 / DN150
- Range :-1...0...1,600 bar
- Switch :1NO, 1NC, 1NO+1NC, SPDT, DPDT
- Execution :Dry, IP 65

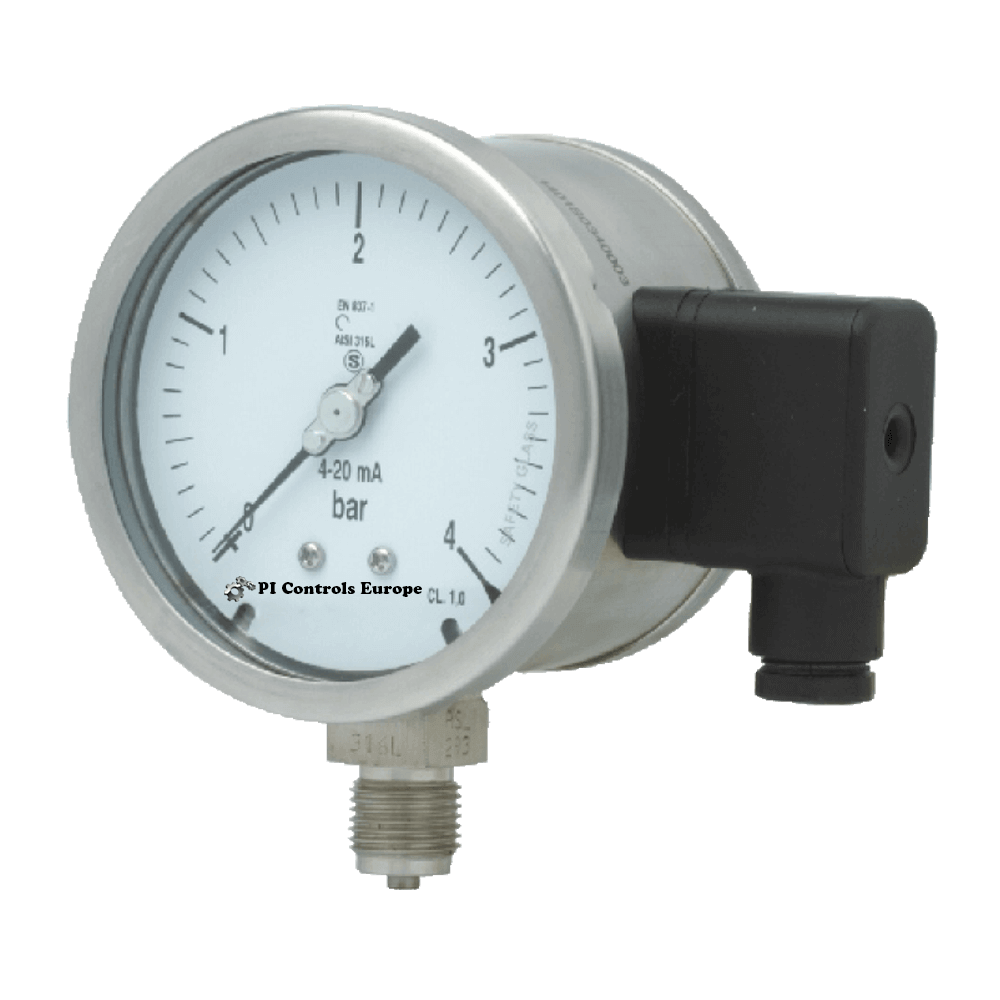

PI-P503
PI Controls Europe - Transmitter pressure gauge
Pressure Gauge - Electrical
- Dial size :DN100 / DN150
- Range :-1…0...600 bar
- Process connection :½" NPT (M) / ½" BSP (M)
- Electrical termination :4 pin PG 13.5 connector

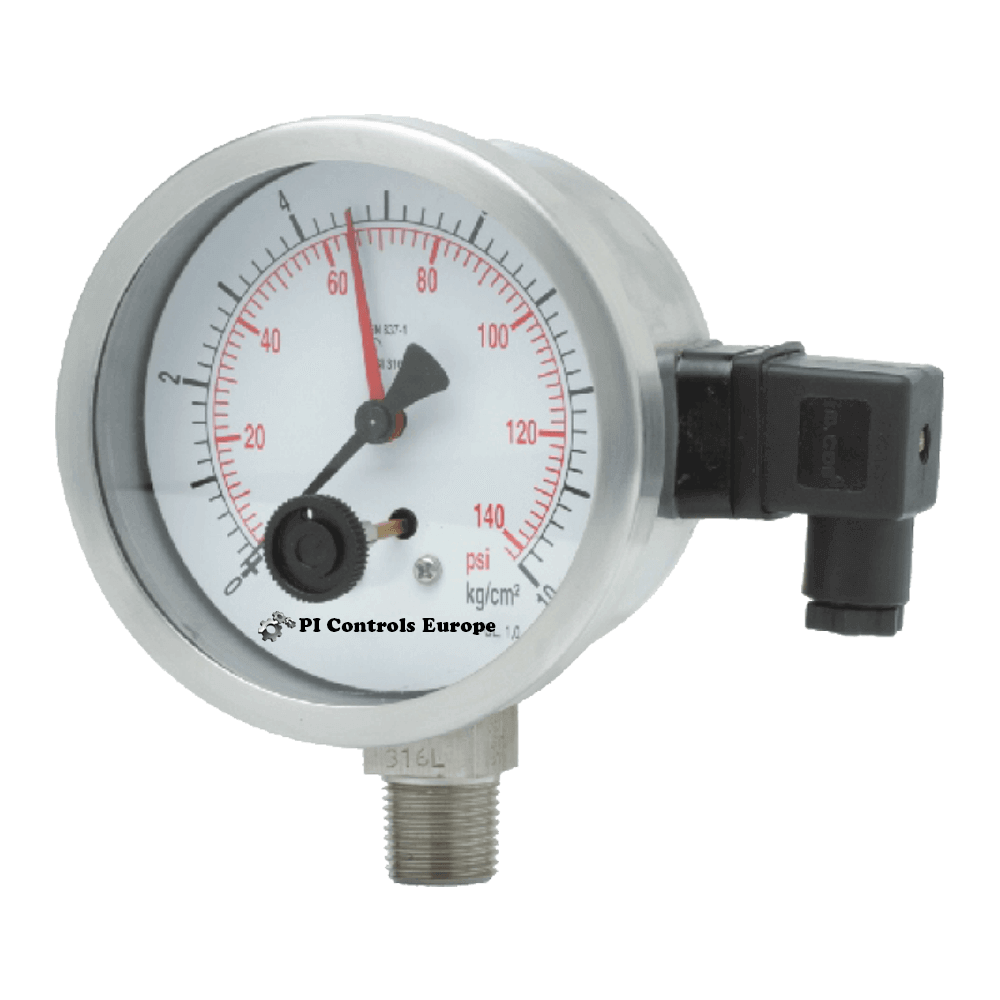

PI-P504
PI Controls Europe - Microswitch pressure gauge, indicating switch
Pressure Gauge - Electrical
- Dial size :DN100 / DN150
- Range :-1…0...600 bar
- Switch type :1 SPDT,250VAC/15A, 24VDC/2A
- Execution :Dry, IP 44
Pressure Gauge - Diaphragm

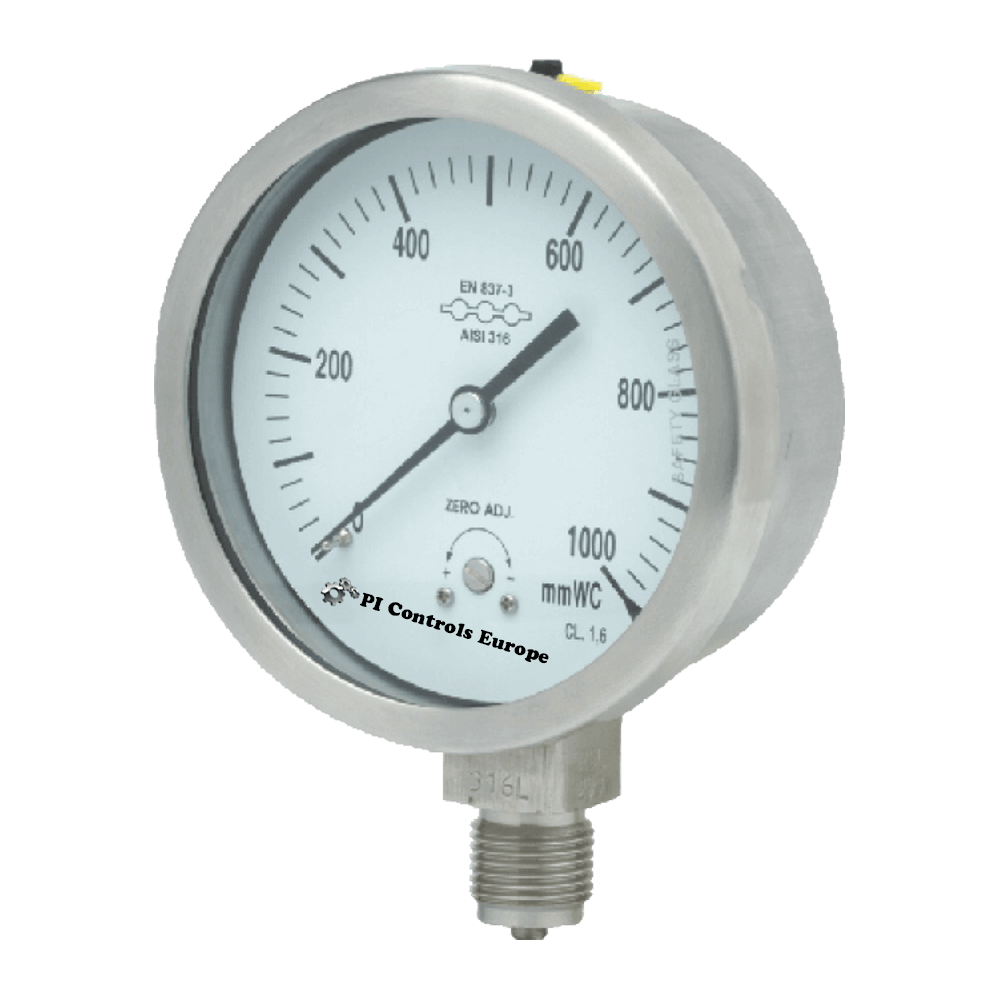

PI-P601
PI Controls Europe - All SS pressure gauge, capsule type
Pressure Gauge - Diaphragm
- Accuracy :CL 1.6
- Dial size :DN63 / DN100 / DN125 / DN150
- Range :-600...25...600 mbar
- Process connection :½" NPT (M) / ½" BSP (M)

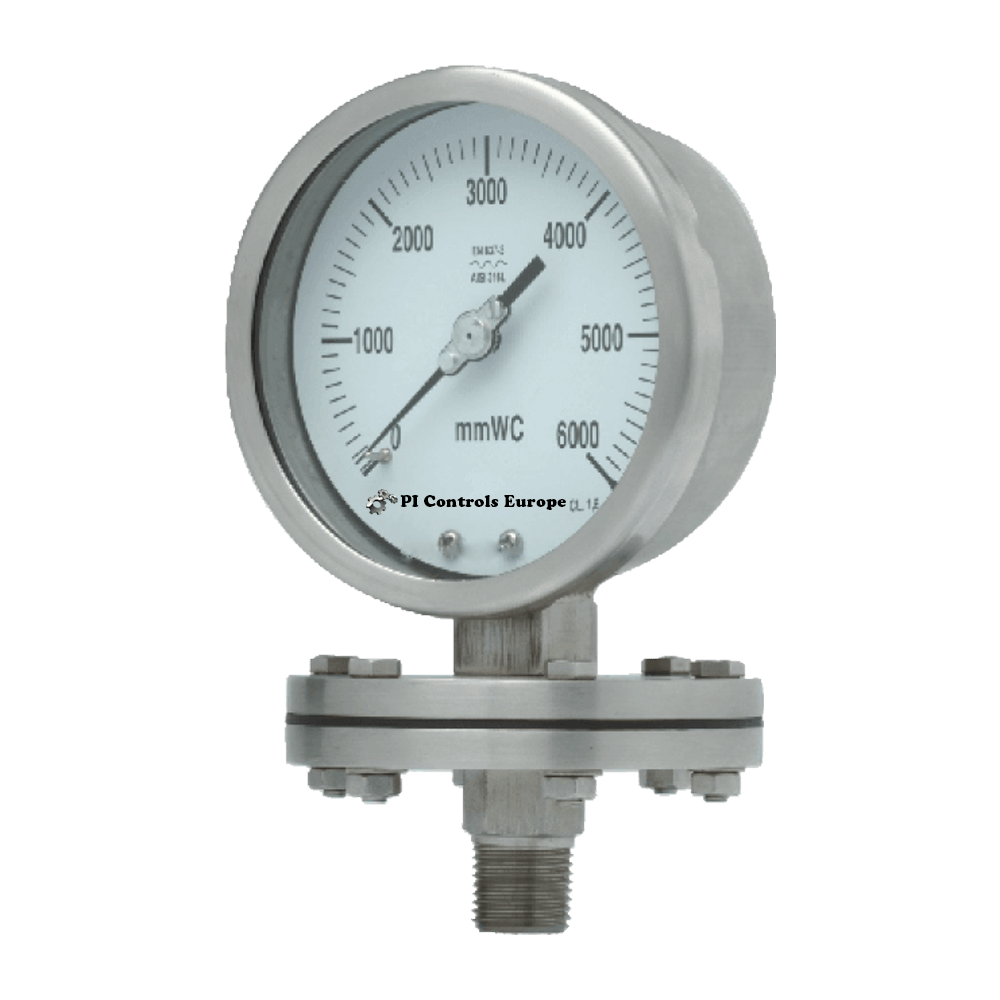

PI-P602
PI Controls Europe - All SS pressure gauge, diaphragm type, low-medium pressure
Pressure Gauge - Diaphragm
- Dial size :DN100 / DN150
- Process connection :½" NPT (M) / ½" BSP (M)
- Ingress protection :IP 54
- Execution :Dry

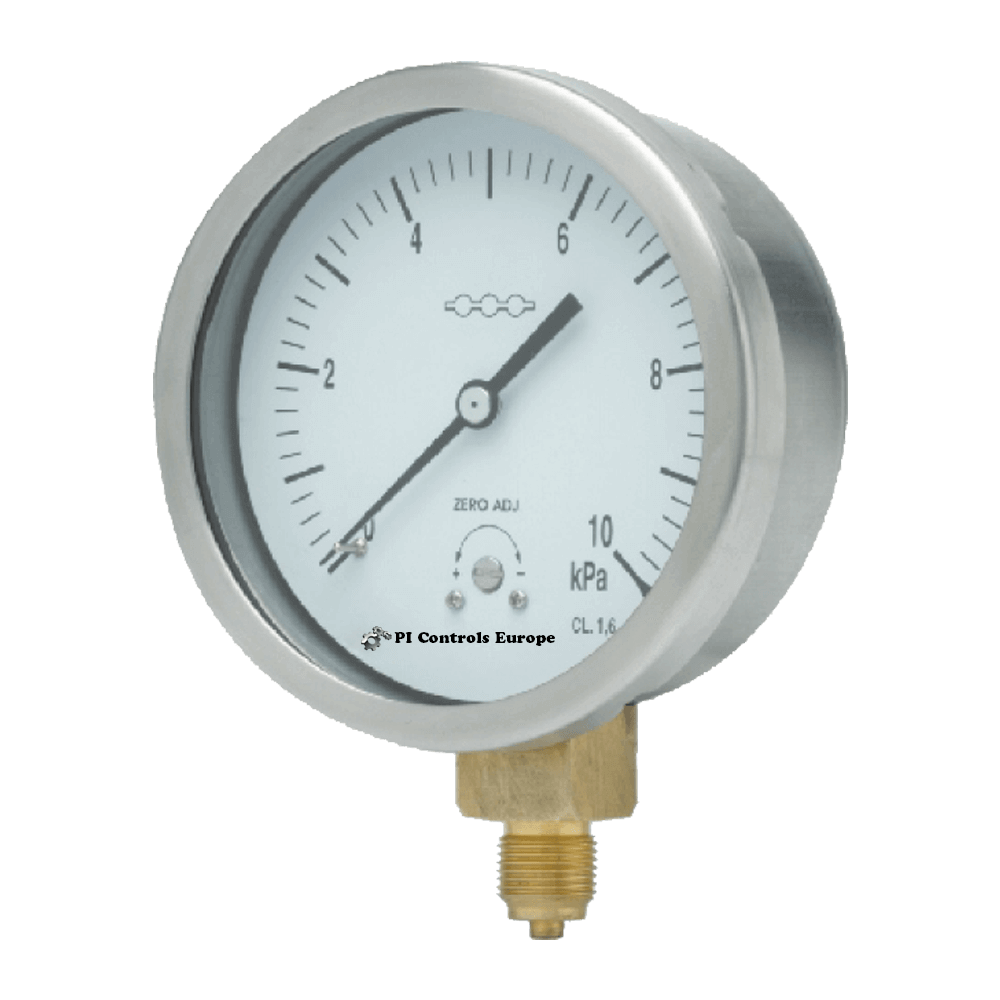

PI-P603
PI Controls Europe - SS case brass pressure gauge, capsule
Pressure Gauge - Diaphragm
- Dial size :DN63 / DN100 / DN125 / DN150
- Range :-600...25...600 mbar
- Process connection :½" NPT (M) / ½" BSP (M)
- Ingress protection :IP 54

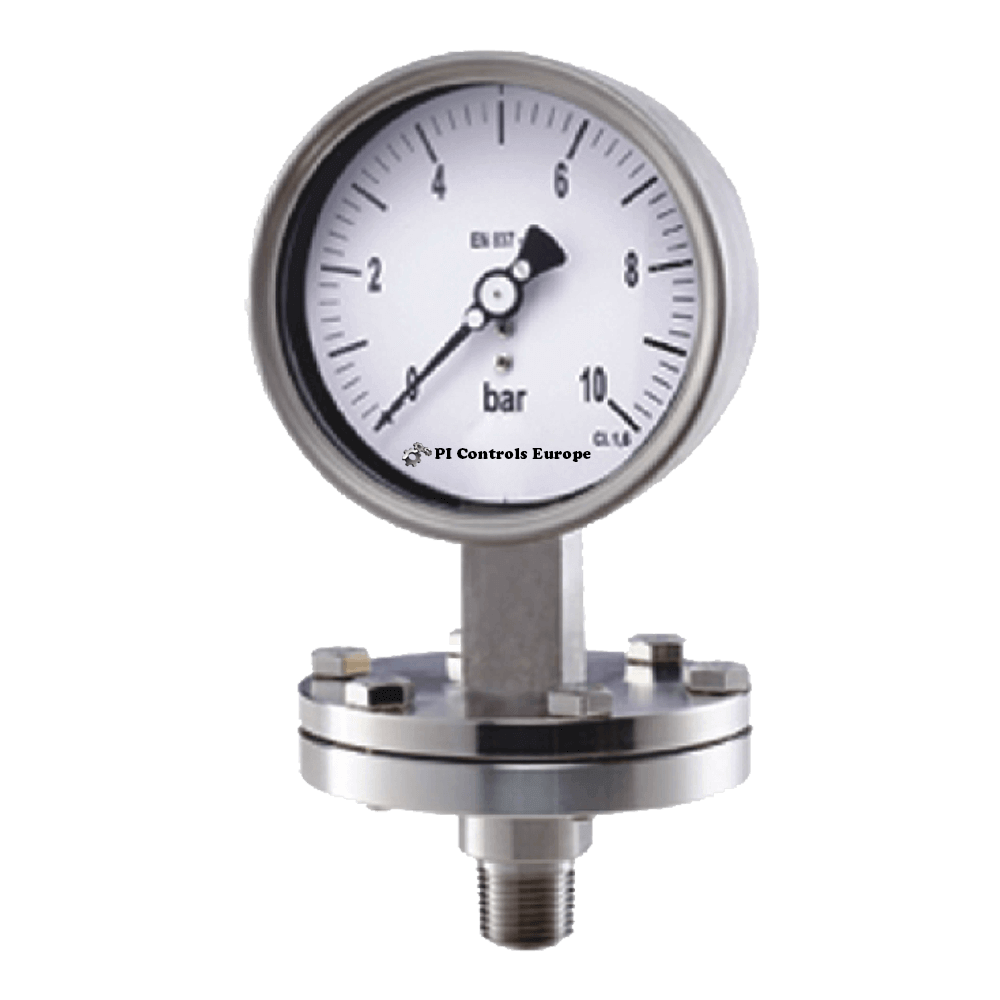

PI-P604
PI Controls Europe - All SS pressure gauge, diaphragm type, low pressure
Pressure Gauge - Diaphragm
- Dial size :DN100 / DN150
- Process connection :½" NPT (M) / ½" BSP (M)
- Ingress protection :IP 65 - EN 60529 / IEC 529
- Execution :Dry
Pressure Gauge - Diaphragm Sealed

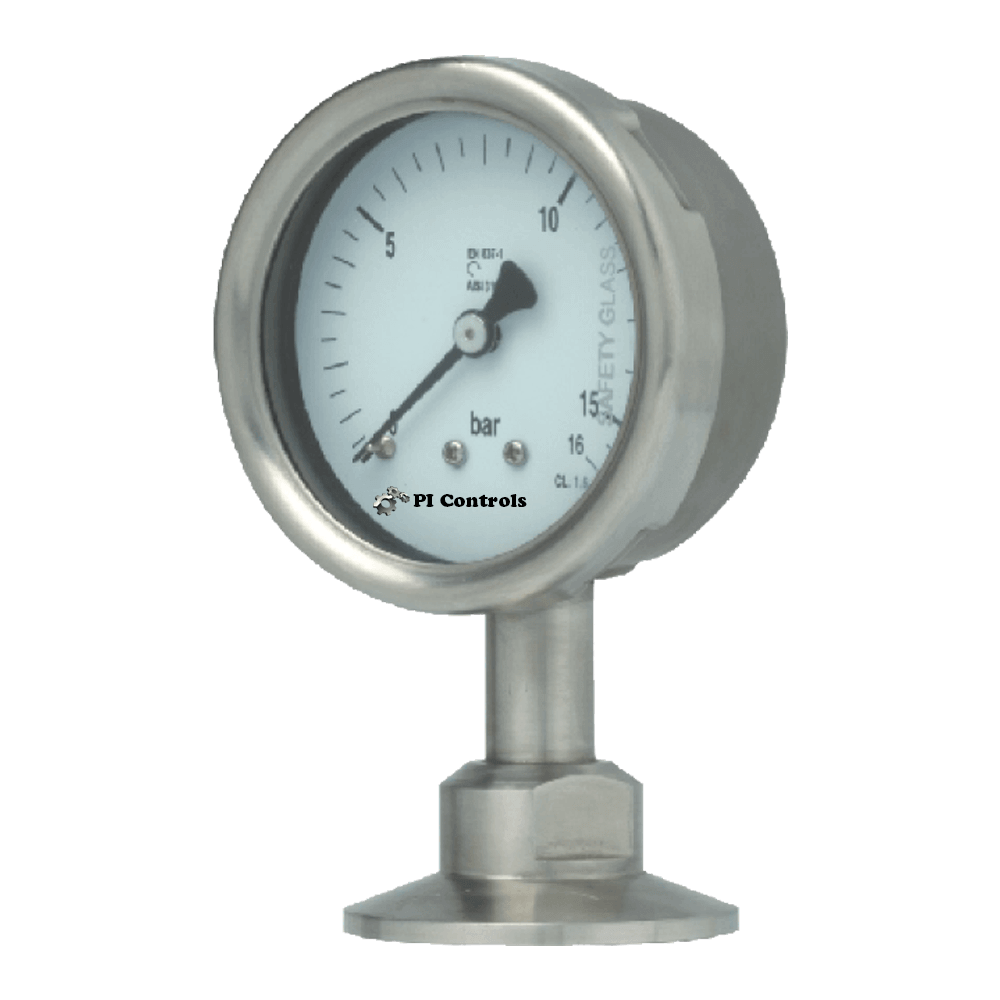

PI-P701
PI Controls Europe - Sanitary pressure gauge, diaphragm seal
Pressure Gauge - Diaphragm Sealed
- Dial size :DN50 / DN63 / DN100
- Range :-1…40 bar
- Process connection :1½" Sanitary connection
- Seal filling fluid :Glycerine [10°C to 150°C]

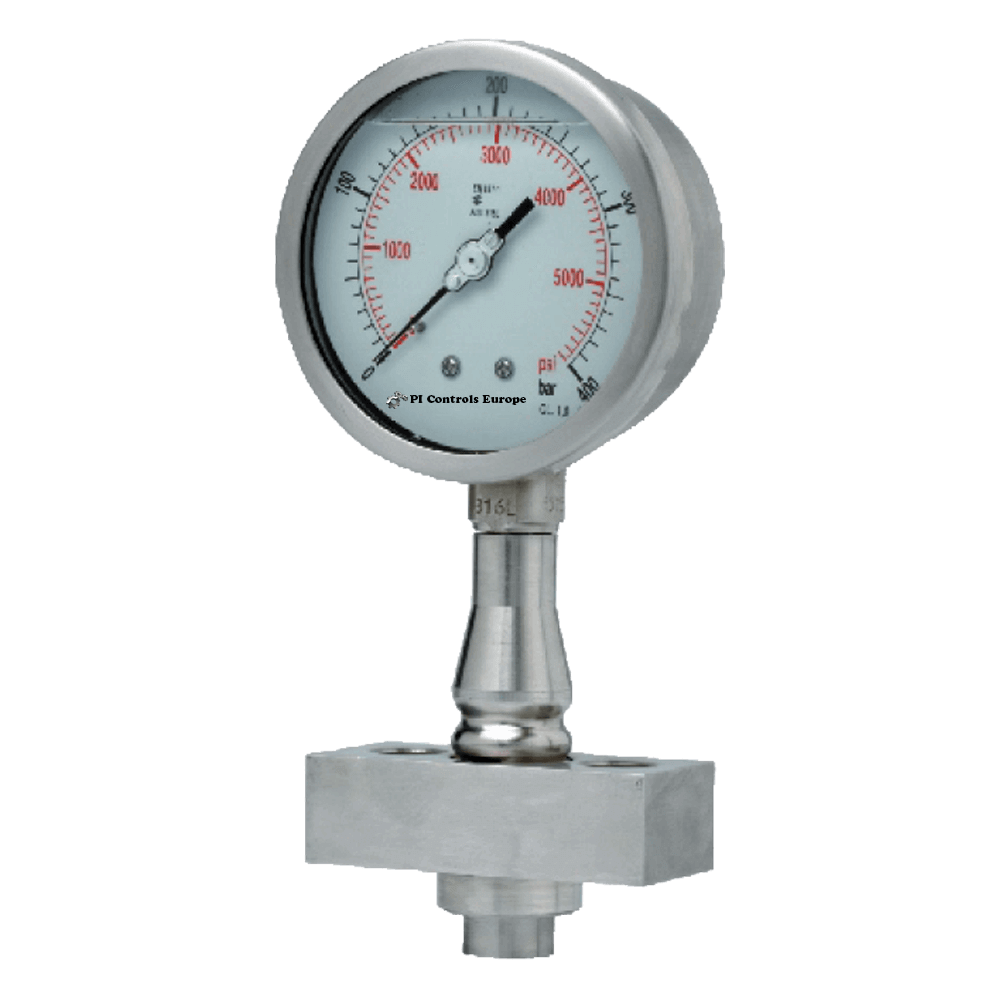

PI-P702
PI Controls Europe - Sanitary pressure gauge, diaphragm seal
Pressure Gauge - Diaphragm Sealed
- Dial size :DN100
- Process connection :With mounting flange
- Seal filling fluid :Food grade oil
- Execution :Dampening liquid filled, glycerine

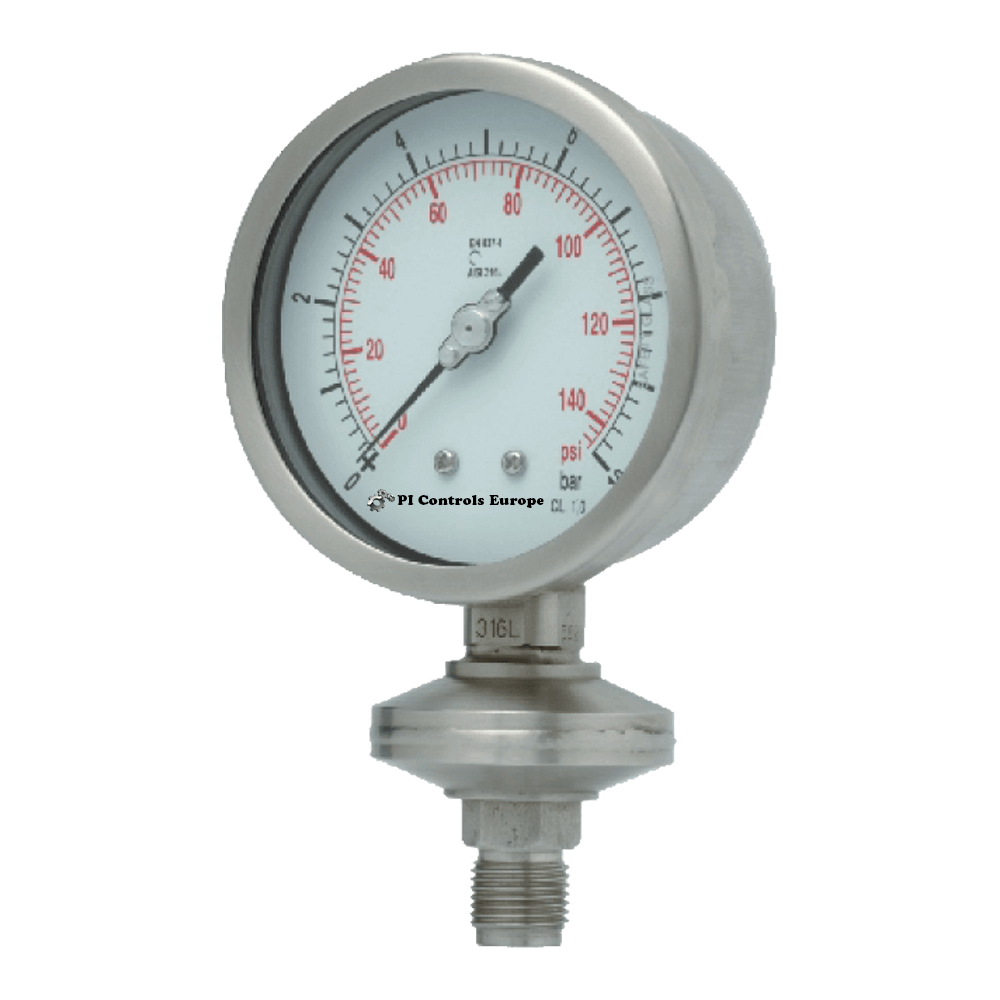

PI-P703
PI Controls Europe - Integral diaphragm seal gauge, threaded
Pressure Gauge - Diaphragm Sealed
- Dial size :DN100
- Range :4…70 bar
- Process connection :½" NPT (M) / ½" BSP (M)
- Seal filling fluid :Silicon DC 200

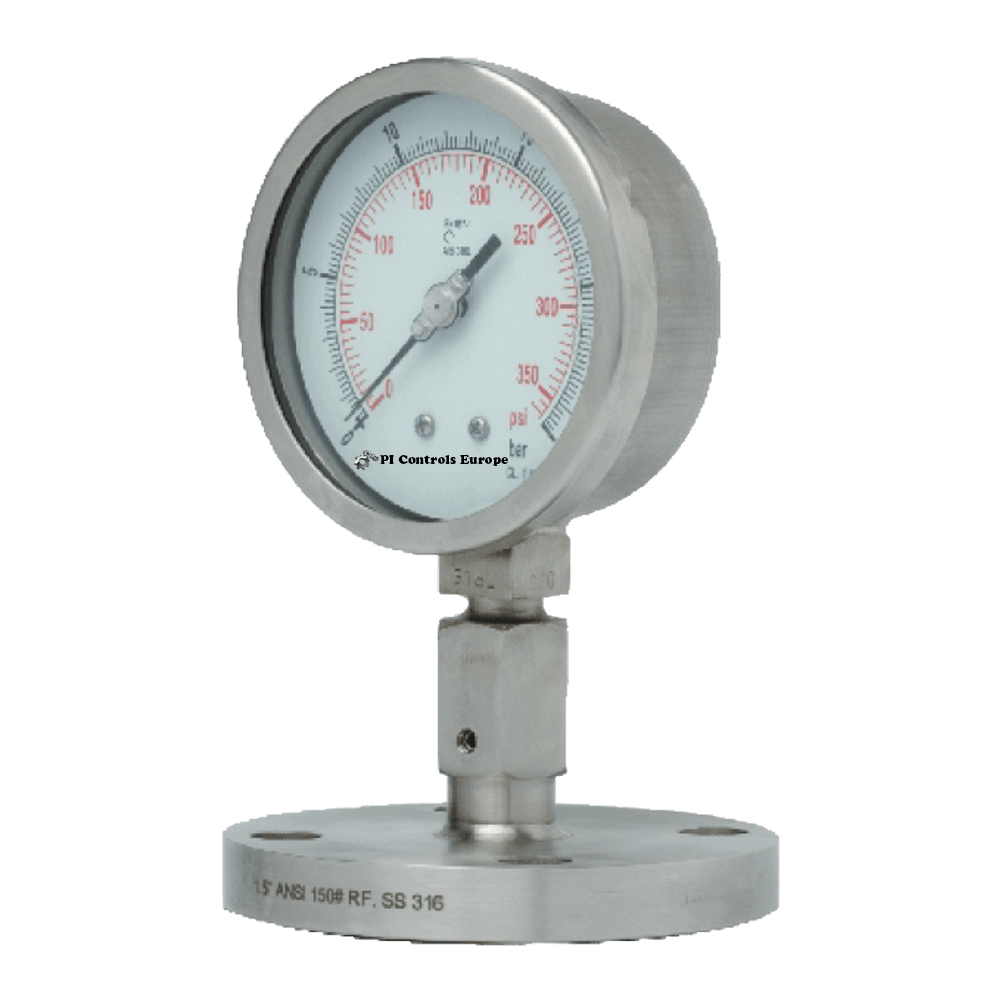

PI-P704
PI Controls Europe - Integral diaphragm seal gauge, flanged
Pressure Gauge - Diaphragm Sealed
- Dial size :DN100 / DN150
- Range :-1…400 bar
- Seal filling fluid :Silicon DC 200
- Execution :Dry, IP 65

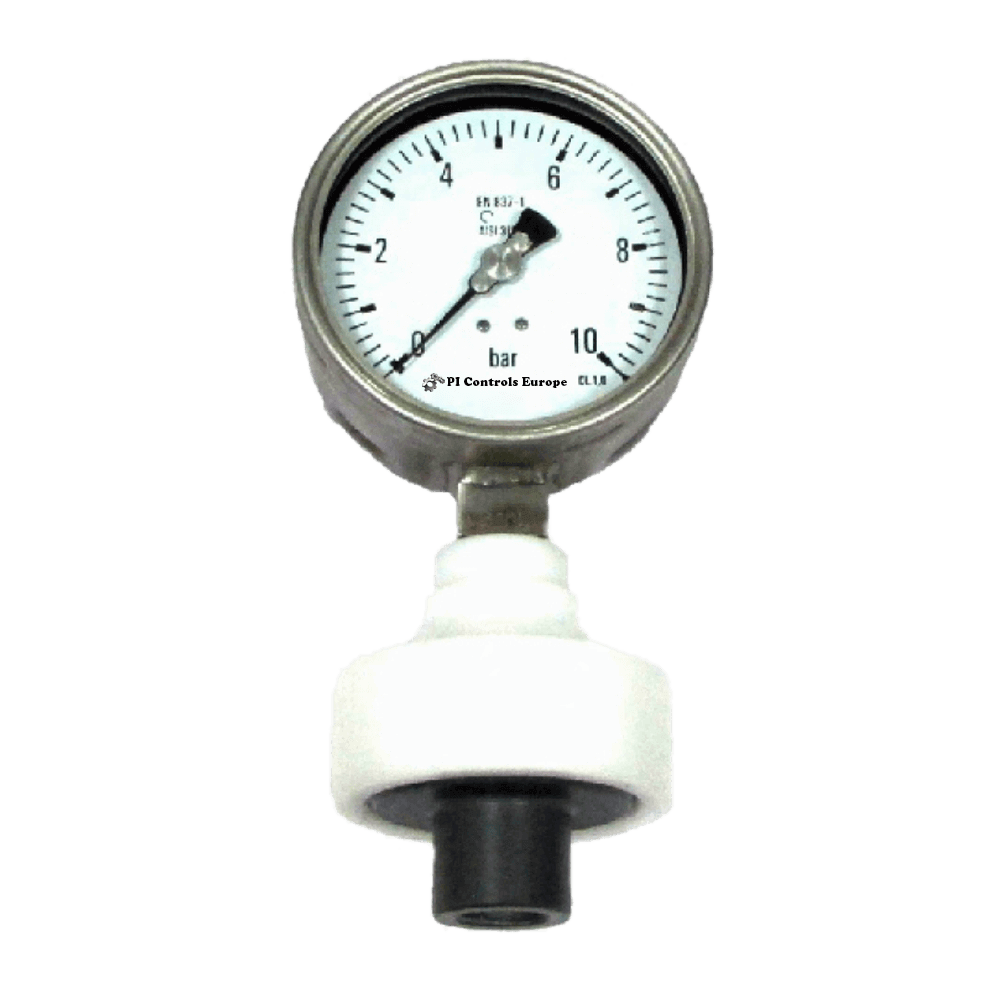

PI-P705
PI Controls Europe - Plastic diaphragm seal gauge, threaded
Pressure Gauge - Diaphragm Sealed
- Dial size :DN100 / DN150
- Range :0...1bar to 0…10 bar
- Process connection :½" NPT (F) / ½" BSP (F)
- Seal filling fluid :Silicon DC 200
Pressure Gauge - Customized

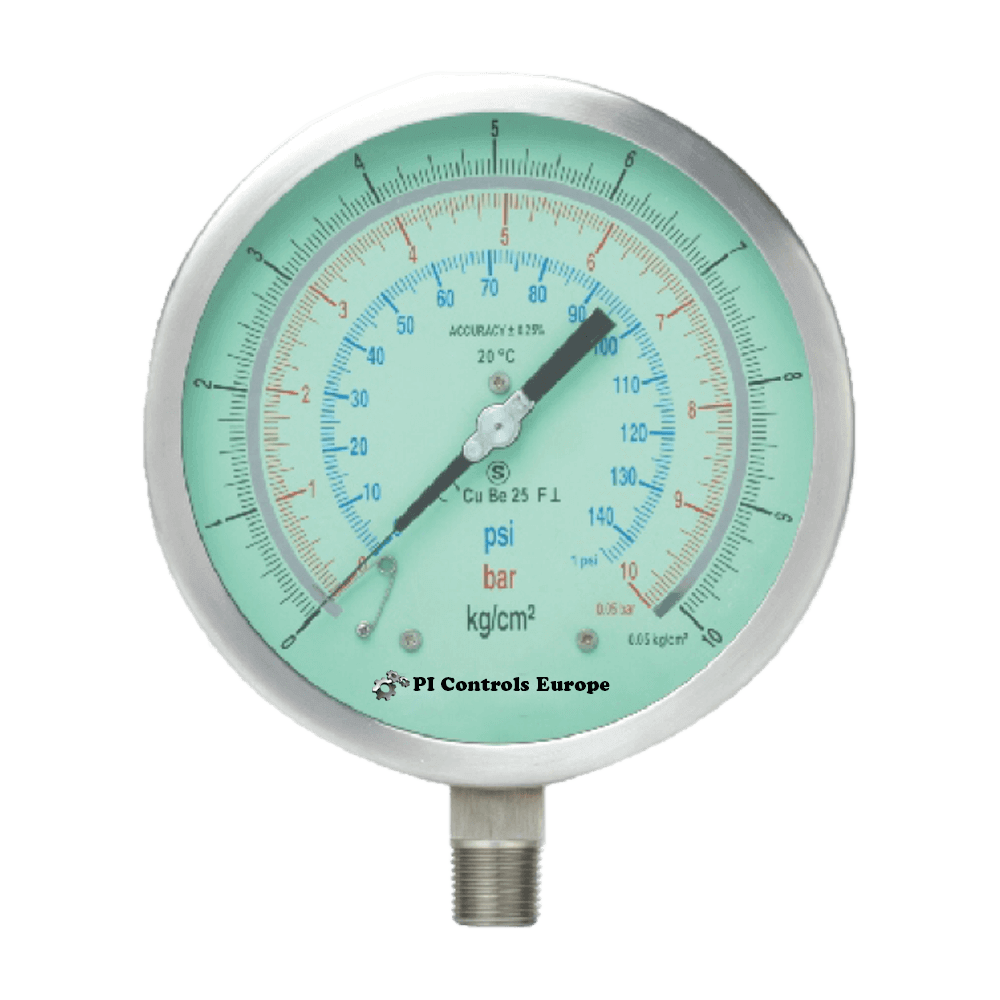

PI-P801
PI Controls Europe - SS case test gauge (Acc. ±0.25%)
Pressure Gauge - Customized
- Dial size :DN 150 / DN250
- Range :-1…700 bar
- Process connection :½" NPT (M) / ½" BSP (M)
- Carrying case :Pine wood carrying case

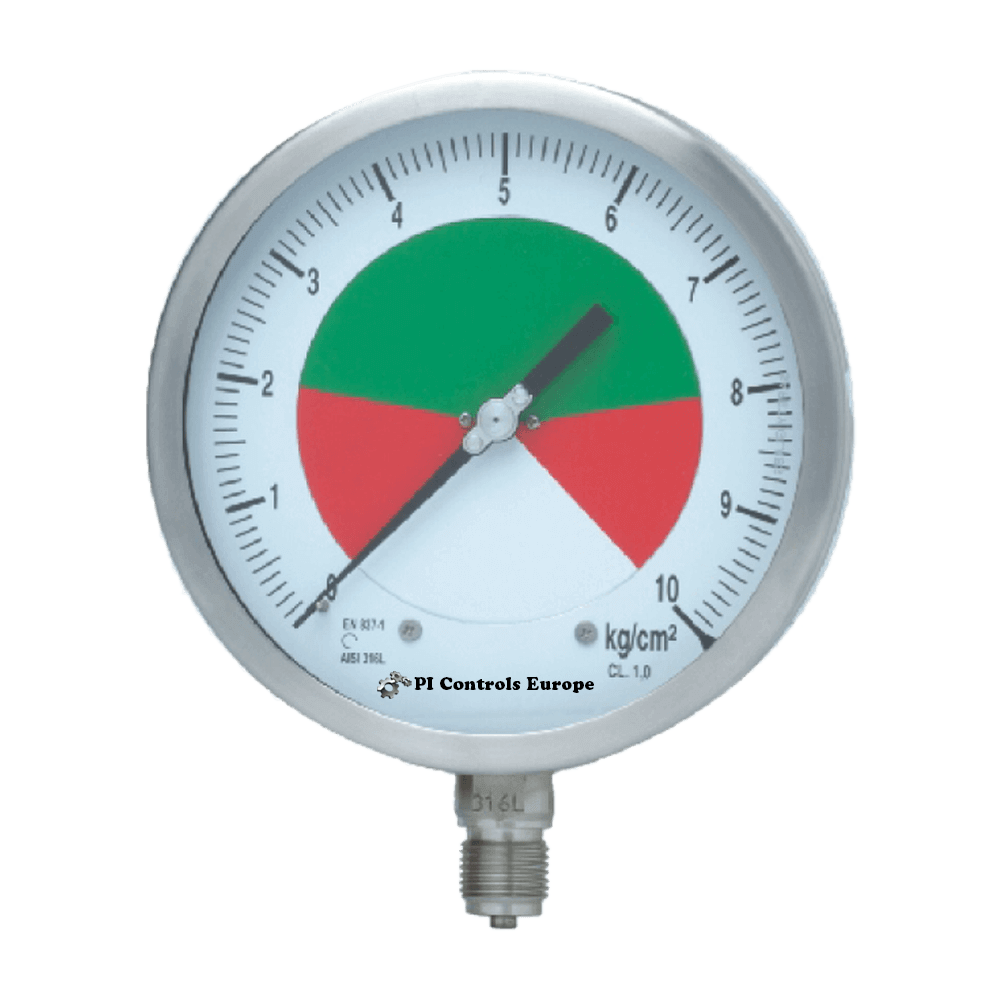

PI-P802
PI Controls Europe - Adjustable deadband pressure gauge
Pressure Gauge - Customized
- Accuracy :CL 1.0
- Dial size :DN100 & DN150
- Range :-1...2,100 bar
- Process connection :½" NPT (M) / ½" BSP (M)

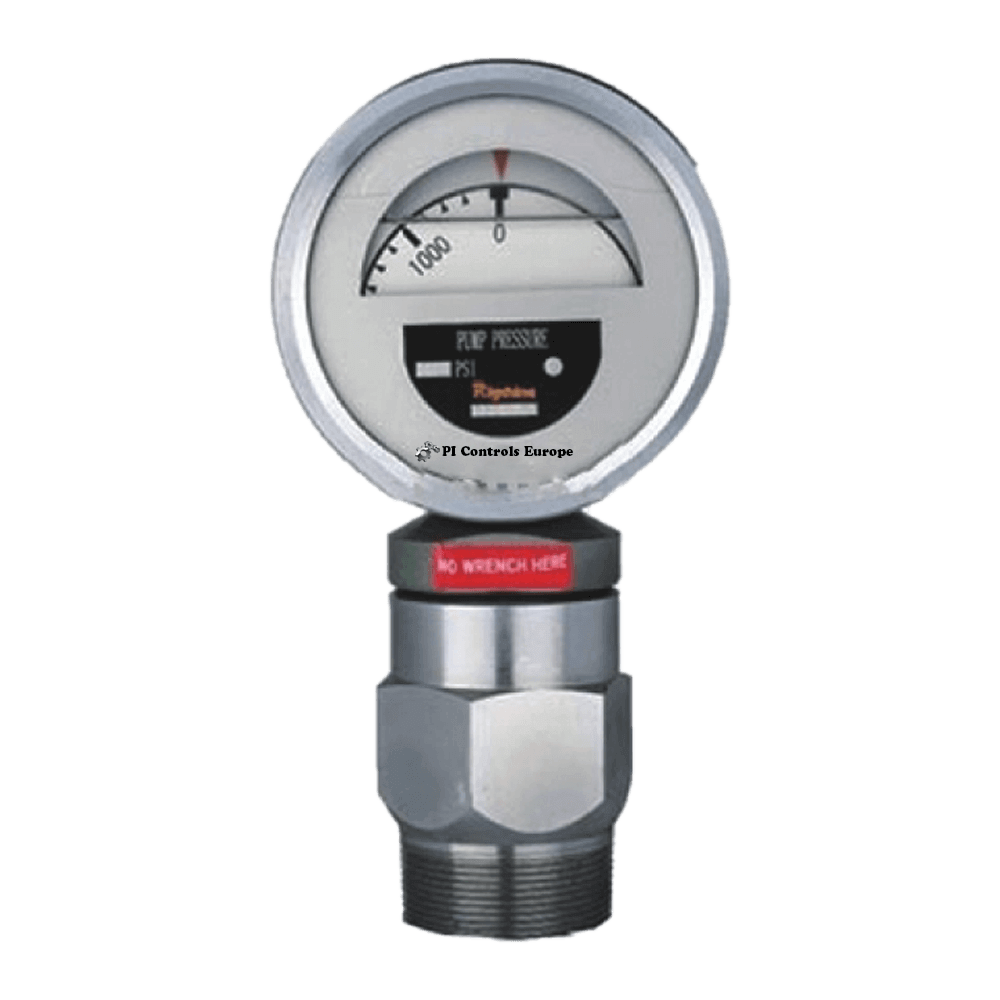

PI-P803
PI Controls Europe - Mud gauge
Pressure Gauge - Customized
- Dial size :DN100
- High Ranges :0…600 bar & 0…800 bar
- Process connection :2" NPT (M)
- Execution :Dampening liquid filled, glycerin

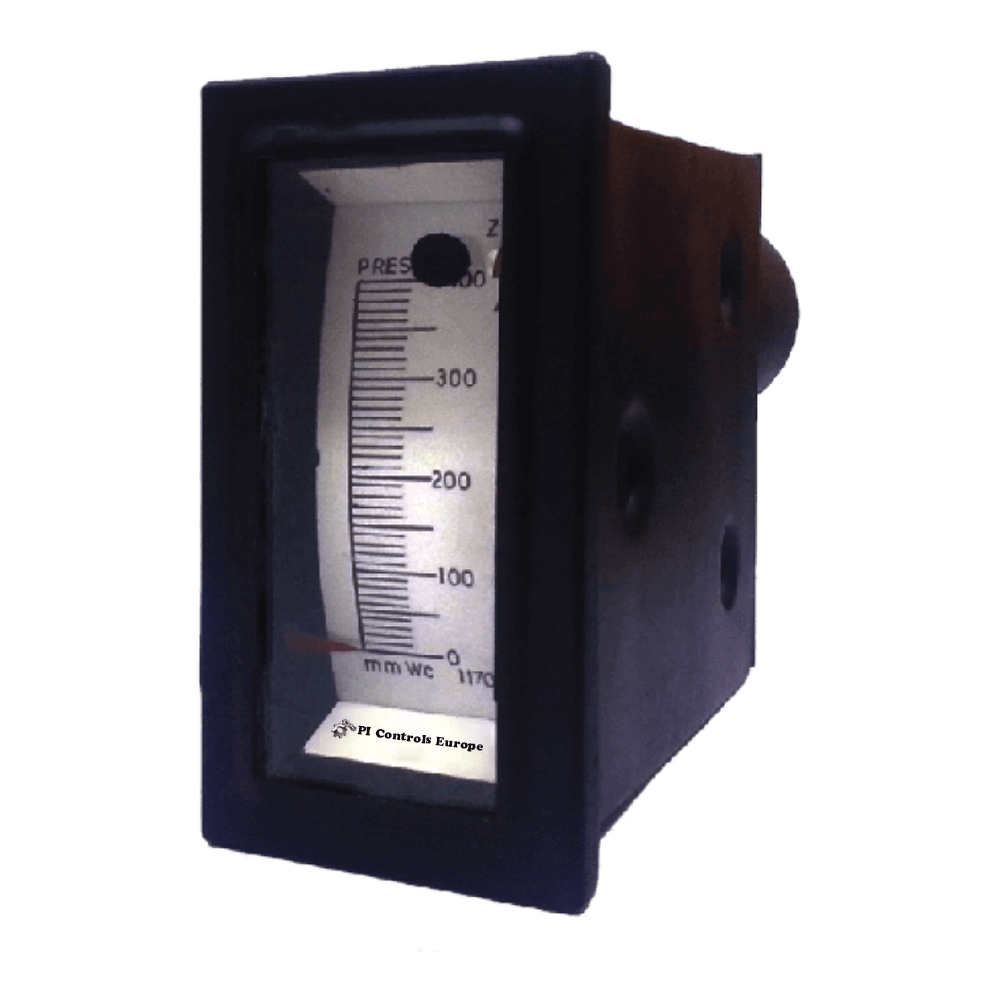

PI-P804
PI Controls Europe - Edge wise draft gauge
Pressure Gauge - Customized
- Dial size :150 x 78 mm / 200 x 104 mm
- Range :-6,000…6,000 mmWC
- Process connection :¼" BSP (M)
- Execution :Dry
Pressure Gauge - Utility

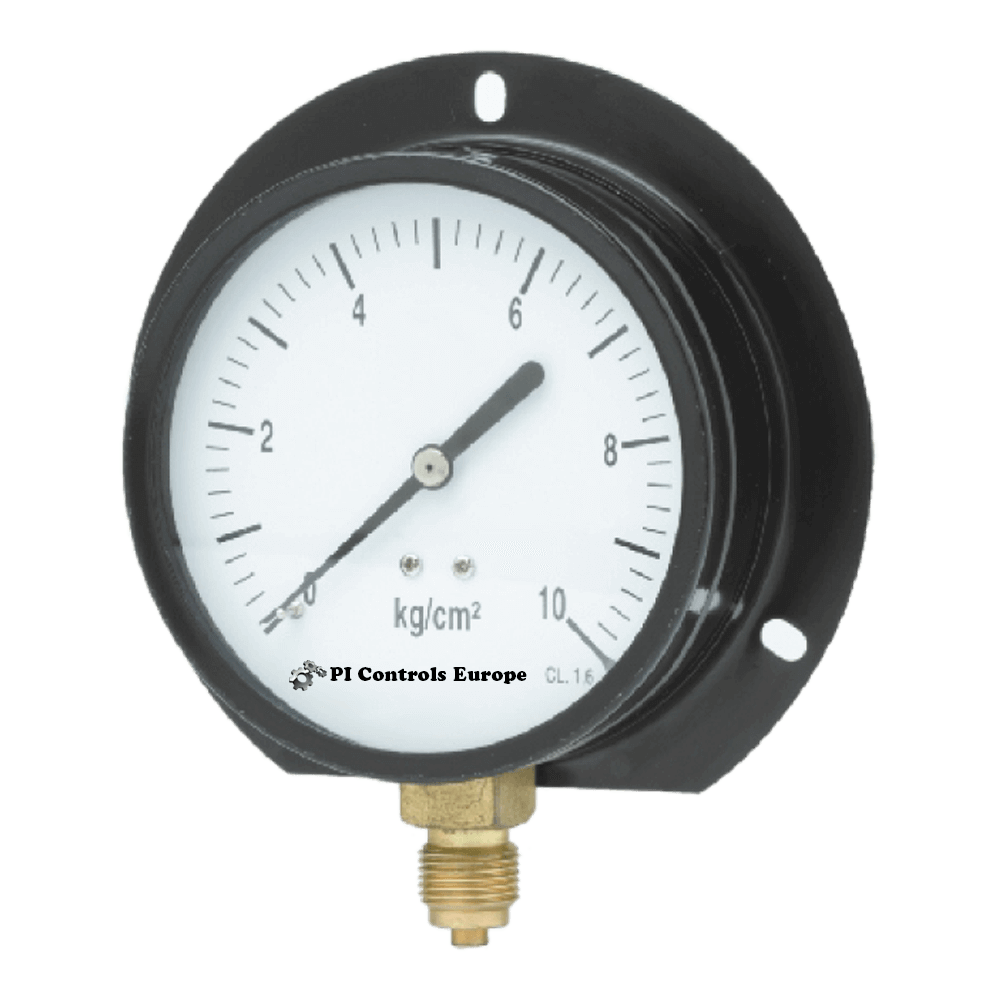

PI-P901
PI Controls Europe - Utility pressure gauge
Pressure Gauge - Utility
- Dial size: DN25 / DN40 / DN50 / DN63 / DN80 / DN100 / DN150 / DN250
- Ranges :-1…700 bar (DN100 & above)
- Process connection :¼" NPT (M) / ¼" BSP (M)
- Execution :Dry, IP 54

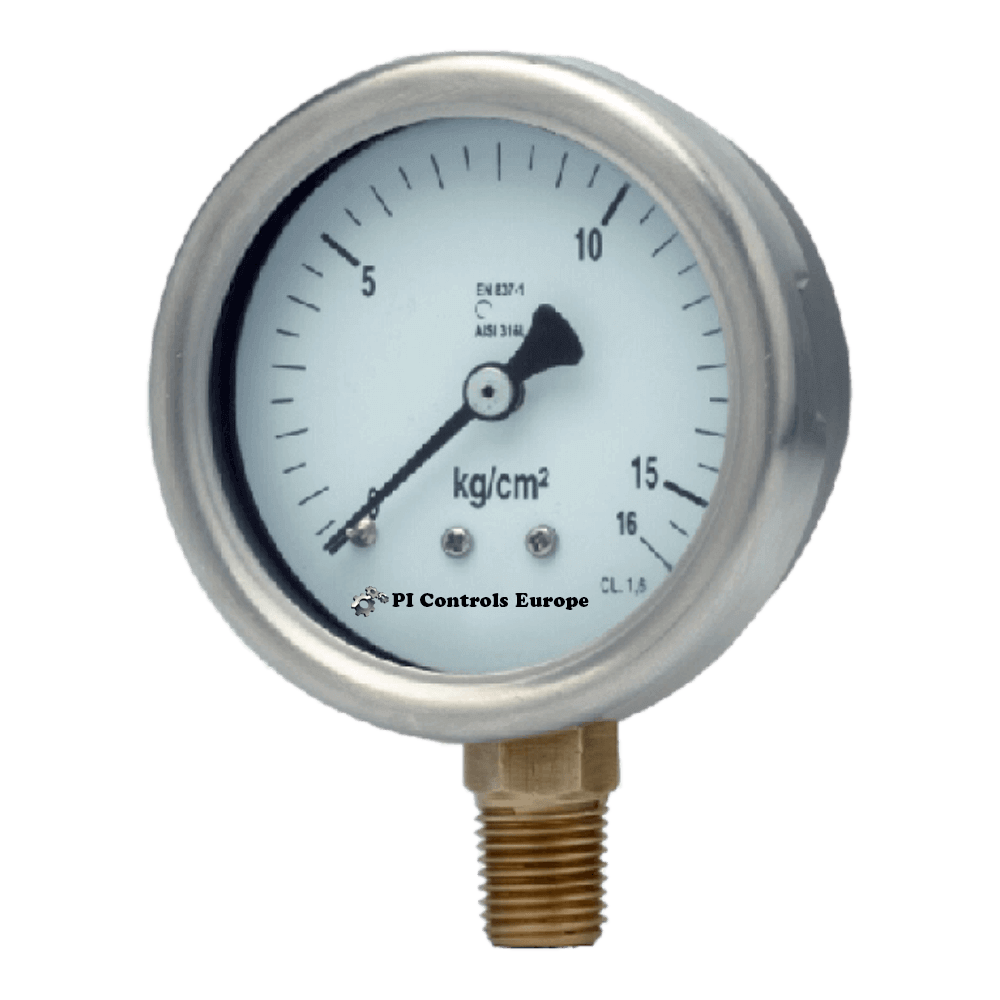

PI-P902
PI Controls Europe - SS case brass pressure gauge
Pressure Gauge - Utility
- Dial size :DN50 / DN63 / DN80 / DN100
- Range :-1…400 bar (DN50), -1…1,000 bar (DN63/DN80/DN100)
- Process connection :¼" NPT (M) / ¼" BSP (M)
- Ingress protection :IP 65

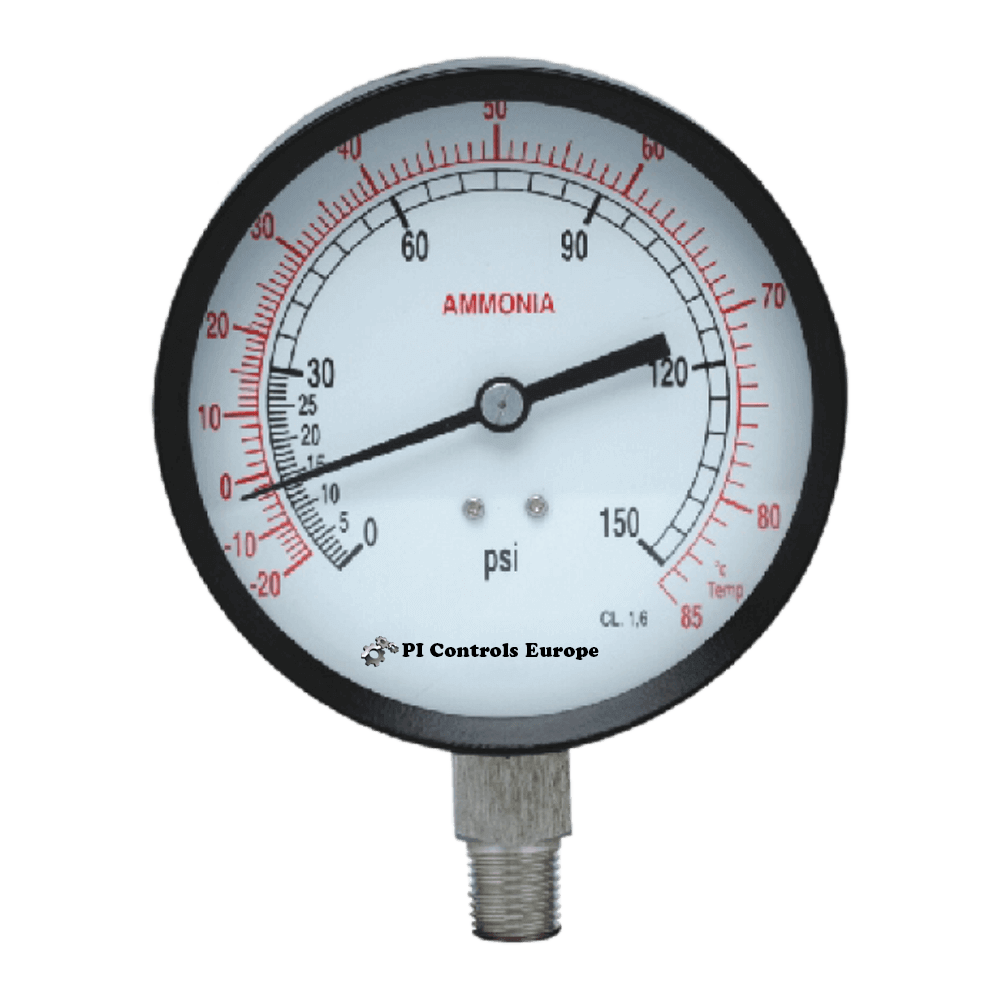

PI-P903
PI Controls Europe - Ammonia pressure gauge
Pressure Gauge - Utility
- Dial size :DN63 / DN100
- Ammonia Ranges :-1…12.5 bar, -1…16 bar, -1…25 bar
- Mounting pattern :Direct, Bottom connection
- Process connection :¼" NPT (M) / ¼" BSP (M)

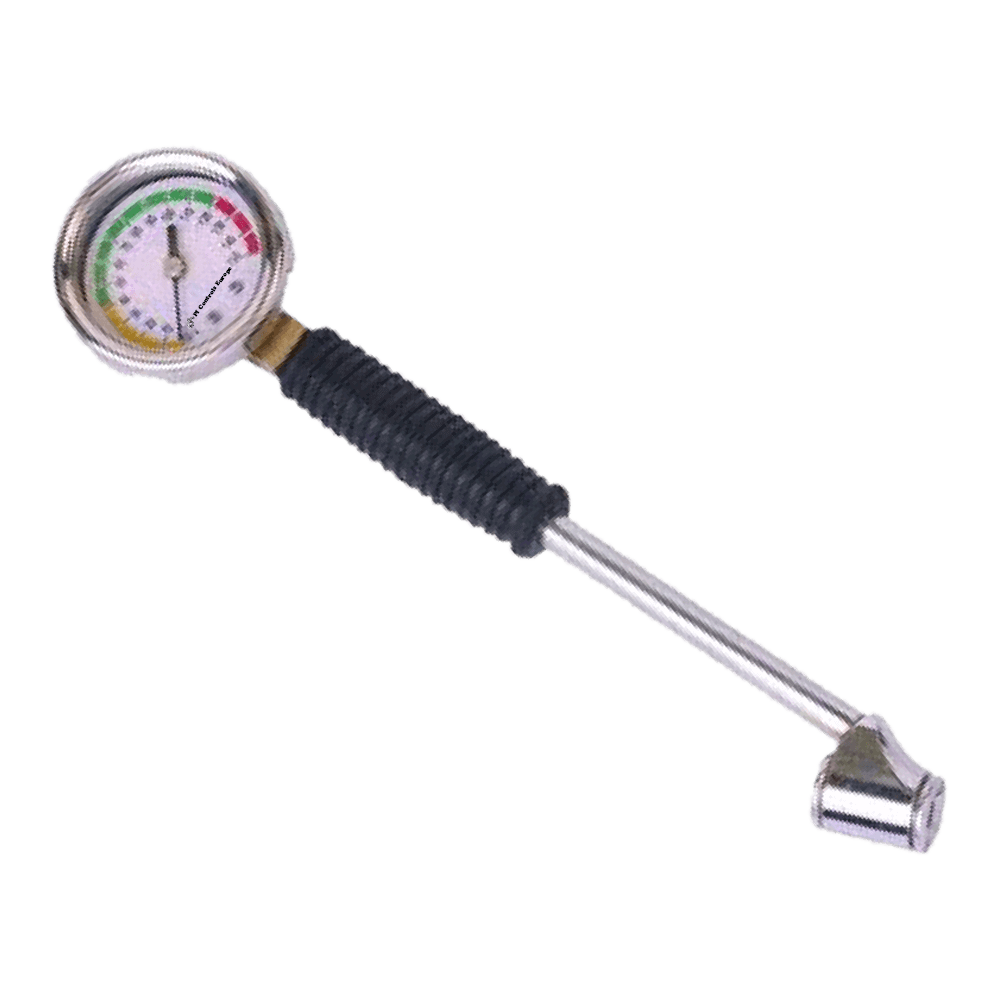

PI-P904
PI Controls Europe - Tyre pressure gauge
Pressure Gauge - Utility
- Dial size :DN50 / DN63
- Range :0…30 psi, 0…60 psi, 0…100 psi, 0…150 psi, 0…220 psi
- Mounting pattern :Direct, Bottom connection
- Process connection :Twin connection

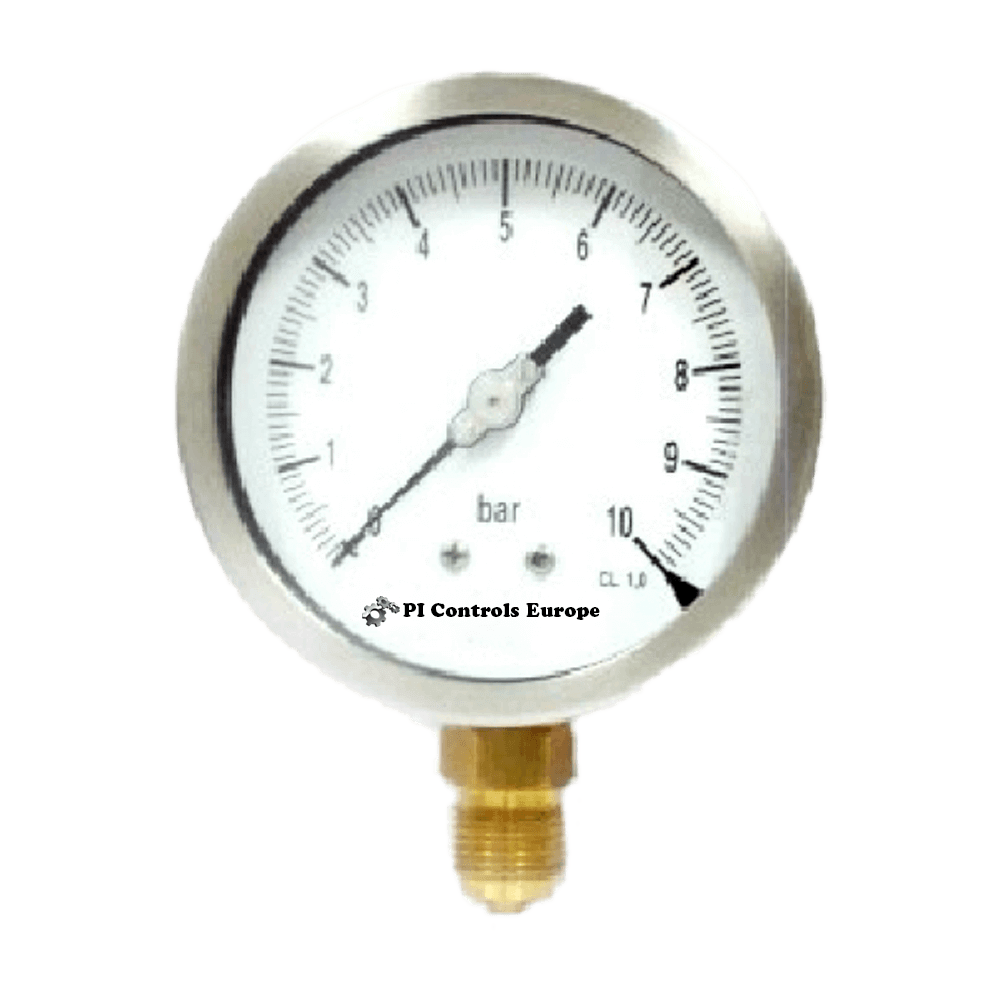

PI-P905
PI Controls Europe - SS case brass pressure gauge
Pressure Gauge - Utility
- Dial size :DN100
- Range :-1...0...400 bar
- Process connection :½" NPT (M)/½" BSP (M)
- Ingress protection :IP 54 / IP 65

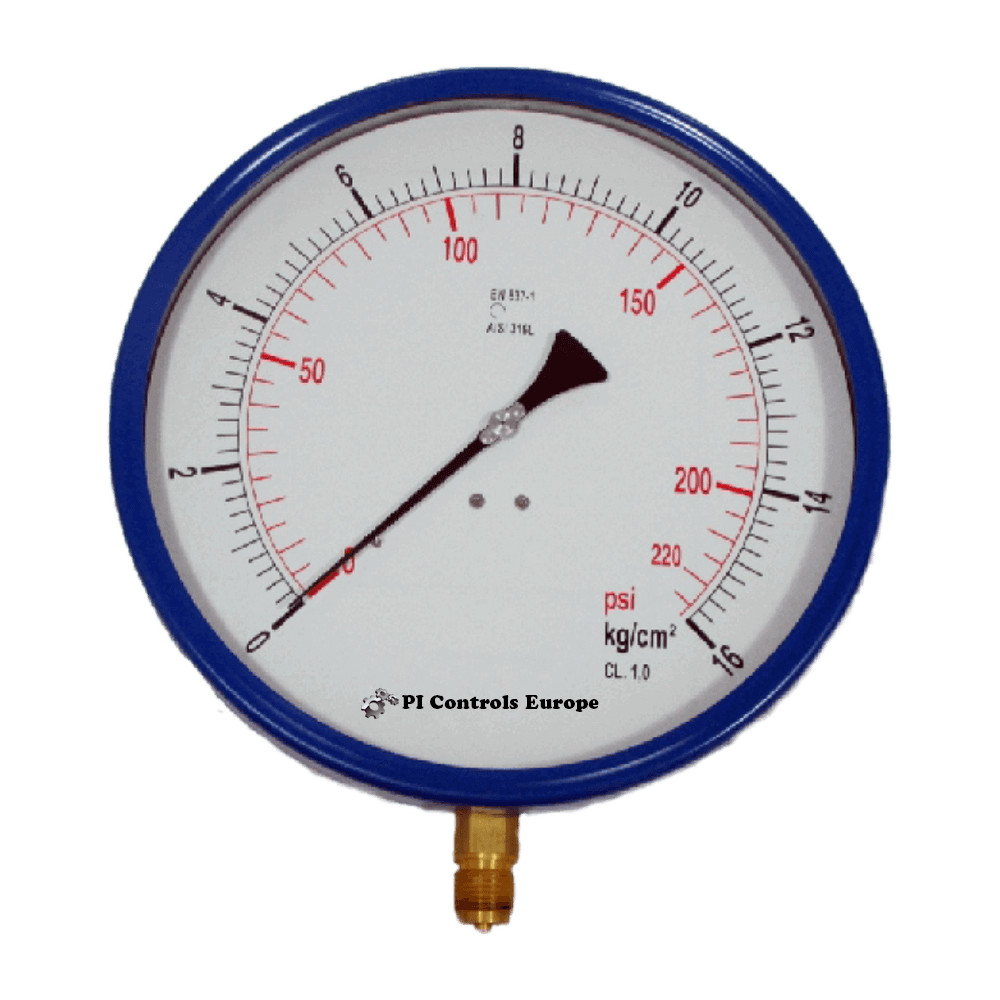

PI-P906
PI Controls Europe - Steel case brass pressure gauge, Economical
Pressure Gauge - Utility
- Dial size :DN250
- Range :-1...0...2,000 bar
- Process connection :½" NPT (M)/½" BSP (M)
- Ingress protection :IP 54
Pressure Gauge - Digital Manometer

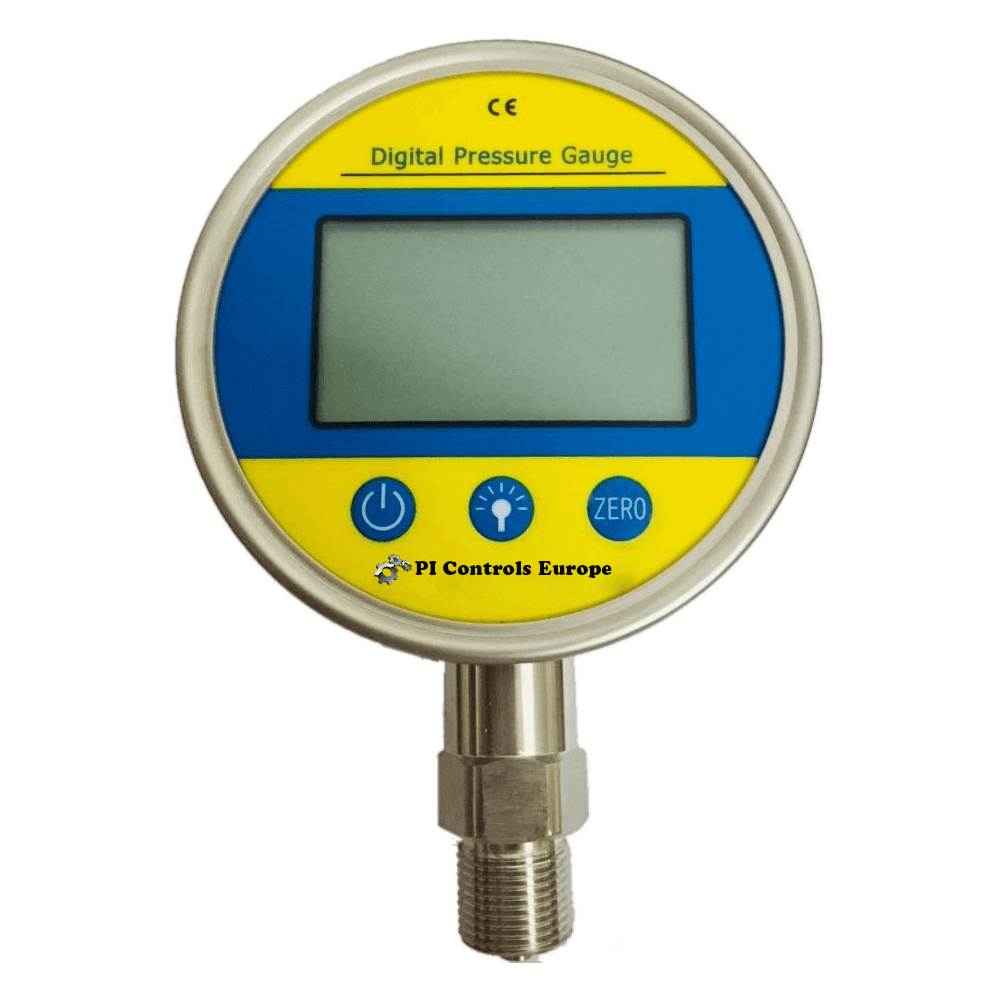

PI-UIY6
PI Controls Europe - Digital Pressure gauge
Pressure Gauge - Digital Manometer
- Pressure Range: -1...0~~0.1...1000 bar
- Accuracy: 0.1%FS,0.25%FS(standard), 0.5%FS
- Process connection: ½ bsp& ½” npt
- LCD display 4-digit
- Battery power supply: 9V DC
- Oil & Gas Sector
- Chemical Industry
- Pharmaceutical Industry
- Water Treatment Industry
- Paper Pulp industry
- Fertilizer Industry
- Food Processing Companies
- Engineering Works
- Fabricators
- Shipbuilding & Marine
- Steam & Power Generation
- Refrigeration & Air Conditioning
