Smart Pressure Transmitter
- Product: Pressure Transmitter
- Precision: 0.075% of Span for all ranges
- Repeatability: 40:1 for all models
- Stability : ± 0.15% of URL
- Over Pressure: 7500 PSI

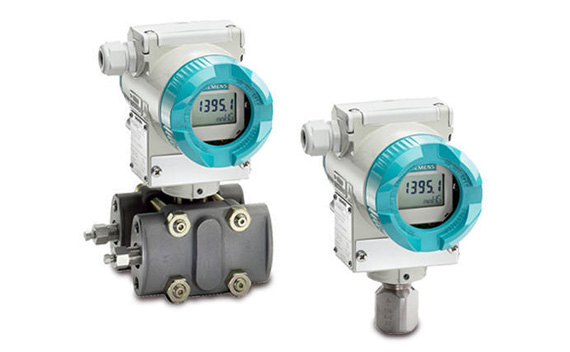

Smart Differential Pressure Transmitter
- Product: Differential Pressure Transmitter
- Sensing: Direct Digital Capacitance Sensing
- High Precision Performance: 0.075%, Ultra Performance:0.03%
- Stability Standard : ± 0.15% of URL - Guaranteed for 7 Years
- High Performance : ± 0.2% of URL - Guaranteed for 12 Years
- Over Pressure: Support DD, EDDL and FDT/DTM

Miniature Pressure Transmitter
- Over Pressure: Support DD, EDDL and FDT/DTM
- Product: Pressure Transmitter
- Range: Vacuum to 2200 bar
- Long Term Drift: 0.25% FS/YR (non-cumulative)
- Wetted Parts: 17-4 PH Stainless Steel
- Supply Voltage: 8-30 Vdc
- Output (2-wire): 4-20 mA / 0-10 V / 1.5 V
FOR EXTREME HIGHER & LOWER PRESSURE RANGES,ATEX, DNV-GL,IECEX APPROVED, PLEASE REFER BELOW PRODUCTS OF OUR PRINCIPAL ESI TECHNOLOGY UK
-
GD4200-USB
Dynamic Pressure Transducer
1,000 Hz sample rate, digital USB interface for use with Windows© operating system, Silicon-on-Sapphire sensor, high accuracy option, pressure ranges options up to 5,000 bar, choice of process connections, titanium/ stainless steel. -
GS4000
Series General Purpose Pressure Transmitters
Compact, pressure ranges up to 700 bar, choice of outputs and connections, all stainless steel. -

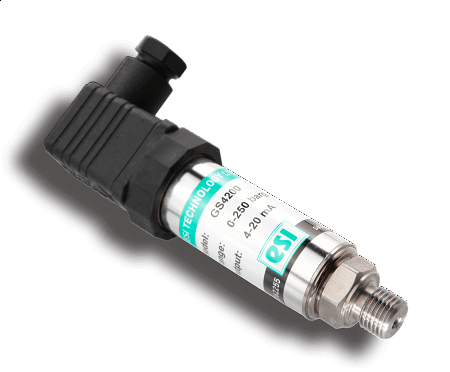

GS4200
Series General Purpose Pressure Transmitter
Silicon-on-Sapphire sensor, high accuracy option 0.1%, pressure ranges up to 1500 bar, choice of outputs and connections, ATEX/ IECEx and DNV GL certification available. -
GS4200-USB
Digital Pressure Transducer
5 Hz sample rate, digital USB interface for use with Windows© operating system, Silicon-on-Sapphire sensor, high accuracy option, pressure ranges options up to 4,000 bar, choice of process connections, titanium/ stainless steel. -
HI2000
High Specification Pressure Transducer
High specification, high accuracy 0.1%, Silicon-on-Sapphire sensor, pressure ranges to 1500 bar, voltage output options, choice of connections, ATEX/ IECEx certification available. -

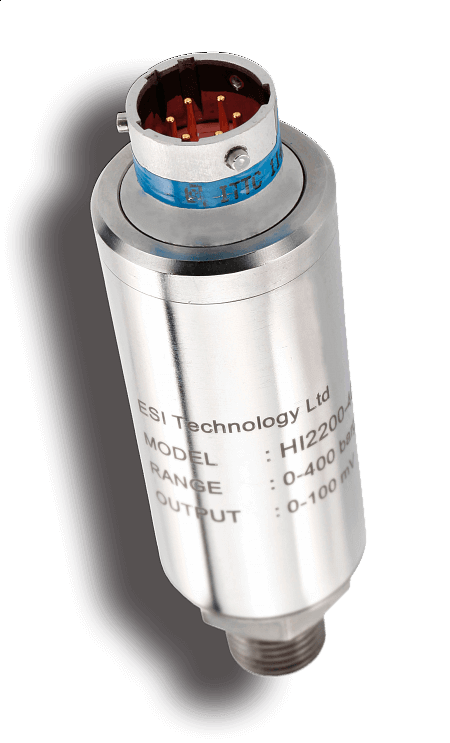

HI2200
High Temperature Pressure Transducer
High temperature 200°C, Silicon-on-Sapphire sensor, high accuracy 0.1%, pressure ranges up to 1500 bar, voltage output options, choice of threads. -

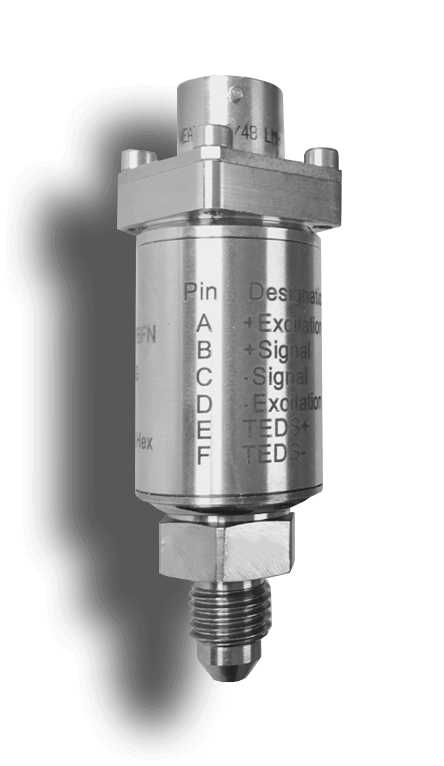

HI3000 TEDS
High Specification TEDS Pressure Transducer
TEDS transducer with on-board EEPROM, Silicon-on-Sapphire sensor, high accuracy 0.1%, pressure ranges up to 6000 psi, 4-20mA output, choice of connections and threads. -
HI5000
Downhole Pressure Transmitter
Introducing the new HI5000 pressure transmitter for oil & gas DOWNHOLE tool applications -
HP1000
Series High Pressure Transmitter
High Pressure range up to 5,000 bar, Silicon-on-Sapphire sensor, high accuracy option 0.1%, choice of outputs, connections and threads, ATEX, IECEx and DNV GL certification available. -

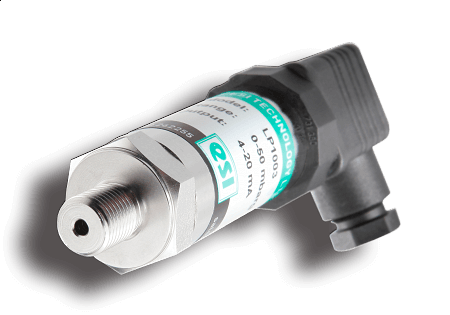

LP1000
Low Pressure Transmitter
Low pressure from 50 mbar, Choice of output, connections and threads -
PR3100
Standard Industrial Pressure Transmitter
Pressure ranges up to 1000 bar, choice of outputs, connections and threads, ATEX/ IECEx certification available. -
PR3110EX
Low Pressure Intrinsically Safe Transmitter
Low pressure intrinsically safe, pressure ranges from 0-100 mbar, 4-20mA output, choice of connections and threads, ATEX, IECEx and DNV GL certification available. -

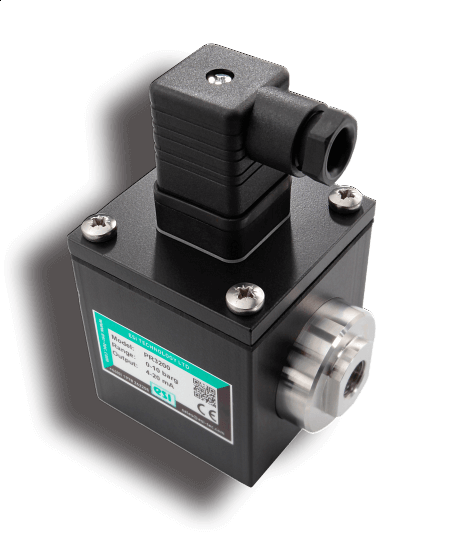

PR3200
High Pressure Differential Transmitter
High pressure differential. Silicon-on-Sapphire sensors, high accuracy option 0.1%, pressure ranges up to 200 barDP, choice of outputs and threads, ATEX/IECEx certification available. -

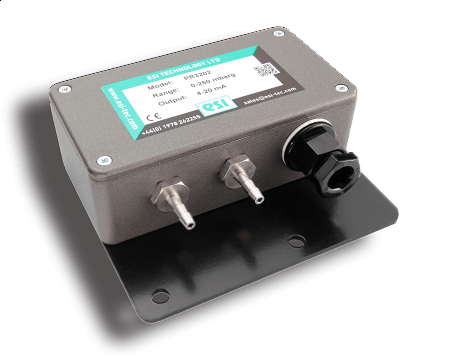

PR3202
Low Pressure Differential
Pressure ranges from 0.25 mbar, choice of outputs and threads, ATEX/IECEx certification available. -

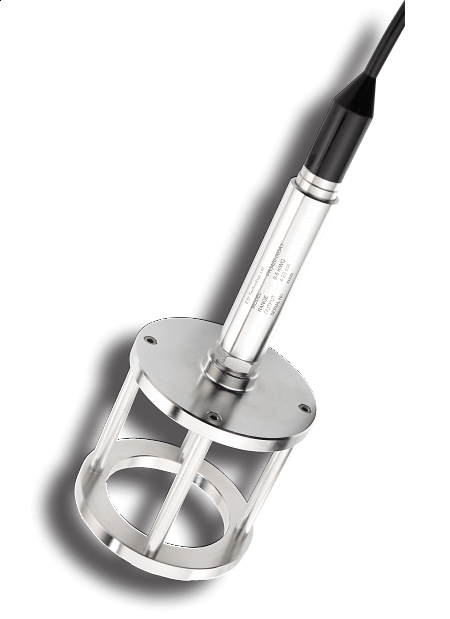

PR3420
Submersible Depth & Level Pressure Transmitter with Sludge Platform
Submersible pressure transmitter with sludge platform, pressure ranges up to 500 mWG, choice of outputs, ATEX/ IECEx certification available. -

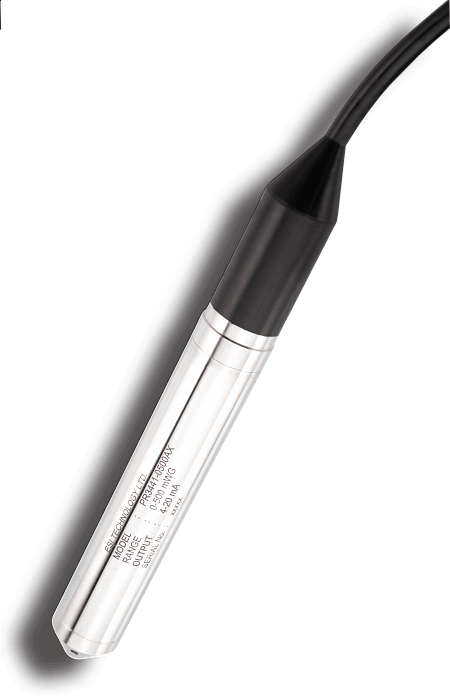

PR3441
Submersible Depth & Level Pressure Transmitter
Submersible pressure transmitter, pressure ranges up to 500 mWG, choice of outputs, ATEX, IECEx and DNV GL certification available. -

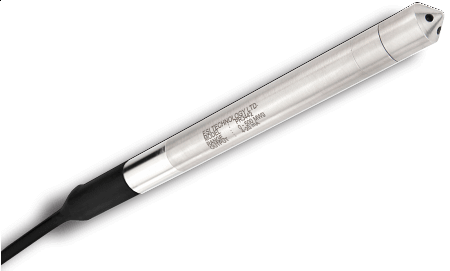

PR3442
Slim Submersible Depth & Level Pressure Transmitter
Slimline submersible pressure transmitter 16.5mm diameter, pressure ranges up to 500 mWG, choice of outputs, ATEX/ IECEx certification available. -
PR3800
Flush Diaphragm Pressure Transmitter
Hygienic barrier seal, pressure ranges up to 100 bar, choice of outputs, connections and threads, ATEX/IECEx certification available. -
PR3850
Flush Diaphragm Pressure Transmitter
Flush diaphragm, pressure ranges up to 400 bar, choice of outputs, connections and threads, ATEX/ IECEx certification available -

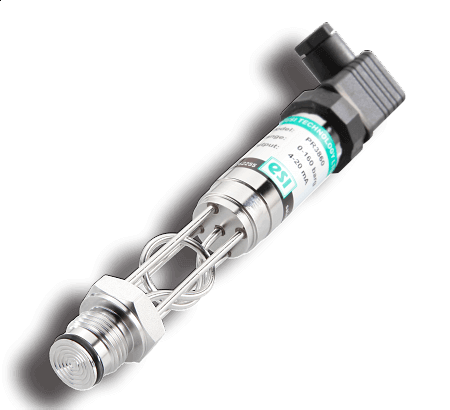

PR3860
High Temperature Flush Diaphragm Pressure Transmitter
High temperature 250°C, flush diaphragm, pressure ranges up to 400 bar, choice of outputs and connections, ATEX/IECEx certification available. -

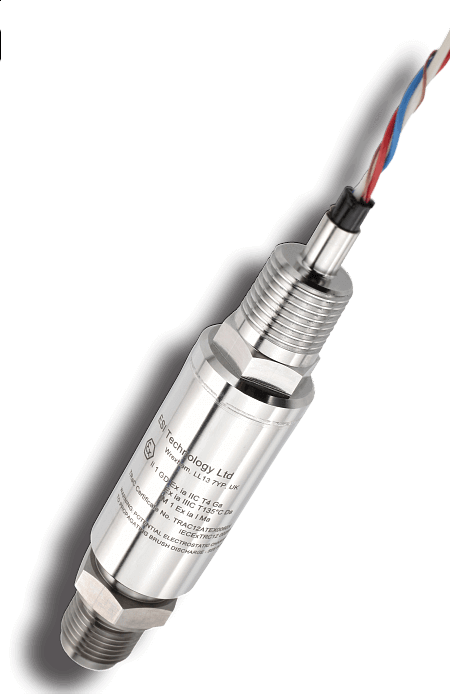

PR3900
Hazardous Area Pressure Transmitter
Intrinsically safe, silicon-on-Sapphire sensor, high accuracy option 0.1%, pressure ranges up to 1500 bar, choice of connections and threads, ATEX, IECEx and DNV GL certification available. -

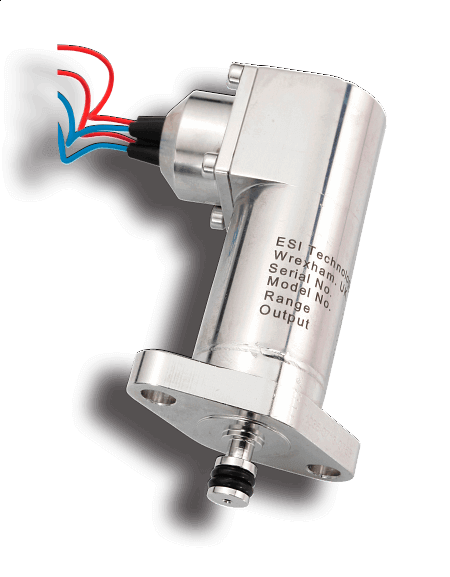

PR3913
Subsea Control Valve Pressure Transmitter
Subsea control valve pressure transmitter, Silicon-on-Sapphire sensor, high accuracy option 0.1%, pressure ranges up to 1000 bar, 4-20 mA output, choice of connections and threads. ATEX/IECEx certification available. Hyperbaric testing, Environmental Stress Screening (ESS) and comprehensive document packaging. -
PR3914
Subsea Pressure Transmitter
Deep immersion subsea pressure transmitter, Silicon-on-Sapphire sensor, high accuracy option 0.1%, pressure ranges up to 2,000 bar, 4-20 mA output, choice of connections and threads. Hyperbaric testing, Environmental Stress Screening (ESS) and comprehensive document packaging. -
PR3915
Dual Redundant Subsea Pressure Transmitter
Dual redundant subsea pressure transmitter, Silicon-on-Sapphire sensors, high accuracy option 0.1%, pressure ranges up to 1,000 bar, 4-20 mA output, choice of connections and threads, ATEX/ IECEx certification available. Hyperbaric testing, Environmental Stress Screening (ESS) and comprehensive document packaging. -
PR3920
Differential Subsea Pressure Transmitter
Differential subsea pressure transmitter, Silicon-on-Sapphire sensors, high accuracy option 0.1%, pressure ranges up to 50 barDP, 4-20 mA output, choice of connections and threads, ATEX/ IECEx certification available. Hyperbaric testing, Environmental Stress Screening (ESS) and comprehensive document packaging. -
PR9000
Heavy Duty Pressure Transmitter
Heavy duty, Silicon-on-Sapphire sensor, high accuracy option 0.1%, pressure ranges up to 1500 bar, 4-20 mA output, choice of connections and threads, ATEX/IECEx certification available. -

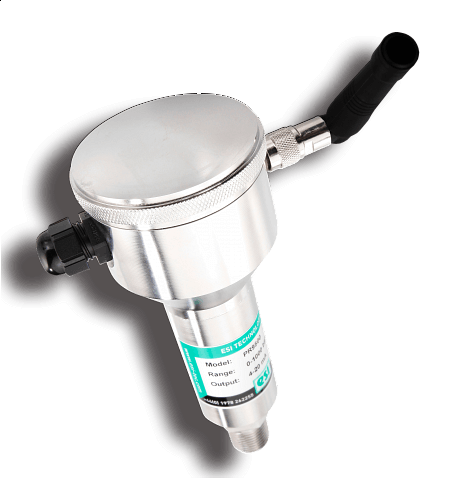

PR9500
Wireless Duty Pressure Transmitter
Wireless Heavy duty, Silicon-on-Sapphire sensor, high accuracy option 0.1%, pressure ranges up to 1500 bar, 4-20 mA output, choice of connections and threads, for use with RX9500 receiver. -

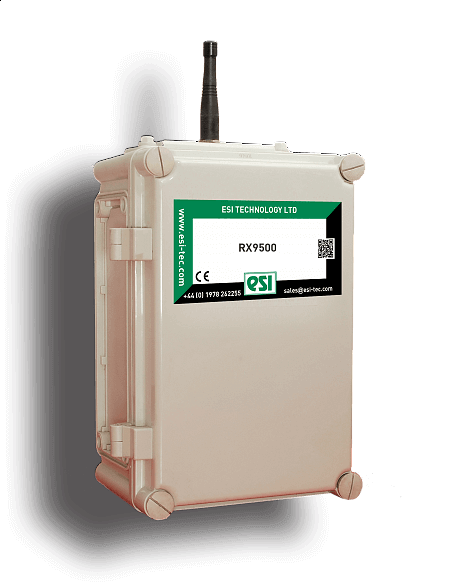

RX9500
FM Receiver
FM receiver for use with PR9500 wireless pressure transmitter. -
USB-CAB
Mini USB Cable
Mini USB cable for use with GS4200-USB and GD4200-USB pressure transducers. IP68 rated, available in 2m or 4.5m lengths. -
ADHT
High Temperature Adapter
High temperature adapter, up to 200°C, for use with pressures up to 400 bar -
DH3400
Desiccant Housing
Desiccant housing for use with submersible pressure transmitters. -

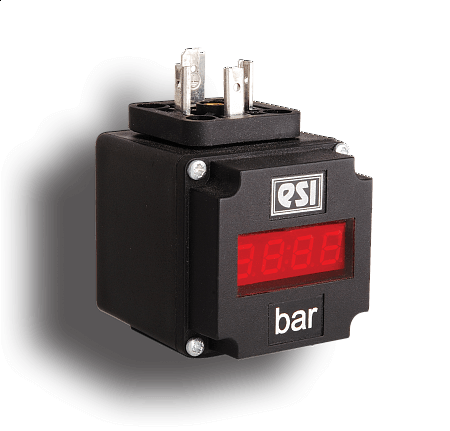

PM1000
Plug-in Display
LED plug-in display for use with pressure transmitters with 4-20mA output, DIN43650 connector. -
PM8000
Panel Meter
Range of panel meters with choice of formats.
